3-26 ENGINE
REMOVAL AND DISASSEMBLY

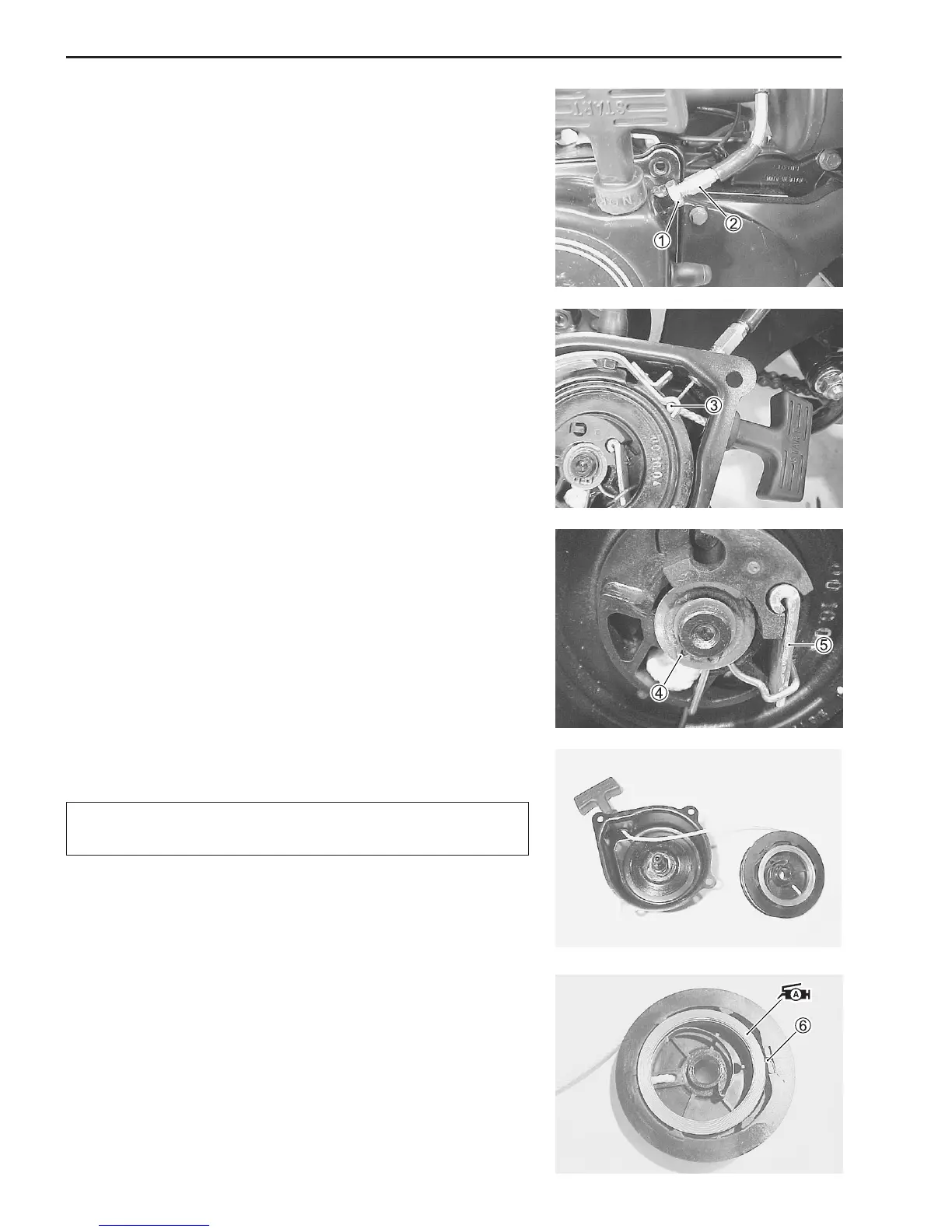

• Loosen the lock nut 1 and turn the adjuster 2 clockwise as far
as going in.
• Unhook the cable end piece 3 from the lever assembly.
• Remove the circlip 4 and washer.
• Remove the lever assembly 5 from the cover.
• Pull out the reel.
&
When removing and installing the reel, spiral spring will
expand. Protect your hands with gloves.
REASSEMBLY
• Hitch the one end 6 of the spring to the reel as shown in the
figure and install the spring in the reel.
• Apply SUZUKI SUPER GREASE “A” to the spiral spring.
For USA
( 99000-25030:SUZUKI SUPER GREASE “A”
For the others
( 99000-25010:SUZUKI SUPER GREASE “A”
• Turn the starter rope on the reel properly.
