5-10 CHASSIS

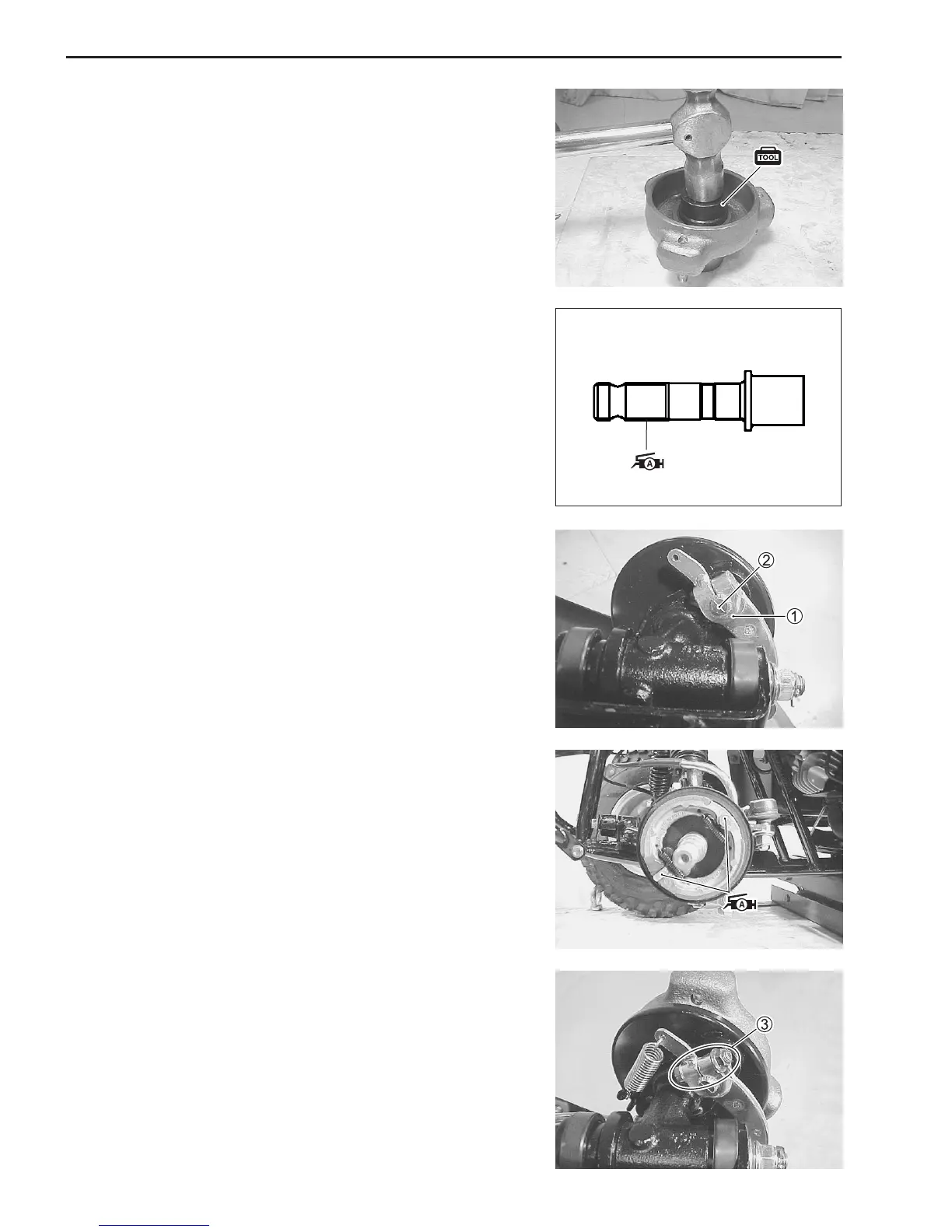

• Install the new dust seal using the special tool.
% 09924-84521: Bearing installer set
• When installing the brake camshaft, apply SUZUKI SUPER
GREASE “A” to the camshaft.
For USA
& 99000-25030: SUZUKI SUPER GREASE “A”
For the others
& 99000-25010: SUZUKI SUPER GREASE “A”
• When installing the brake cam lever on the camshaft align the
panch mark 1 of the cam lever with the slit 2 of the camshaft.
• Apply SUZUKI SUPER GREASE “A” to the brake cam and pin,
and install the brake shoes.
For USA
& 99000-25030: SUZUKI SUPER GREASE “A”
For the others
& 99000-25010: SUZUKI SUPER GREASE “A”
• Install the front wheel hub and spring.
• Tighten front brake cam lever nut to the specified torque.
! Front brake cam lever nut: 3.3 N
.
m (0.33 kgf
.
m, 2.43 lb-ft)
