Sycamore DNX-11 - 23 EIA Center Rack Mounting

DNX-11 Installation Rack Mounting
DOC-001-11001 (Rev. 006) 5 DNX Quick Install & Setup Guide
23” EIA Center Rack Mounting
1. Orient the center mounting brackets behind the DNX-11 mounting brackets as shown in
figure 3. Align the four small threaded holes of the center mounting brackets with the DNX-
11 mounting brackets.

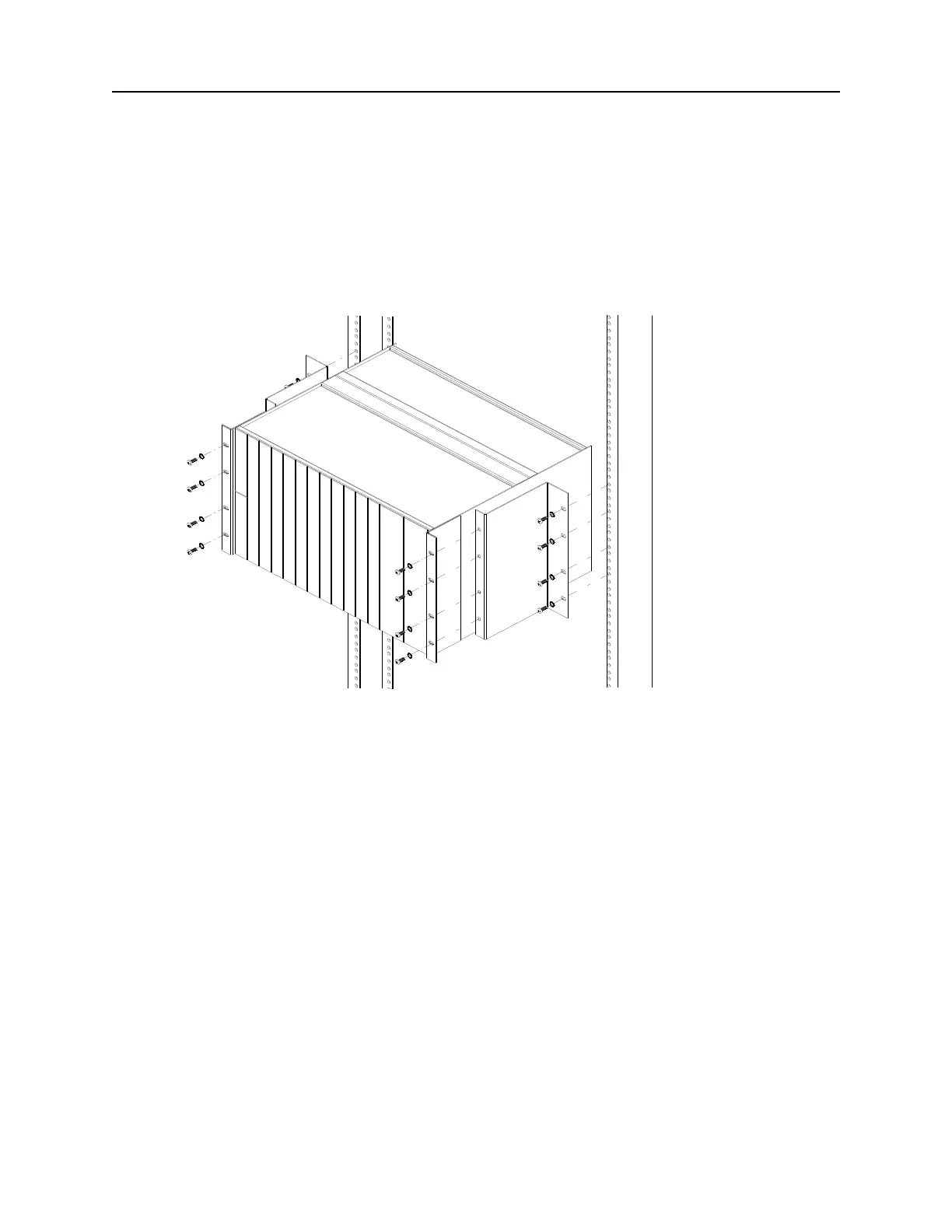

Figure 3: DNX-11 Center Rack Mounting.
2. Secure the DNX-11 unit to the center mounting brackets using thread-forming screws.
3. Slide the DNX-11 unit into the equipment rack.
4. Line up the oval holes of the center mounting brackets with the 23-inch equipment rack.
5. Secure the DNX-11 unit in place using #10-32 thread-forming screws. The center, not the
front, will be resting on the equipment rack.
Make sure you leave enough space above the DNX unit for the N+1 Protection Switch to reside,
approximately 3U high.
