Grounding via Grounding Strap
Note: This is the most reliable method of grounding the PSX-5300.
1. Securely mount the PSX-5300 directly above the DNX-11 in the equipment rack as shown
in Figure 23.
2. Using two #10-32 screws and external-toothed lockwashers (provided), connect a
grounding strap lug to the grounding points near the power terminal block as shown in
Figure 24.

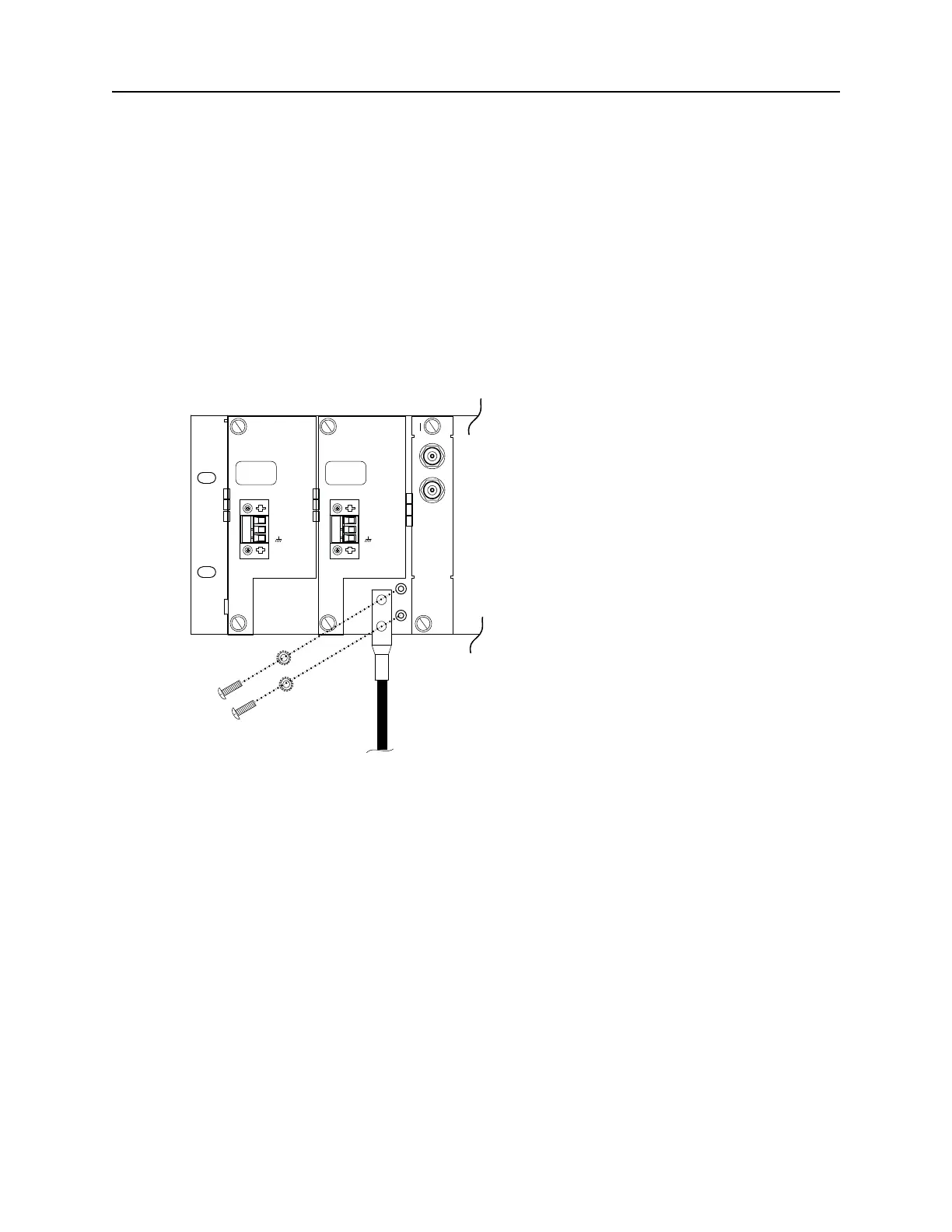

Figure 24: Grounding via Grounding Strap
DC PO WER
+
-
WARNI NG
Re mov e P ow er Ca bl e
Before Removing M odule
FU SE: F 2A - 250VAC
DC PO WER
+
-
WARNI NG
Re mov e P ow er Ca bl e
Before Removing Module
FU SE: F 2A - 250VAC
OUT TX
RX
BB-E/R
Grounding Strap
External-Toothed
Lockwashers
#10-32
Screws
