Sycamore DNX-11 - Talk Battery & Signal Battery Fuses

DNX-11 Installation DNX-11 DC Power
DOC-001-11001 (Rev. 006) 19 DNX Quick Install & Setup Guide
Talk Battery & Signal Battery Fuses
The talk battery and signal battery fuses on this model are both 2A, 250V Delayed Action (Slo-
Blo) fuses. To access the fuses, use a small screwdriver and unscrew the cover 1/4 turn
counter-clockwise. The cover should pop out, and the fuse can then be removed (see Figure
14).

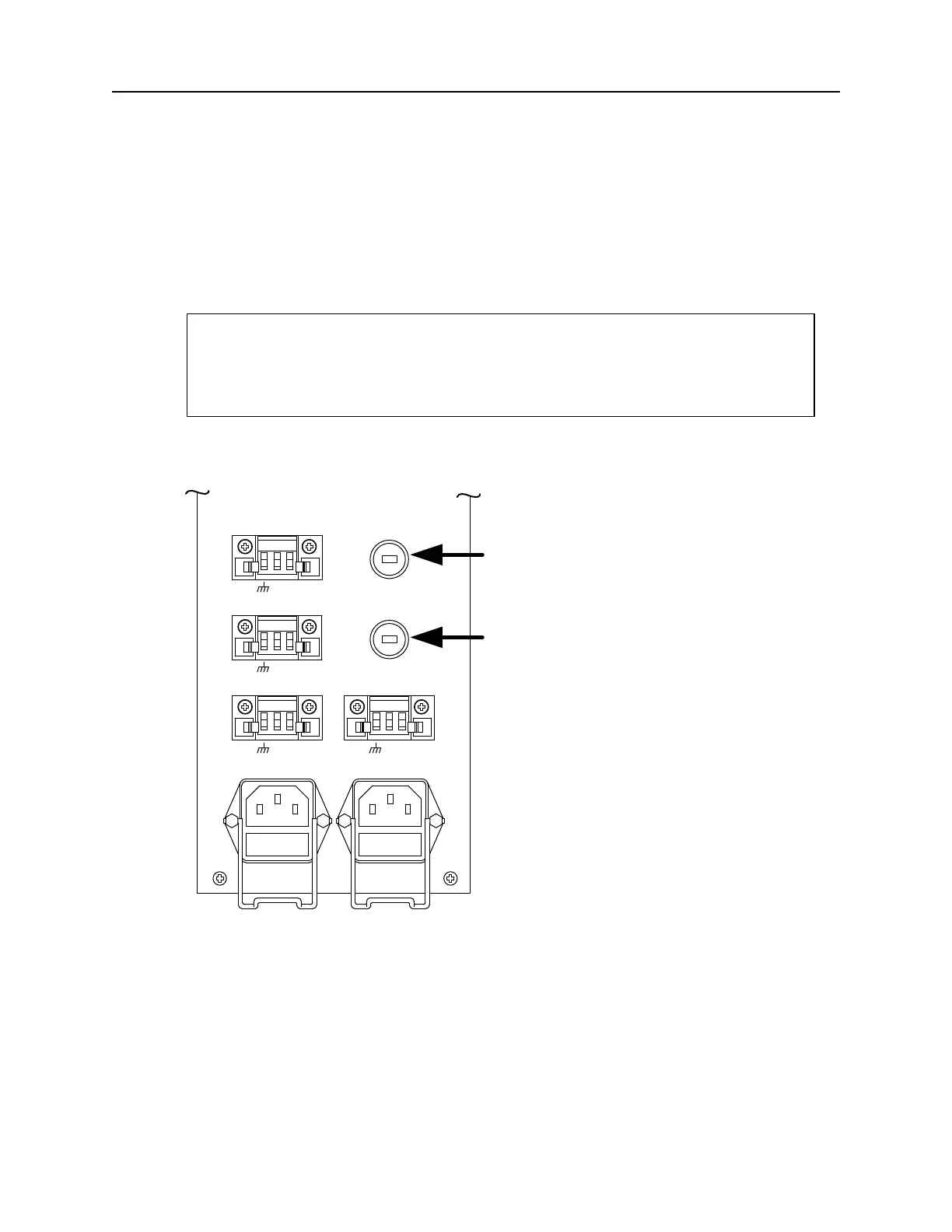

Figure 14: Talk Battery & Signal Battery Fuse Locations.
WARNING
Power must be disconnected before attempting to remove/replace fuses.
For continued protection against risk of fire, replace the fuse only with a fuse
of the same type and rating: 2A, 250V, Delayed Action (Slo-Blo).
+
+
+
+
-
-
-
-
+
+
-
-
+
+
-
-
TALK BATTERY
TALK BATTERY
SIGNAL BATTERY
SIGNAL BATTERY
DC POWER SLOT #2
DC POWER SLOT #1
AC POWER SLOT #2
AC POWER SLOT #1
Fuse Locations
(Unscrew ¼ T urn)
