12. COOLING SYSTEM
12-9
Check any wear and damage of the mechanical
seal and inside seal.
Caution
The mechanical seal and inside seal must be
replaced as a unit.

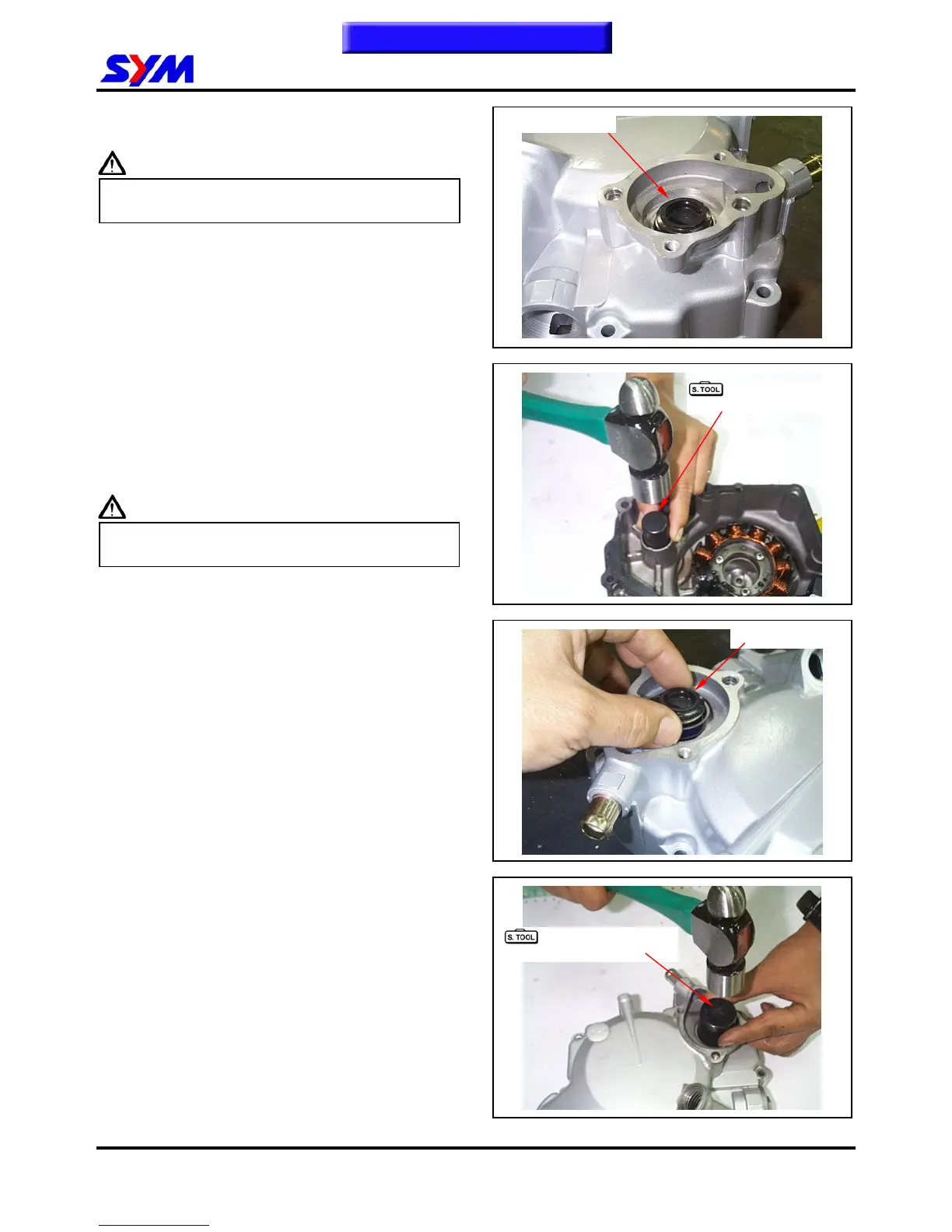

Replacement of Mechanical Seal
Remove the inside bearing by inner bearing puller.
Drive the mechanical seal and inner seal out of the
right crankcase.
Special tools:
Tool number：SYM-6204024
Tool name：Inner bearing puller.
Tool number：SYM-9100100
Tool name：Inner bearing puller.Water pump
bearing driver
Caution
Replace a new mechanical seal after removing
it.
Apply a coat of sealant to the mating surfaces of
the right crankcase before installing the new
mechanical seal.
Install the mechanical seal onto the right
crankcase.
Special tools:
Tool number：SYM-1721700-H9A
Tool name：Water pump mechanical seal driver
Mechanical seal
Mechanical seal
Water pump mechanical
seal driver
Water pump bearing
driver
