12. COOLING SYSTEM
12-10

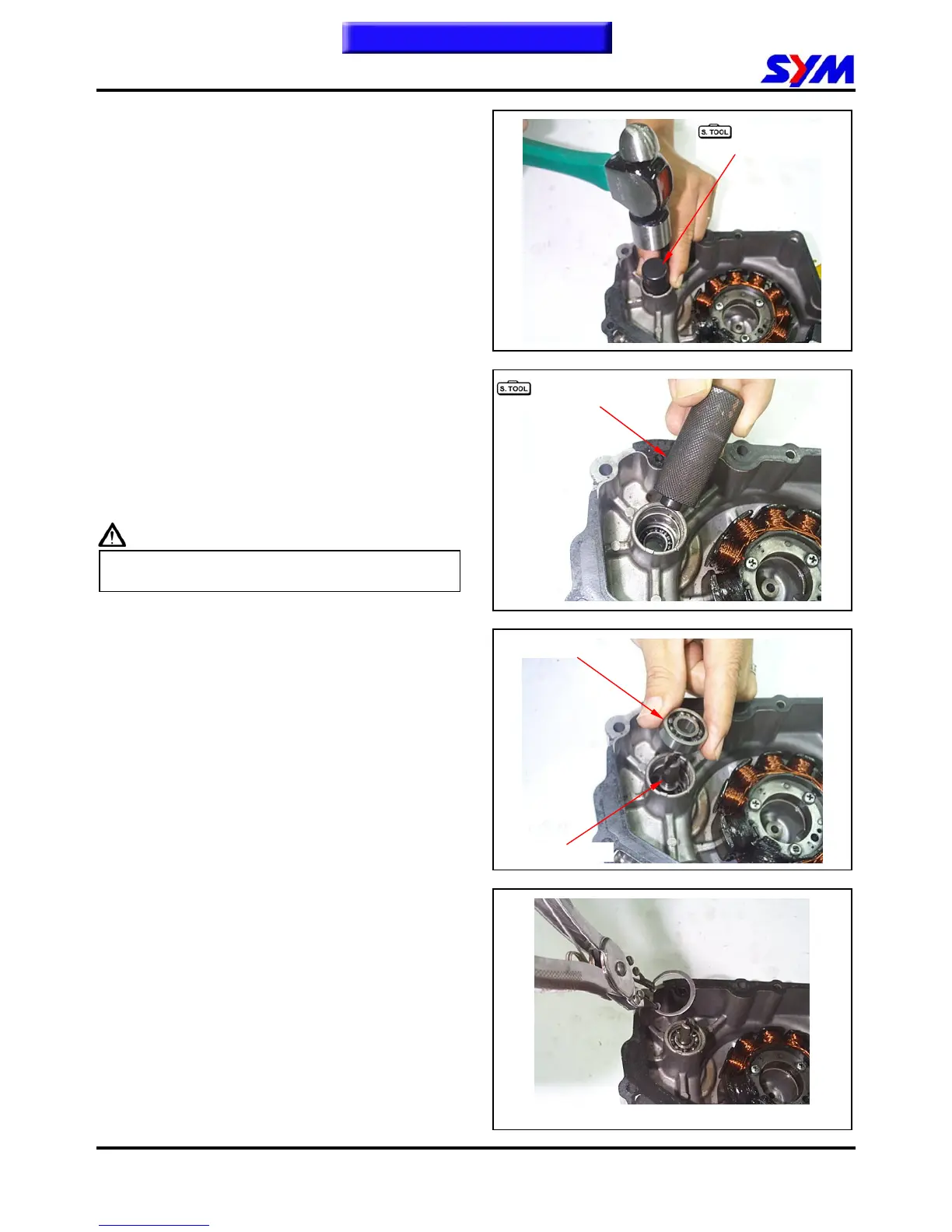

Install the new inner seal onto the right crankcase.
Special tools:
Tool number：SYM-9120500-H9A
Tool name：Water pump oil seal driver(inner).
Install a new outside bearing to the right
crankcase cover.
Special tools:
Tool number：SYM-9100100
Tool name：water pump bearing driver 6901
Caution
Do not reuse old bearing. It must be replaced
with a new one once it has been removed.
Mount the water pump shaft and the inner bearing
to the right crankcase cover.
Install the cir clip to hold the inner bearing.
Inner bearing
Water pump shaft
Water pump bearing
driver (6901)
Water pump oil seal
driver (inner)
