ALGORITHMS
M5AMBIEN
Rev 1.2 Page 33
FMC off, on Use the Fletcher-Munson corrected fade
pattern by setting FMC to ‘
on
’.
PAGE 6:
MS-INPUT -180deg - off - 180deg MS rotation of the input signal. Can be
used for L/R conversion of a MS coded
signal or for coding a L/R signal to M/S
signal, both when set at +45. Adjusting
the angle from +45 downward toward
‘off’ reduces the S-level, whereas
increasing the angle in the range +45
toward +90 decreases the M-level.
MS-OUTPUT -180deg - off - 180deg MS rotation of the output signal. (After
insert). Can be used for L/R conversion
of a MS coded signal or for coding a L/R
signal to M/S signal, both when set at
+45.
PAGE 7:
BALANCE -3.0 dB to +3.0 dB Fine adjustment of the balance between
left and right channel in 0.1 dB steps.
MONO 0 % - 100 % Increases the center focusing of the
signal by adding L to R, R to L leakage.
LR-SWAP off, on Swaps the left and right channel.
PHASE L+R+, L-R+, L+R-, L-R- Adjust the phase between left and right
channel.

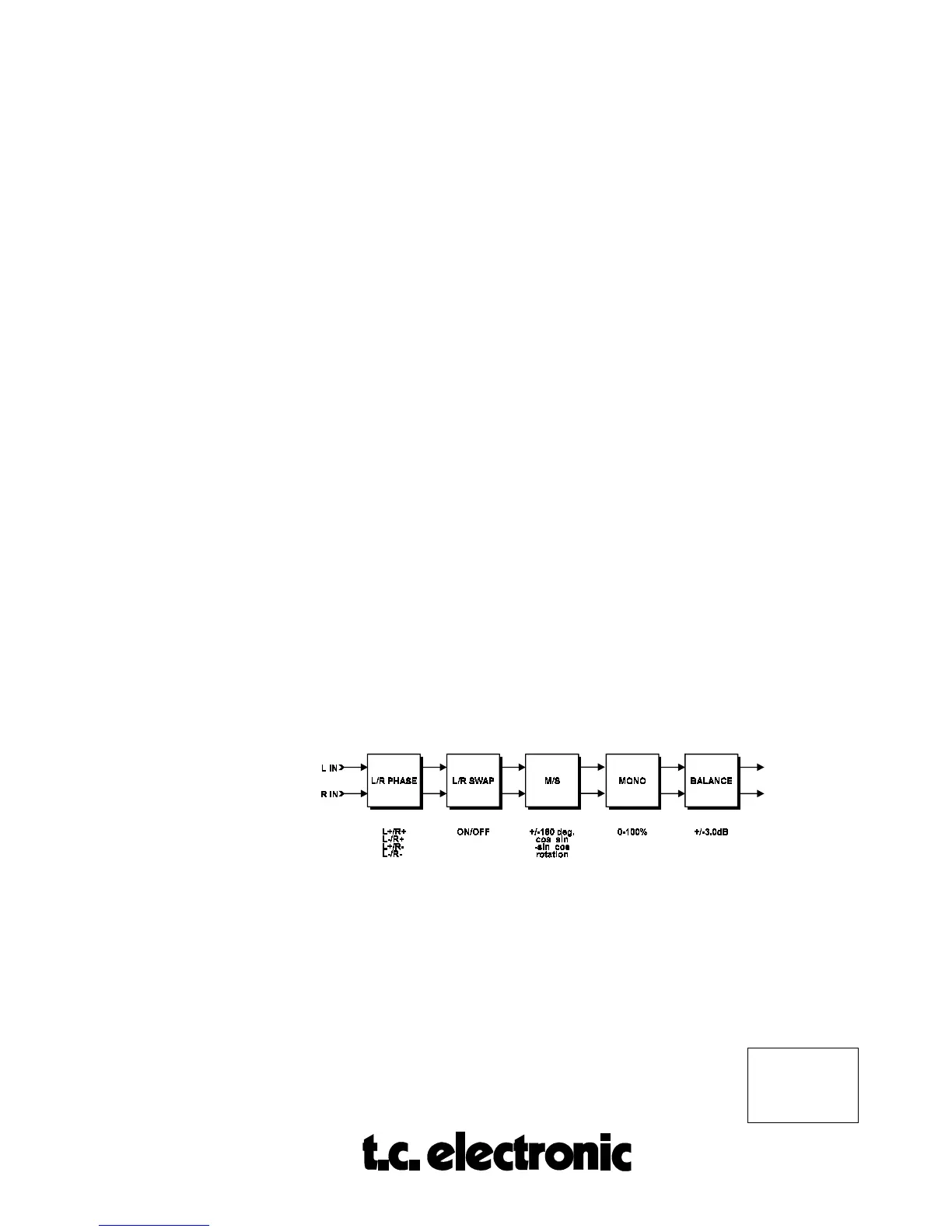

Fig. Signal flow of the input stereo adjustment parameters.
PAGE 8:
L-DELAY 0.0 ms - 300.0ms Individual delay for left channel. Can be
adjusted in 0.1 ms steps.
