ALGORITHMS
M5ALGOIN
Rev 1.7 Page 37
DELAY-2 M5000
The DELAY-2 algorithm is an advanced but easy to handle true stereo digital delay line. With
cross feedback section and modulation section, this delay algorithm is capable of doing

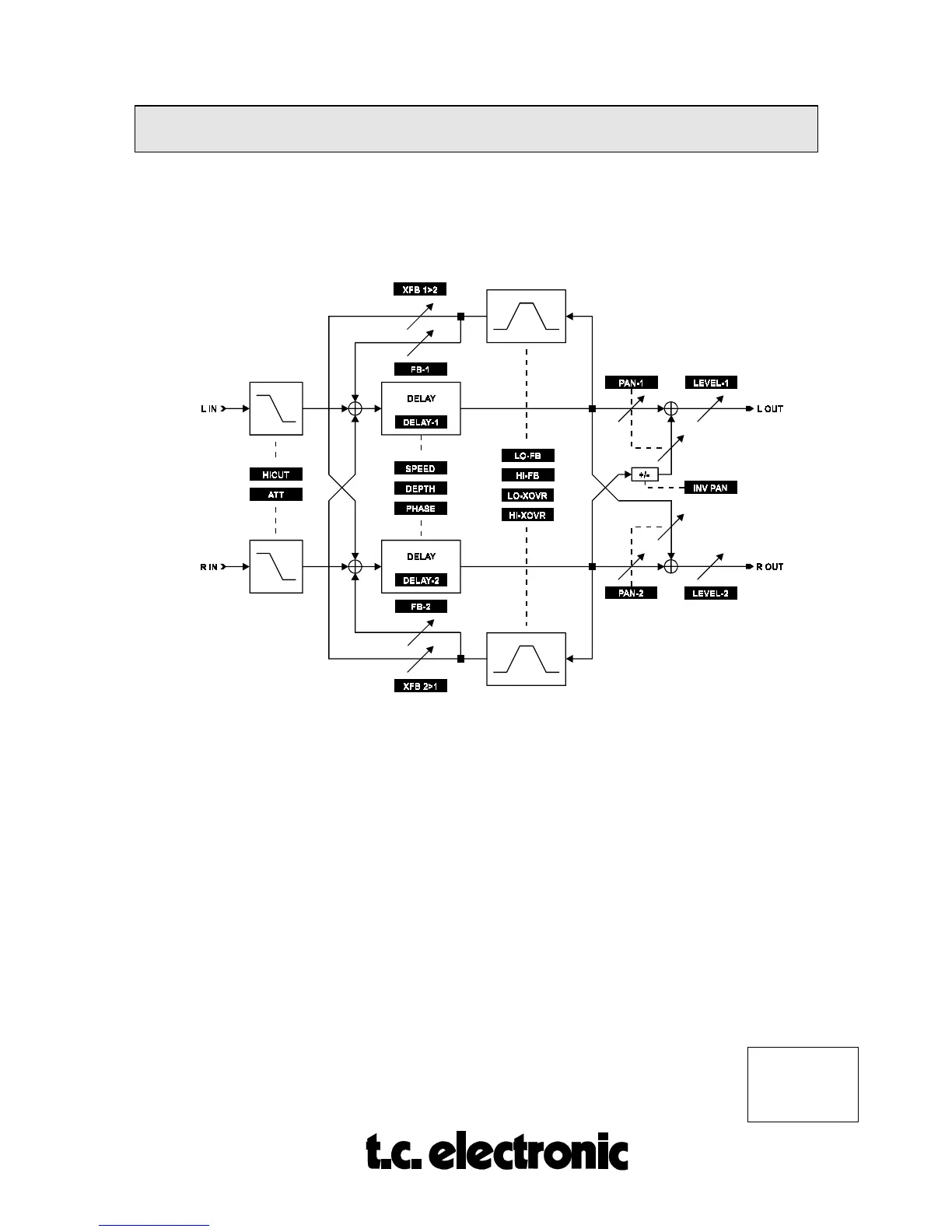

anything from smooth spatial expanding to the wildest echo effects. The diagram below is an
addition to the signal flow diagram found in the "BASIC ALGORITHMS"-module, page 2.
fig. 1
EDIT PARAMETERS
PAGE 1:
MIX 0 - 100 % Sets the mix between dry and wet signal.
100 % = effect signal only. Mix can be
set to 100 % globally in the G-LEVELS-
menu under UTILITY. Set MIXMODE
WET=MAX
and all dry signals are
"killed" regardless of preset mix settings.
INLEV off - 0.0 dB. Sets the level of the input to the program
in 0.5 dB steps. The function of the
control is to maximize dynamic range.
Please note that this control is positioned
