ALGORITHMS
M5DYN
Rev 1.1 Page 5
TAPFAC M5000
This is a brief description of the parameters in the TAPFAC algorithm, which is short for 'Tap
Factory'. With this 'factory' you are able to control up to (the very first) 18 reflection taps
enabling you to produce you own unique reflection pattern. Each tap can be individually
adjusted with parameters like; delay, level and pan. With 18 taps, all with different settings,
you can create the most complex room simulations such as stairways, chimneys, outdoor
soundfields etc.

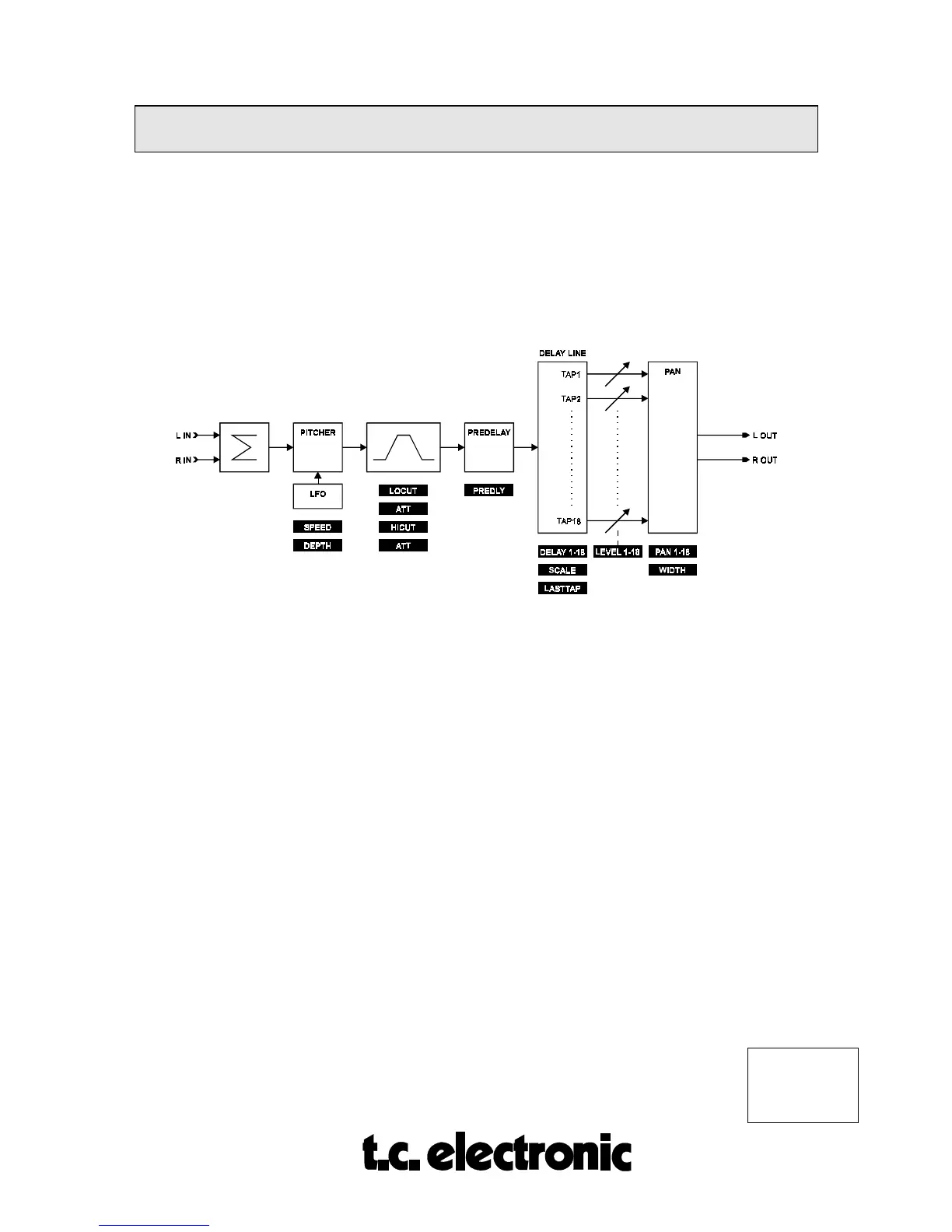

The diagram below is an addition to the signal flow diagram found in the "BASIC
ALGORITHMS" module, page 2.
EDIT PARAMETERS:
MIX 0 - 100 % Sets the mix between dry and wet signal.
100 % = effect signal only. Mix can be
set to 100 % globally in the G-LEVELS-
menu under UTILITY. Set MIXMODE
WET=MAX
and all dry signals are
"killed" regardless of preset mix settings.
INLEV off - 0.0 dB. Sets the level of the input to the
algorithm in 0.5 dB steps. The function
of the control is to maximize dynamic
range. Please note that this control is
positioned after the input PPM meter,
and will not affect the input PPM
reading, also if using an analog input,
make the analog input adjustment in the
G-LEVELS-menu under UTIL before
setting this control. However, if the red
overload LED flashes, turn down INLEV
a couple of dB's. The control does not
affect the bypassed signal level.
