3-26
Fig. 3.85
Fig. 3.88
Fig. 3.87
Fig. 3.86

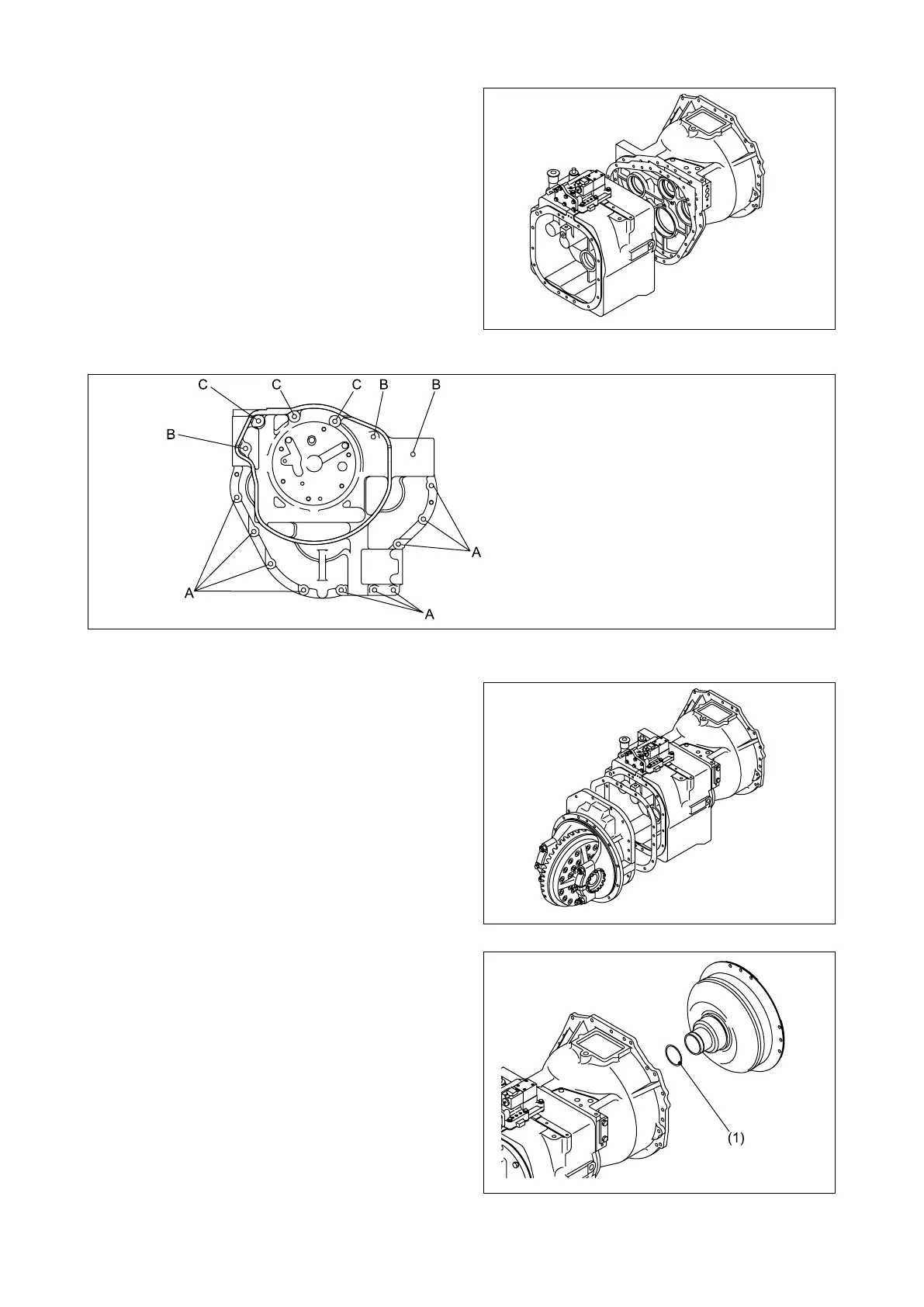

⑤ With a gasket, install the torque converter
housing on the transmission case.
Note: Pay attention to the engagement of the
gears. There are three types of bolts with
different lengths. For their respective
locations, see Fig. 3.86.
A : 30 mm [1.18 in] long, 10 pcs.
B : 70 mm [2.76 in] long, 3 pcs.
C : 90 mm [3.54 in] long, 3 pcs.
⑥ With a gasket, install the differential on the
transmission case. (for 43E-25 only)
Note: For the 44E-25, apply liquid packing
(THREEBOND 1216E or equivalent) to
the mating surfaces.
⑦ Install the torque converter on the torque
converter housing.
Note: Make sure that the torque converter has a
seal ring (1) on its boss.
