3-54
Fig. 3.176
Fig. 3.179
Fig. 3.178

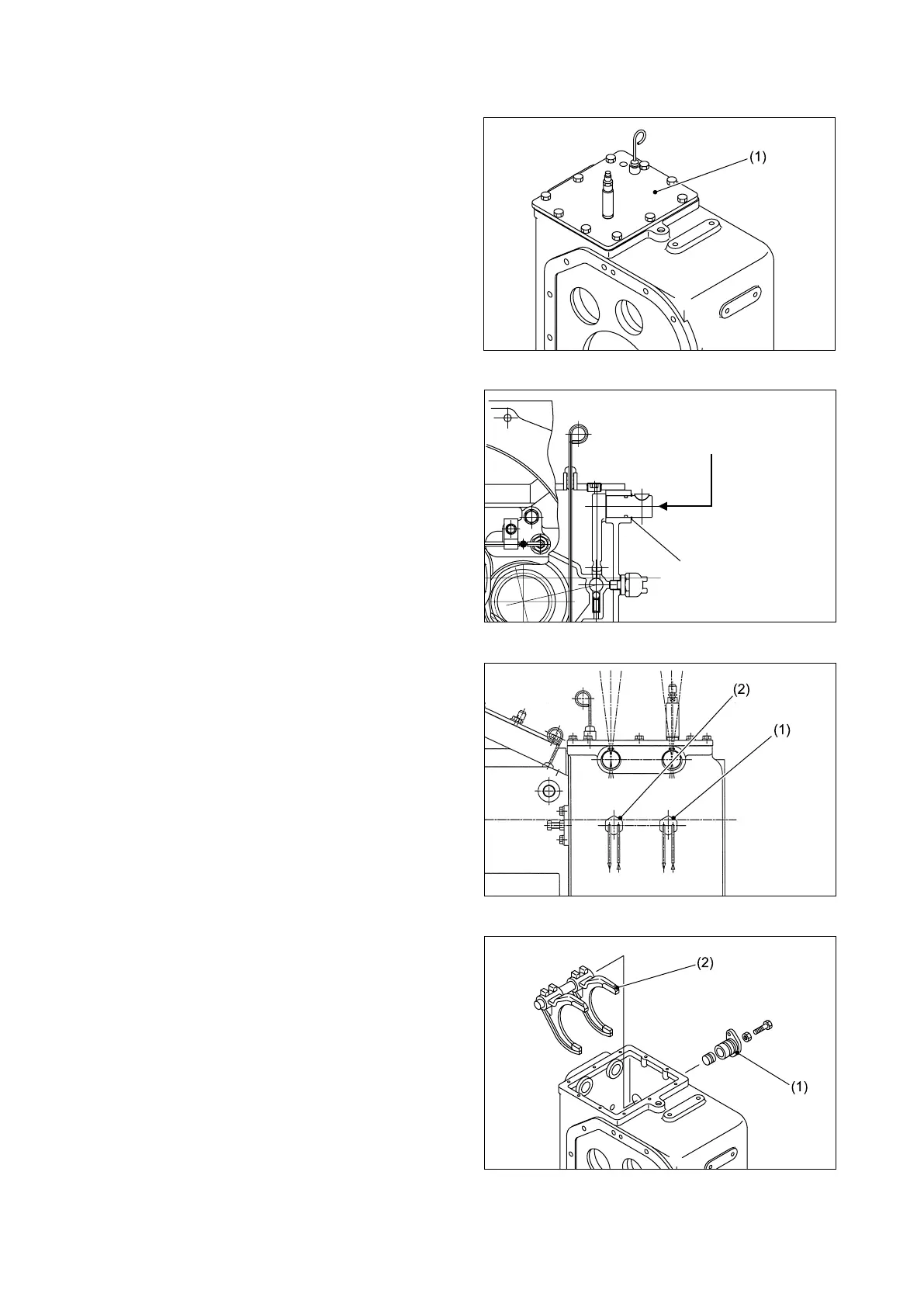

■DISASSEMBLING TRANSMISSION
① Remove the transmission case cover (1).
② Remove the fwd/rev shift lever and 1st/2nd
speed shift lever.
③ Remove the neutral switch (1) and reverse
switch (2).
④ Remove the shift rod support (1) and remove
the shift fork assembly (2).
Fig. 3.177
Push in, turn about 45
degrees, and push in again.
SNAP RING
