TCM FD35C9 - Page 169

3-55

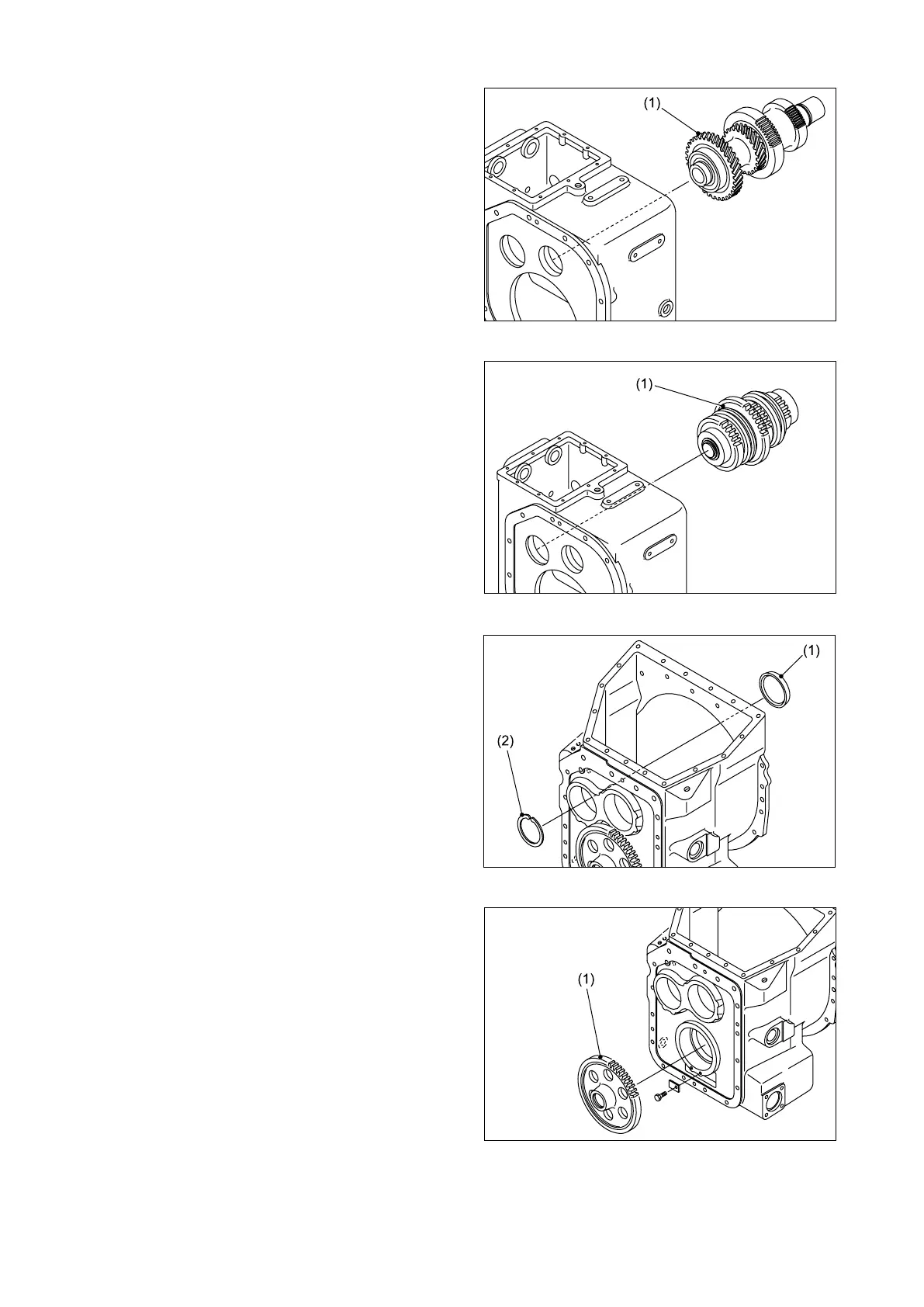

Fig. 3.180
Fig. 3.183
Fig. 3.182
Fig. 3.181
⑤ Remove the input shaft assembly (1).
⑥ Remove the main shaft assembly (1).
⑦ Remove the main shaft cover (1) and snap
ring (2) from the clutch housing.
⑧ Remove the output gear (1) from the clutch
housing.
