3-87
Fig. 3.275
Fig. 3.278
Fig. 3.277
Fig. 3.276

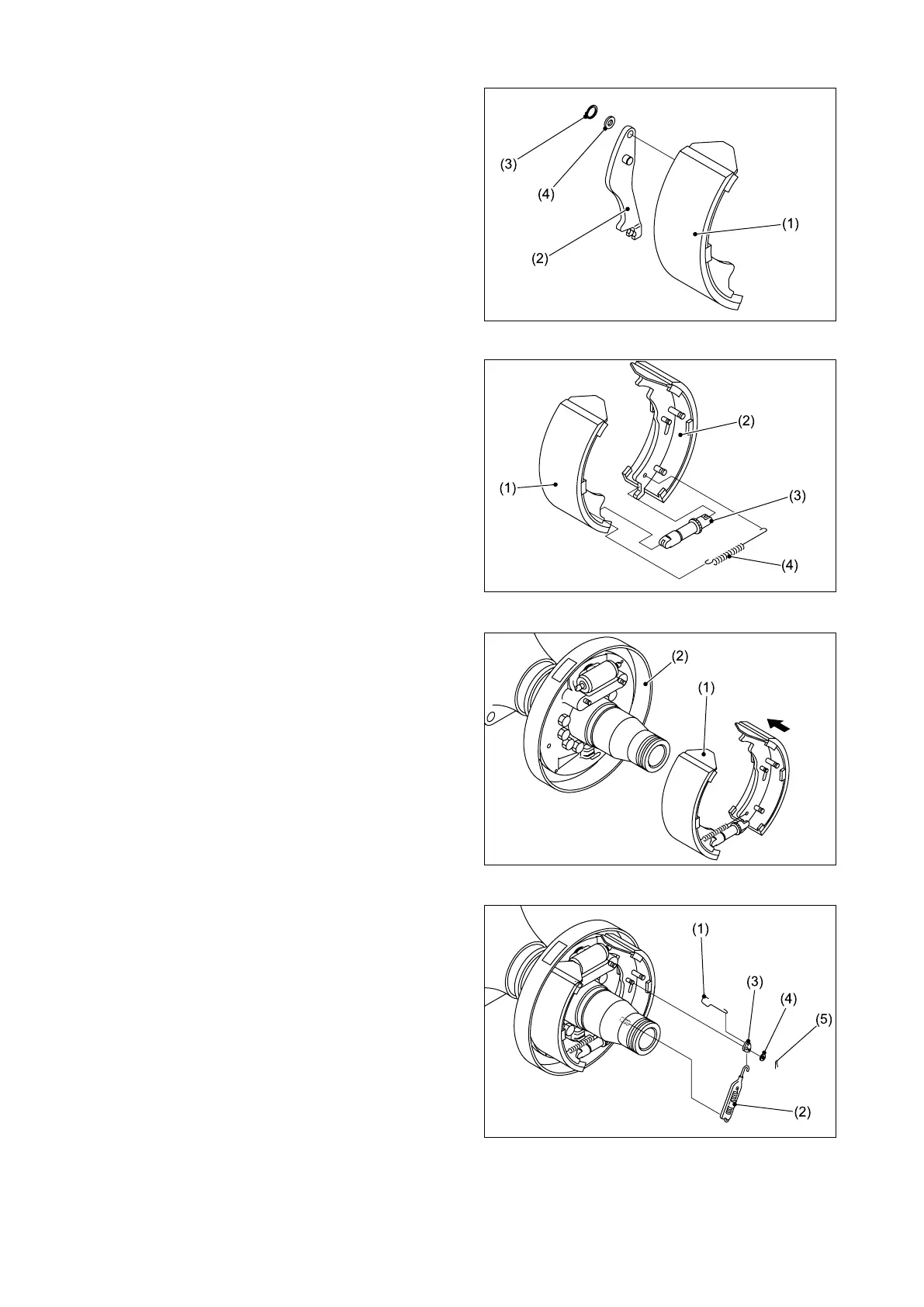

⑤ Install the brake lever (2) to the primary
shoe (1), and secure with the retainer (3) and
washer (4).
⑥ Install the adjuster (3) and spring (4) that
connect between the primary shoe (1) and
secondary shoe (2).
⑦ Install the primary and secondary shoe
assembly (1) onto the backing plate (2).
⑧ Install the linkages (1 and 2), lever (3), washer
(4), and split pin (5).
