3-88

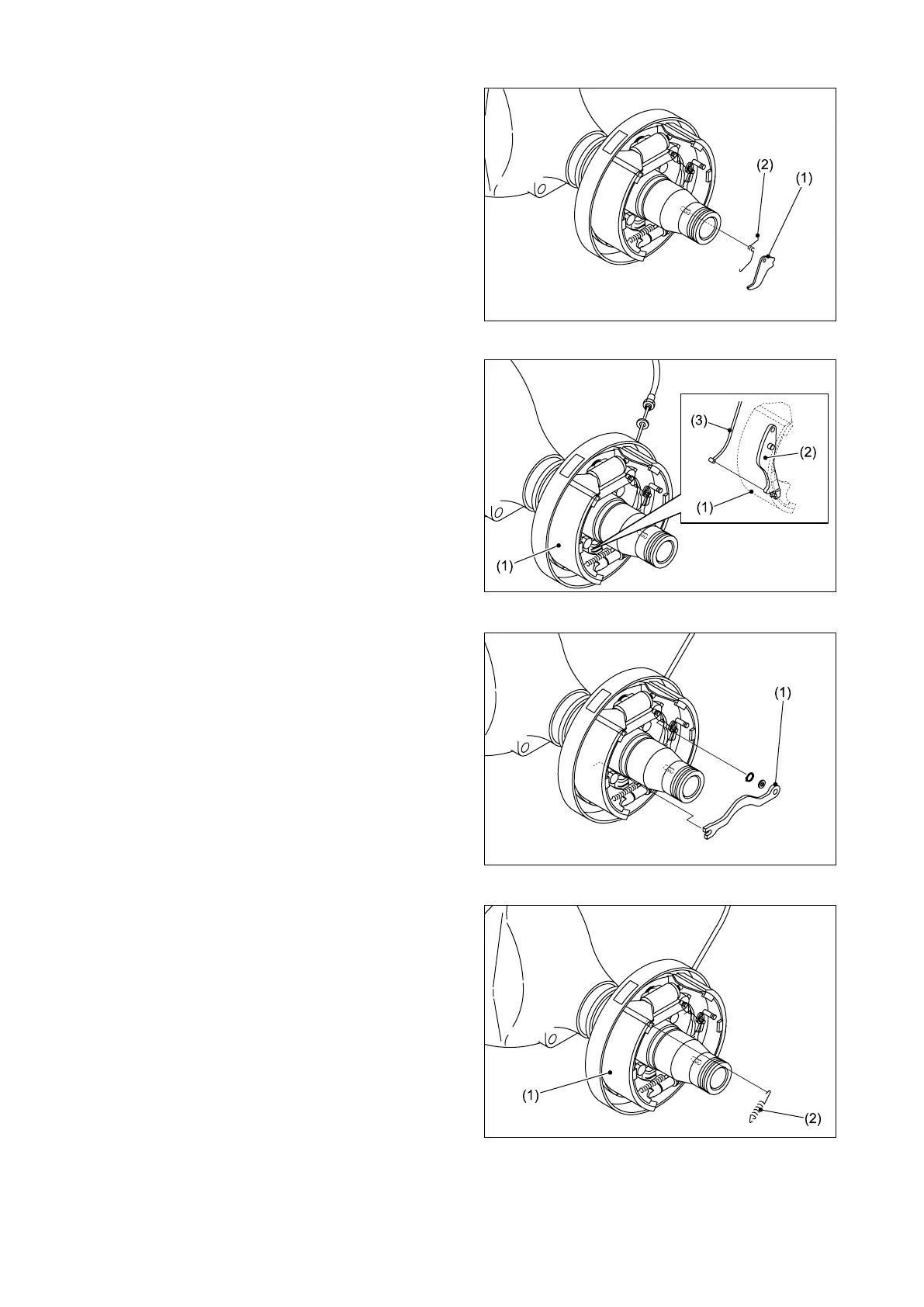

Fig. 3.279
Fig. 3.282
Fig. 3.281
Fig. 3.280
⑨ Install the adjuster lever (1) and spring (2)
onto the backing plate.
⑩ Connect the parking cable (3) to the parking
lever (2) on the primary shoe (1).
⑪ Install the strut (1).
⑫ Install the return spring (2) on the primary
shoe (1).
