Menu: Edit 󰘰le
 2D code
• DataMatrix/QRCODE / MQRCODE

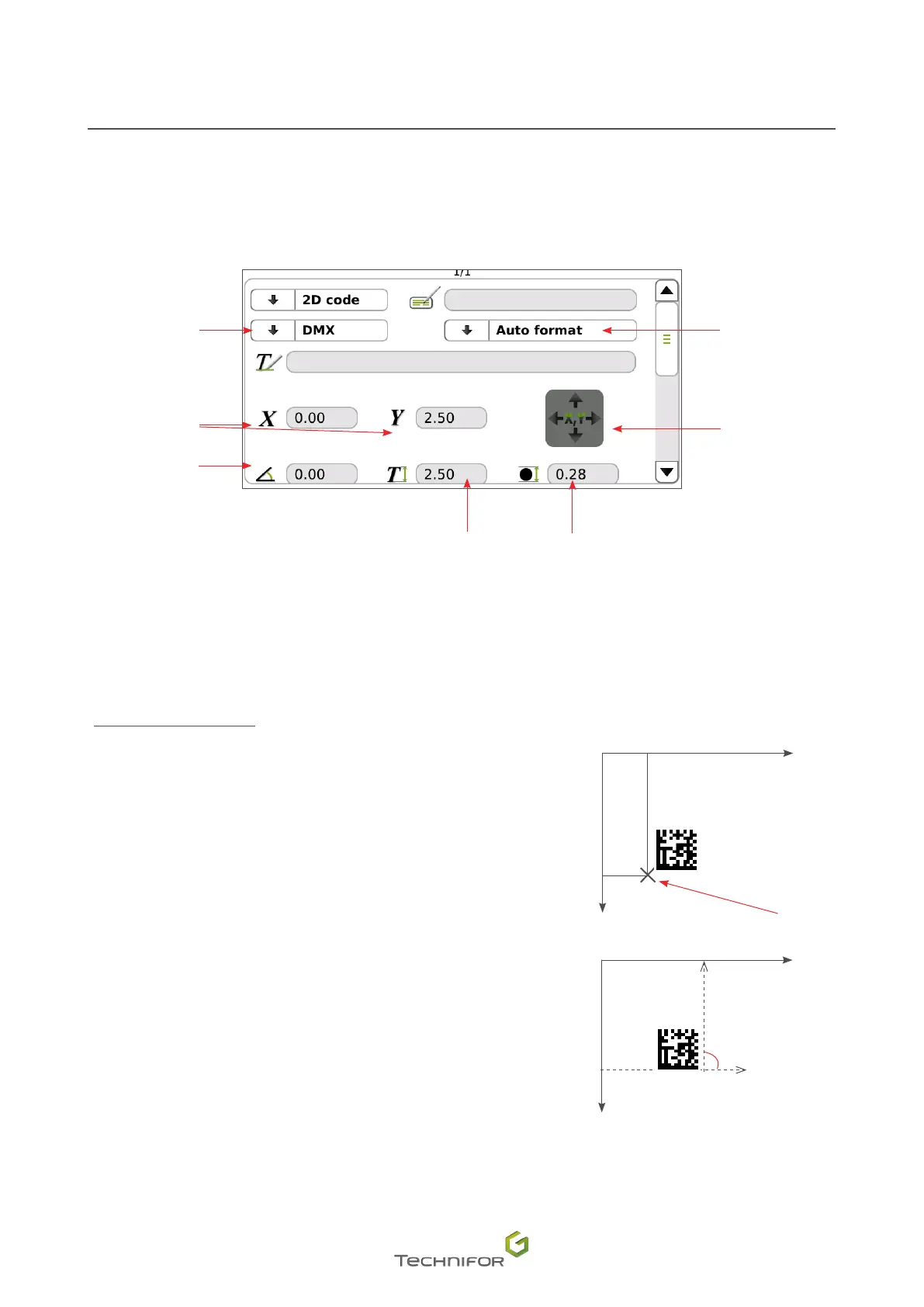

Used to mark DataMatrix codes. The screen below appears:
2
6
3
7
1
5
4
1. Code type
2. X-Y coordinates
3. Angle in degrees
4. Code size (height)
5. Cell size
6. Positioning aid arrow
7. Matrix format (by default: automatic mode)
Code position and size:
X-Y coordinates: the values entered in the X and Y 󰘰elds determine
the start position of the marking.
1. The X represents the start marking point (X-Y coordinates).
0
X
Y
10
50
1
Angle: the value entered in this 󰘰eld determines the angle in degrees
along which the code is marked.
1. Angle in degrees
0
X
1
Y
