50
M_T08_EN_B

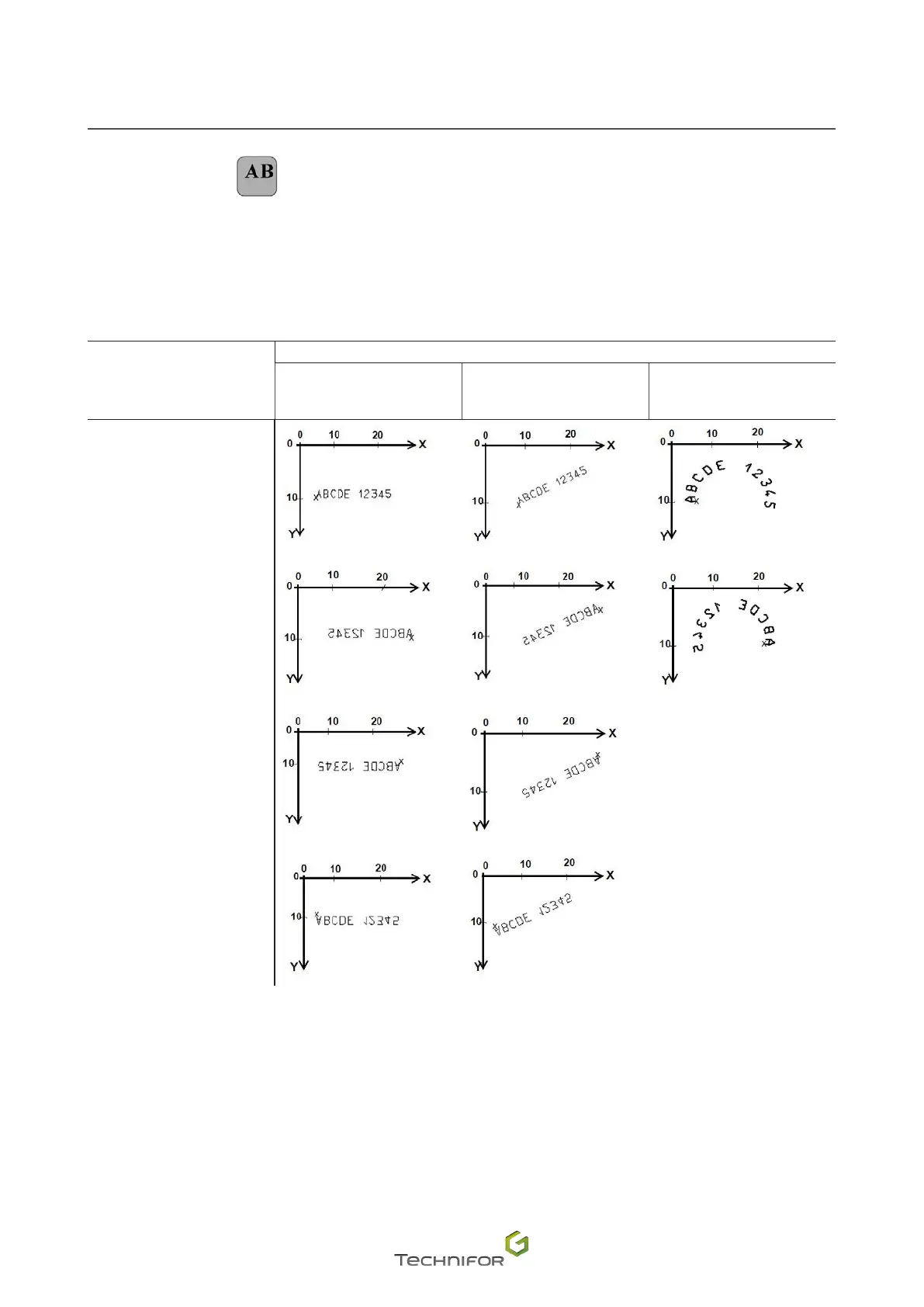

Menu: Edit le
•
Marking effects
Several marking directions are proposed in order to adapt marking to the specicities of certain parts.
In radial mode, only the normal and mirror eects are available.
Marking obtained:
Markingeects
Result
Linear marking
Angle: 0°
Linear marking
Angle: 35°
Radial marking
Centering
Angle: 90°
Normal
Mirror: symmetry along Y
Inverted: symmetry along
X-Y
Reected: symmetry along
X
The X represents the start marking point (X-Y coordinates).
49
51
Table of Contents
Table of Contents
2
Foreword
6
Appreciation
6
Information
6
Legal Notices
7
Introduction
8
General Characteristics of the Program
8
Program Functions
8
X84; Customization
8
X84; Type of Blocks
8
X84; Character Styles
9
X84; Marking Management
9
X84; Adjustable Settings
9
X84; Various Functions
9
X84; User Memory
10
X84; Exchange of Files Via USB Key
10
Character Encoding
10
X84; Introduction
10
X84; UTF-8 Encoding
11
X84; Practical Consequences
12
Starting-Up the Program
13
Using the Touch Screen
14
Access to Certain Shortcuts Using the Keyboard
15
The Different Program Menus
16
X84; Main Menu
16
Definition of a Marking File
17
Z Axis Configuration
18
Menu: Marking
22
X84; Access to Certain Shortcuts Using the Keyboard
22
Marking "N Times
22
Infinite" Marking
24
Independent" Marking
24
Menu: Edit File
25
X84; Access to Certain Shortcuts Using the Keyboard
25
X84; Create a New Marking File
26
X84; Open the Last File Used
26
X84; Open an Existing File
26
Preparing a Marking Block
26
X84; Access to Certain Shortcuts Using the Keyboard
28
X84; Block Number
28
X84; Block Name (Label)
28
X84; Type of Marking
28
X84; Linear Marking
29
X84; Radial Marking
29
X84; Shapes
31
X84; 2D Code
33
X84; Rotary Device
35
X84; Z Axis (Standard or Optional, Depending on the Machine Type)
36
X84; Return to Origin / Z Axis Speed
38
X84; Functions
39
X84; Text to be Marked
40
X84; X-Y Coordinates
44
X84; Stylus Positioning
45
X84; Character Size
46
X84; Text Angle
46
X84; Marking Force
46
X84; Pause after a Block
47
X84; Character Font
47
X84; List of Available Fonts
47
X84; Compression
48
X84; Inclination
48
X84; Spacing
48
X84; Alignment
49
X84; Marking Direction
51
X84; Movement Speed
52
X84; Marking Speed
52
X84; Marking Quality (Depending on Version)
52
X84; Dot Density Per Millimeter
52
Edit" Menu Sub-Menus
53
X84; Copy/Paste a Block
53
X84; "Edit" Sub-Menu
54
X84; "Marking" Sub-Menu
54
X84; Save the File in Progress / Save as the File in Progress
58
X84; Activation / Deactivation of the Blocks
58
Functions
59
Add
59
CSV List
60
CSV Table
62
Delay
64
Dialog Yes/No
64
Fault
65
Goto
66
Offset
69
Var Branch
70
Var in
71
Var out
74
Var Set
74
Var XY
76
Write Line
77
Menu: File Management
78
File Management (Marking File(S), Logo(S), Csv, Fonts, Screenshot(S))
79
X84; Rename File(S)
79
X84; Delete File(S)
80
X84; Select All / Unselect All
80
X84; Export File(S) (USB Key)
80
USB Key: Data Importation
80
X84; Rename File(S)
81
X84; Delete File(S)
81
X84; Select All / Unselect All
81
X84; Add Folder
81
X84; Import File(S)
81
Menu: Settings
82
Menu: System
82
X84; Menu: System Information
83
X84; Menu: Backup
83
X84; Menu: Restore
83
X84; Menu: Update
84
X84; Menu: Factory Mode
85
Menu: Communication
86
X84; Menu: FTP Server
86
X84; Menu: Network Parameters
87
X84; Menu: Serial Port Parameters
87
Menu: Display
88
Menu: Maintenance
89
X84; Menu: Diagnosis
89
Menu: Marking Settings
90
Menu: Miscellaneous
94
X84; Menu: Language / Keyboard
95
X84; Menu: Date/Time Settings
95
X84; Menu: Security Mode
96
Menu: Variables
97
Menu: Counters
98
Menu: Variables
102
X84; Programming Within a Marking File
103
X84; Compiling a Series of Variables
104
Menu: Day Code(S)
104
X84; Year Variable (YS)
105
X84; Month Variable (MS)
105
X84; Day in the Month Variable (JS)
106
X84; Day of the Week Variable (DS)
106
X84; Hour Variable (HS)
107
Menu: Shift(S)
108
Menu: Hardware
110
Hardware
110
Use
111
Marking Process Flowchart
111
Initiation to Marking
112
X84; Step 2: Creating a Marking File
112
X84; Creating Marking Block # 2
115
X84; Step 3: Preview
117
X84; Step 4: Position the Part
117
X84; Step 5: Marking Simulation
118
X84; Step 6: Marking the Part
118
