73
M_T08_EN_B
Functions
Var in: use in a marking le

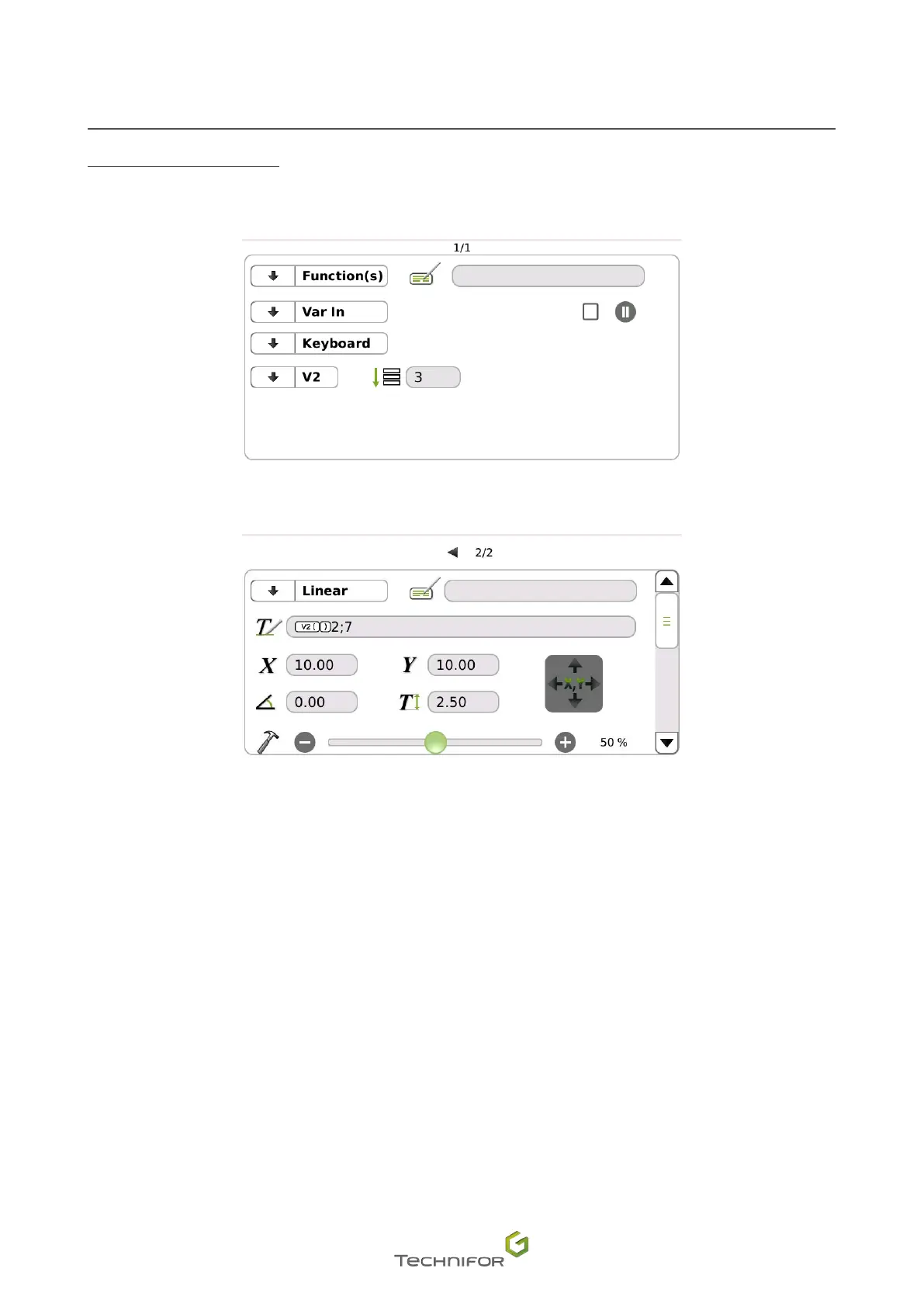

Example:
1 block:
2 block:
The text is saved in variable V2.
To
mark the
memorized content
in the
V2
variable, create
a linear
marking
block containing
the keyword
V2.
See: key words
Only the character string included between characters 2 and 7 is marked. See: Splitting a variable
A request for data acquisition is necessary each time the le is marked because the batch is set at 1.
