8.3 SLATS
TIGHTENING TORQUE OF EACH PAIR OF SELF-LOCKING NUTS: Tighten the rst self-locking
nut with a torque of 1.6 Nm (1.2 lbf-ft). Tighten the second self-locking nut with a torque of 1.6 Nm
(1.2 lbf-ft). Retighten the rst self-locking nut with a torque of 1.6 Nm (1.2 lbf-ft).

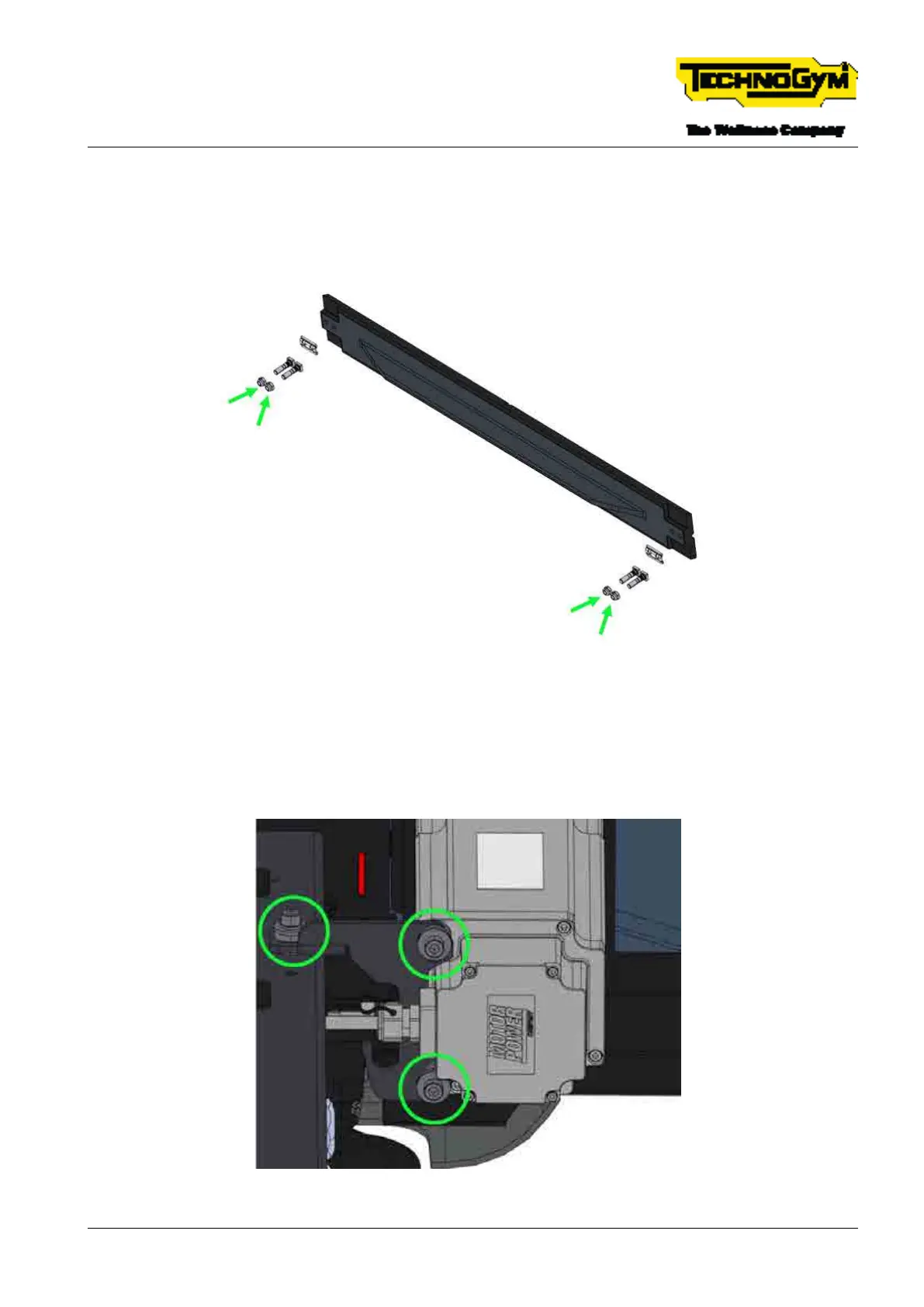

Fig. 56
8.4 BELT MOTOR
TIGHTENING TORQUE of the screws that fasten the belt motor to the frame: apply Loctite 243 on
the screw thread. Afterwards, tighten the screw with a torque of 9 Nm (6.6 lbf-ft).
Fig. 57
