3.9 THE DISPLAY (HIGH KIT)
The High Kit (HK):
• receives the power supply from the STIWI drive;
• communicates the set training proles to the drive;
• receives information from the drive relative to the absence of the user on the equipment;
• communicates with the Low Kit via a protocol based on the physical layer RS-485 Half
Duplex, 115.2 KBoud;
• is connected and receives information from the stop button and from the emergency de-
vice.
3.9.1 TECHNOGYM LIVE 27”
Fig. 12

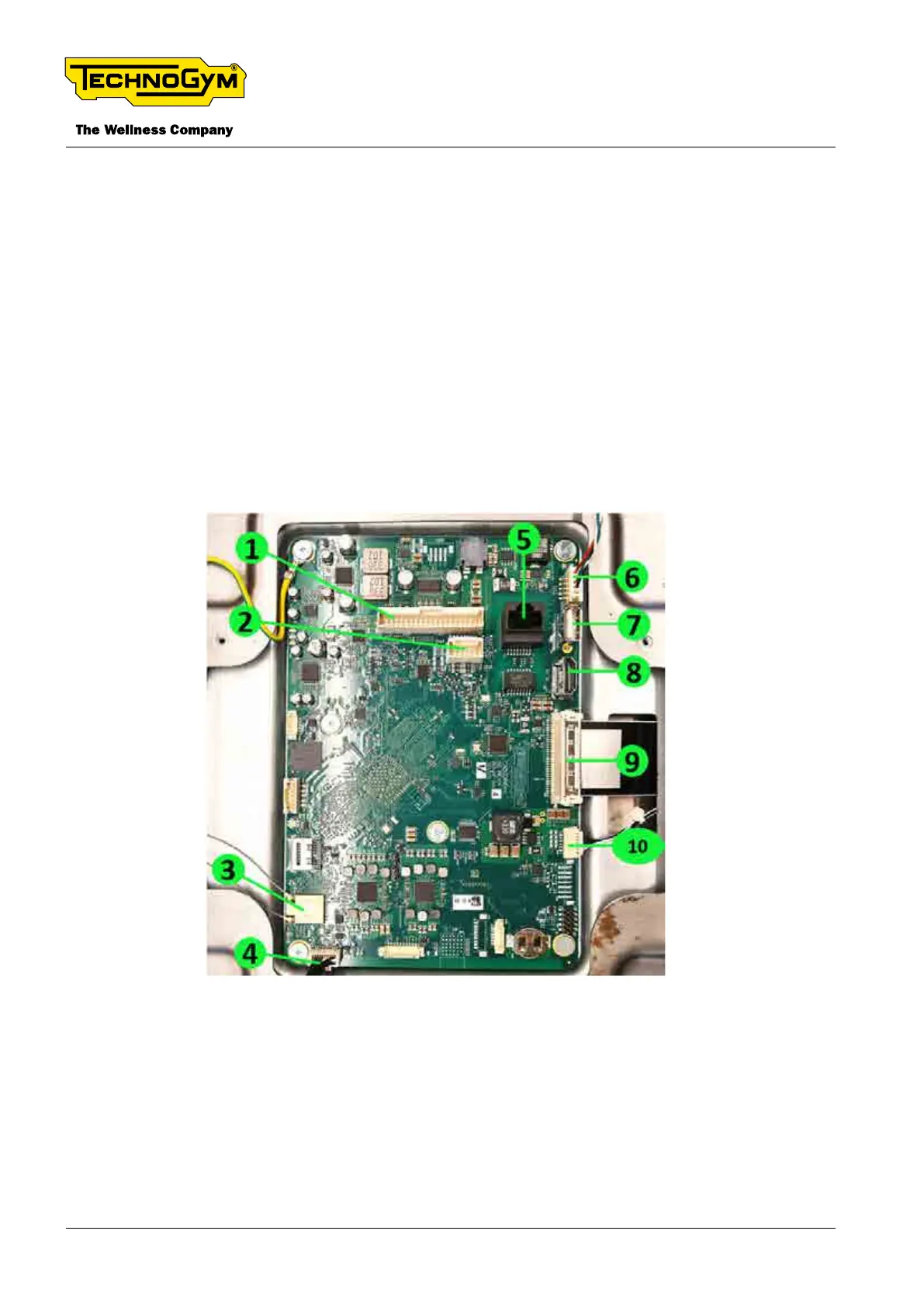

The numbers/letters shown in the gures correspond to the following components/connectors:
1: Main Power;
2: NFC/GYMKIT device;
3: WiFi module;
4: Headphones jack, signal for ON/OFF button and Stand-By led;
