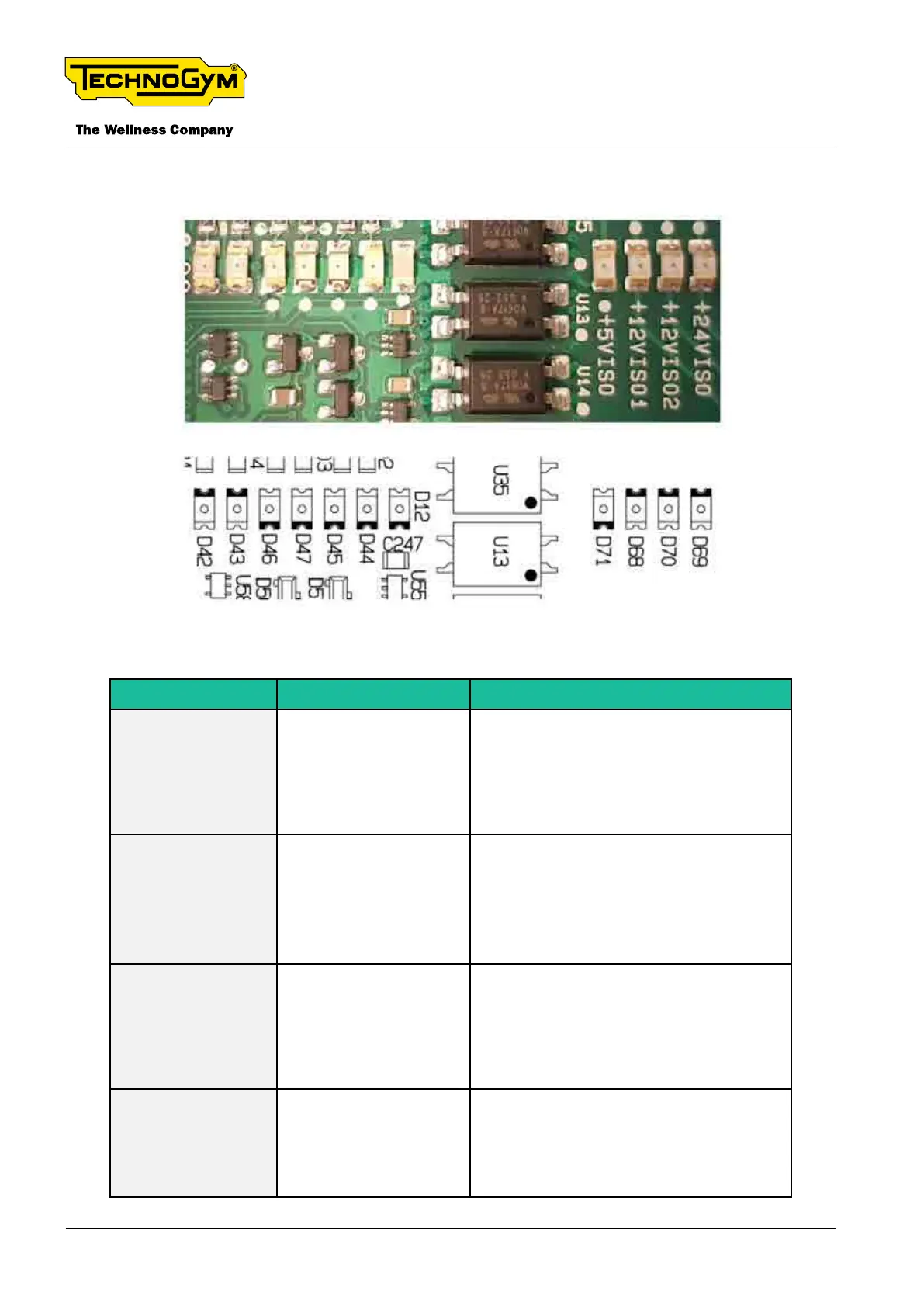

3.6.1 LEDS
Fig. 10
LEDS COLOUR STATE
+5V_AUX Green ON: The +5 Vdc internal pow-
er supply for the DRIVE is present.
OFF: The +5 Vdc internal power sup-
ply for the DRIVE is NOT present.
FLASHING: Not applicable
M i c r o Down SW Green ON: Microswitch not pressed. Mi-
croswitch not active, that is during
normal operation of the equipment.
OFF: Microswitch pressed.
FLASHING: Not applicable
TACHO Green ON/OFF (xed): the gradient mo-
tor does not move; the encoder does
not rotate.
FLASHING: the gradient mo-
tor moves; the encoder rotates.
ALARM Red ON: in case of a fault.
OFF: Standard equipment operating
condition.
FLASHING: Not applicable.
TECHNOGYM RUN Technical Service Guide
Rev. 1.0
- 32 -
TSG-00284-EN- Uncontrolled copy if printed TSG-00284-EN- Uncontrolled copy if printed
