3.11.2 CENTRAL STOP BUTTON

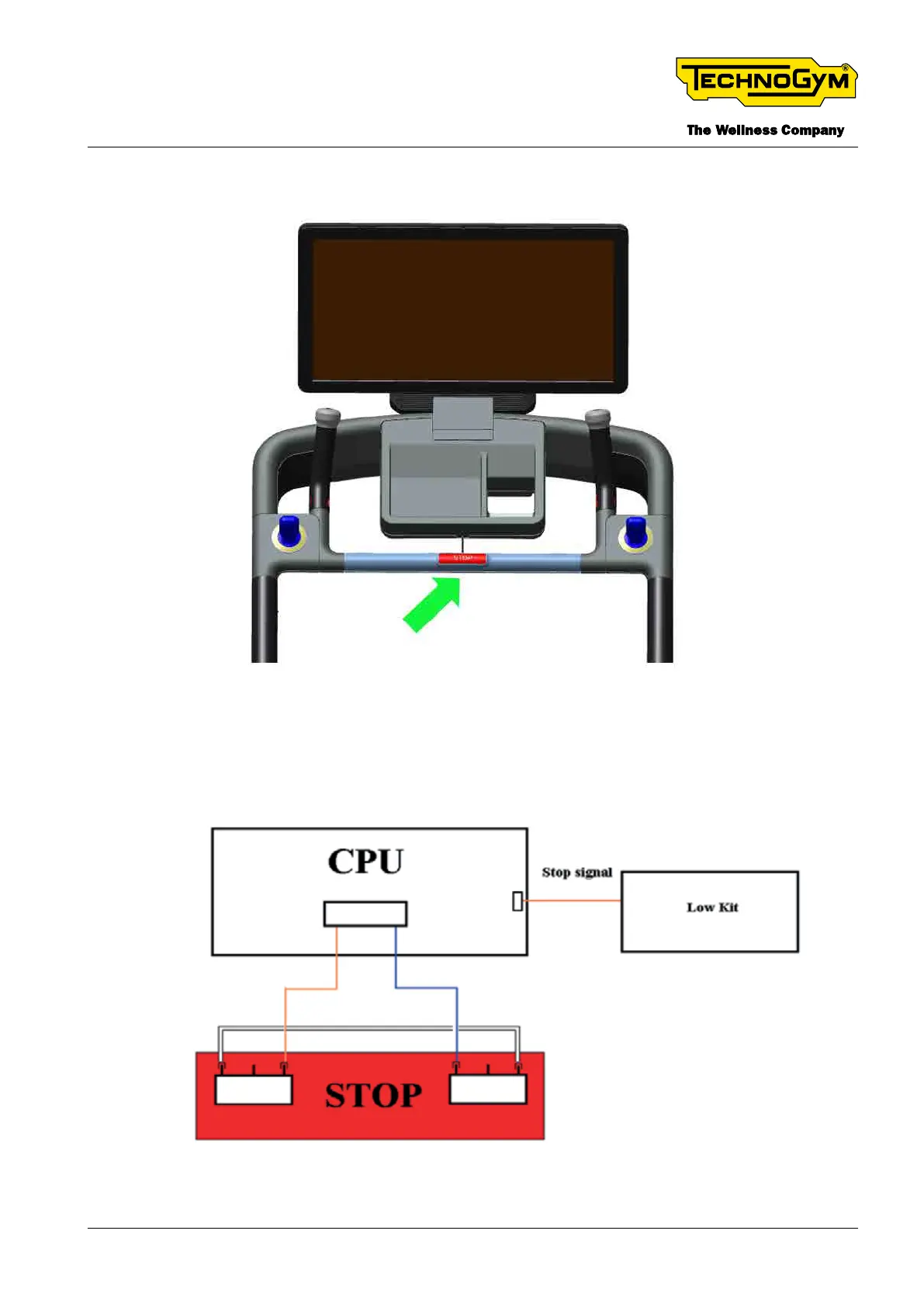

Fig. 15
The device comprises a RED (STOP) button, which houses 2 NC series connected microswitches.
Once the button is pressed by the user: the 2 microswitches switch to the open state. This is a
controlled stop of the exercise, meaning that the motor stops gradually.
RS -485
Fig. 16
TECHNOGYM RUN Technical Service Guide
Rev. 1.0
- 41 -
TSG-00284-EN- Uncontrolled copy if printed
