8.5 MOTOR TRANSMISSION

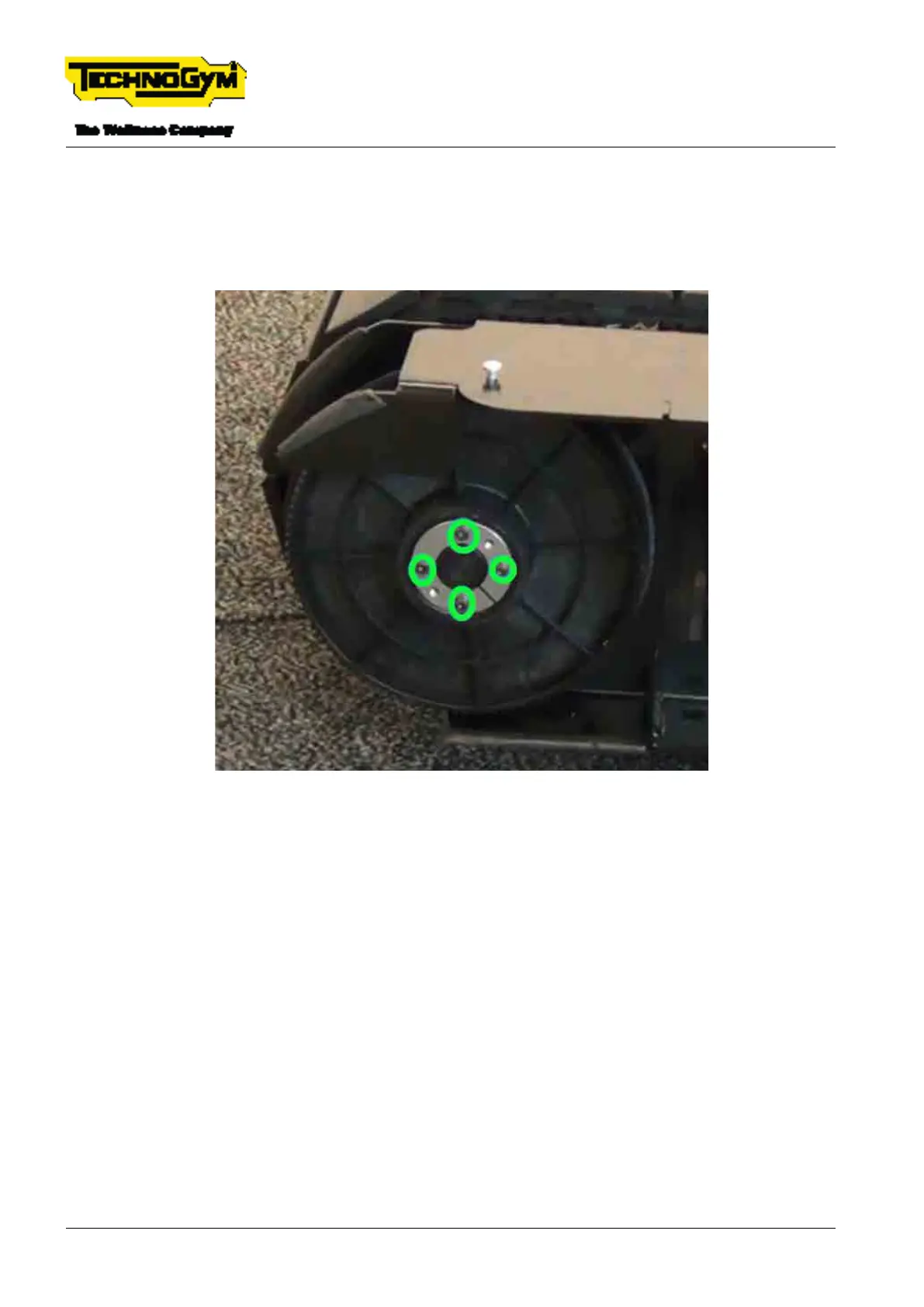

8.5.1 RIGHT REAR PULLEY
TIGHTENING TORQUE of the right rear pulley screws: 5 Nm (3.7 lbf-ft) (3 turns per screw).
Fig. 58
8.5.2 MOTOR BELT
▪ If the belt is replaced with a new one, tension the belt to the frequency: 215 ± 5 Hz.
▪ If the belt is loosened / removed and then the same one is reassembled: tension the belt to
the frequency: 190 ± 5 Hz.
