PROCEDURE:
1. Turn o the equipment. Disconnect the power supply cable.
2. Remove the front and side casing, on the right and left side of the equipment.
For details, refer to the disassembly procedure (see the attached video):
13 - Disassembling the bottom casing
3. Place a protection on the ground where the display and uprights will be placed.
4. Disconnect all the cables that exit the upright.
5. Disconnect the gradient motor cable from the drive.

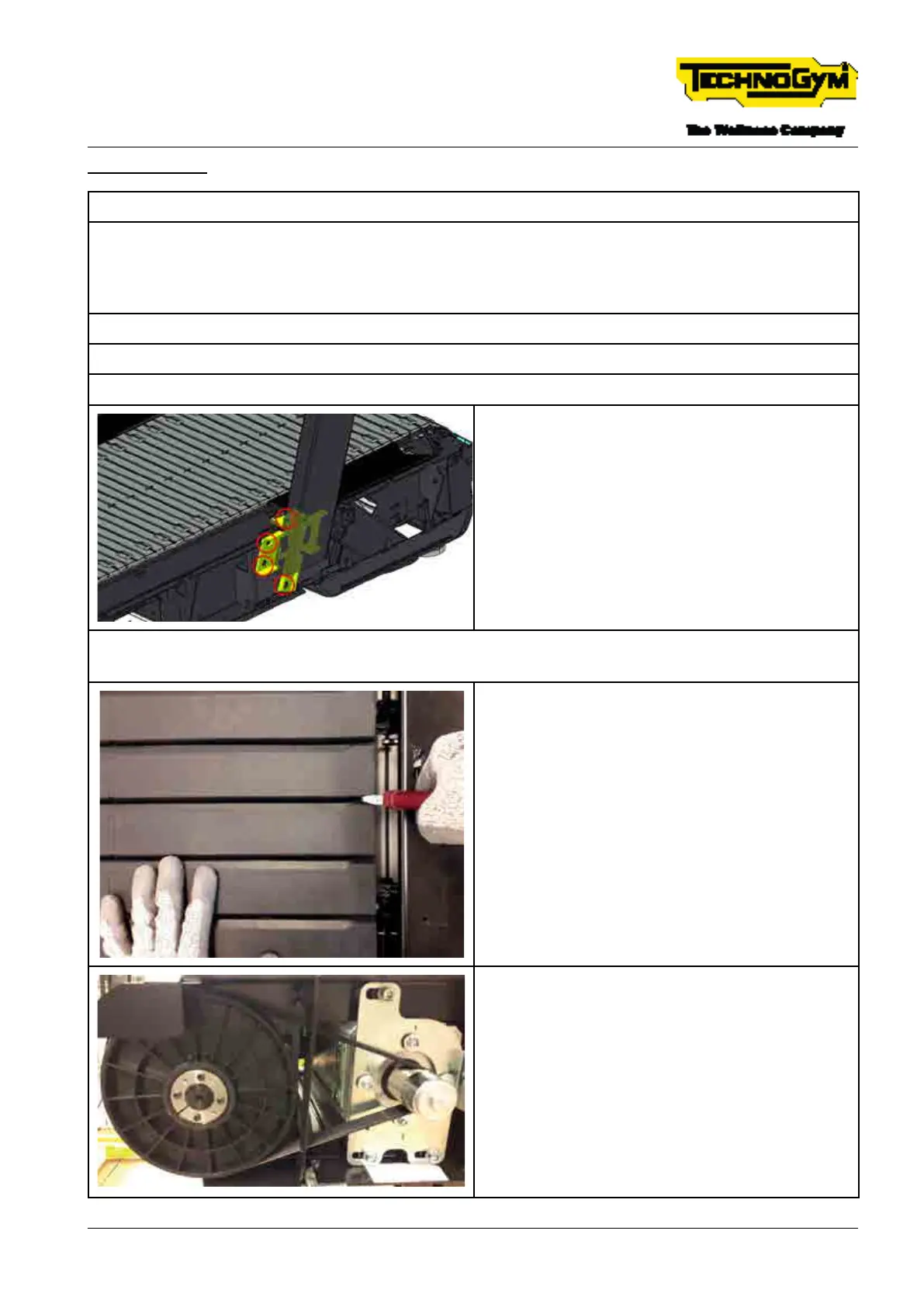

6. Remove the four screws circled, both
on the right and on the left side of the
equipment, (TOOL: 8mm hexagon key
wrench).
7. Remove the upright unit with the incorporated display from the equipment, and place it on
the ground.
8. Cut the two belts, to the right and left of
the equipment. (TOOL: pointed pliers)
9. Loosen the belt and remove it.
TECHNOGYM RUN Technical Service Guide
Rev. 1.0
- 55 -TSG-00284-EN- Uncontrolled copy if printed
