Tektronix 2230

General Information—2230 Service

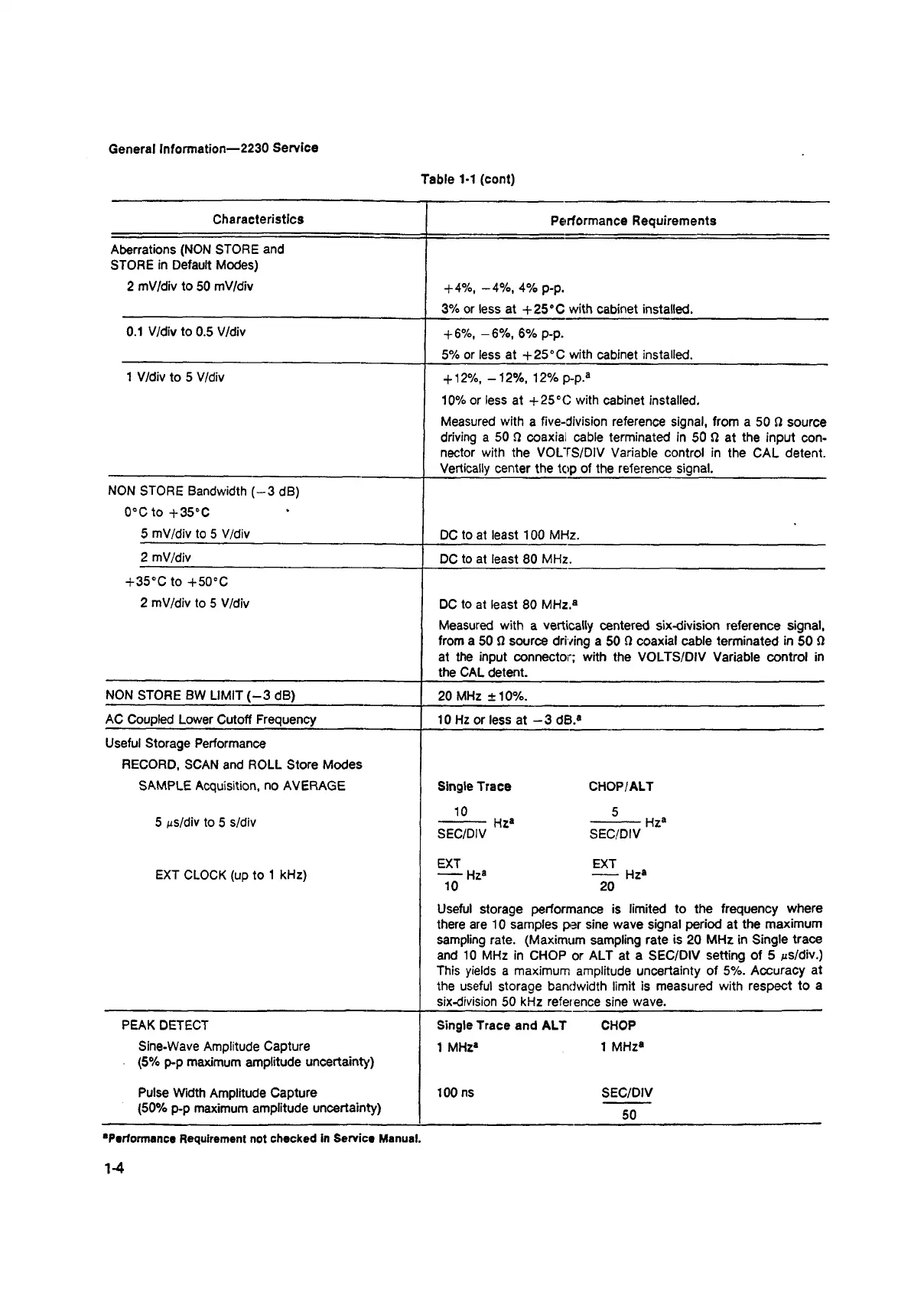

Table 1-1 (cont)
Characteristics
Performance Requirements
Aberrations (NON STORE and
STORE in Default Modes)
2 mV/div to 50 mV/div
+4%, -4% , 4% p-p.
3% or less at + 25CC with cabinet installed.
0.1 V/div to 0.5 V/div
+6%, -6% , 6% p-p.
5% or less at + 25°C with cabinet installed.
1 V/div to 5 V/div
+ 12%, -12%, 12% p-p.a
10% or less at +25°C with cabinet installed.
Measured with a five-division reference signal, from a 50 Q source
driving a 50 n coaxial cable terminated in 50 0 at the input con
nector with the VOLTS/DIV Variable control in the CAL detent.
Vertically center the top of the reference signal.
NON STORE Bandwidth (-3 dB)
0°C to + 35°C
5 mV/div to 5 V/div
DC to at least 100 MHz.
2 mV/div
DC to at least 80 MHz.
+35°C to +50'C
2 mV/div to 5 V/div
DC to at least 80 MHz.a
Measured with a vertically centered six-division reference signal,
from a 50 Q source driving a 50 0 coaxial cable terminated in 50 0
at the input connector; with the VOLTS/DIV Variable control in
the CAL detent.
NON STORE BW LIMIT (-3 dB)
20 MHz ±10%.
AC Coupled Lower Cutoff Frequency
10 Hz or less at - 3 dB.a
Useful Storage Performance
RECORD, SCAN and ROLL Store Modes
SAMPLE Acquisition, no AVERAGE
Single Trace CHOP/ALT
5 MS/div to 5 s/div
10 5
----------- Hza ----------- Hza
SEC/DIV SEC/DIV
EXT CLOCK (up to 1 kHz)
EXT EXT
----- Hza ------- Hza
10 20
Useful storage performance is limited to the frequency where
there are 10 samples par sine wave signal period at the maximum
sampling rate. (Maximum sampling rate is 20 MHz in Single trace
and 10 MHz in CHOP or ALT at a SEC/DIV setting of 5 jis/div.)
This yields a maximum amplitude uncertainty of 5%. Accuracy at
the useful storage bandwidth limit is measured with respect to a
six-division 50 kHz reference sine wave.
PEAK DETECT
Sine-Wave Amplitude Capture
(5% p-p maximum amplitude uncertainty)
Single Trace and ALT CHOP
1 MHza 1 MHza
Pulse Width Amplitude Capture
(50% p-p maximum amplitude uncertainty)
100 ns SEC/DIV
50
‘ Performance Requirement not checked in Service Manual.
1-4
