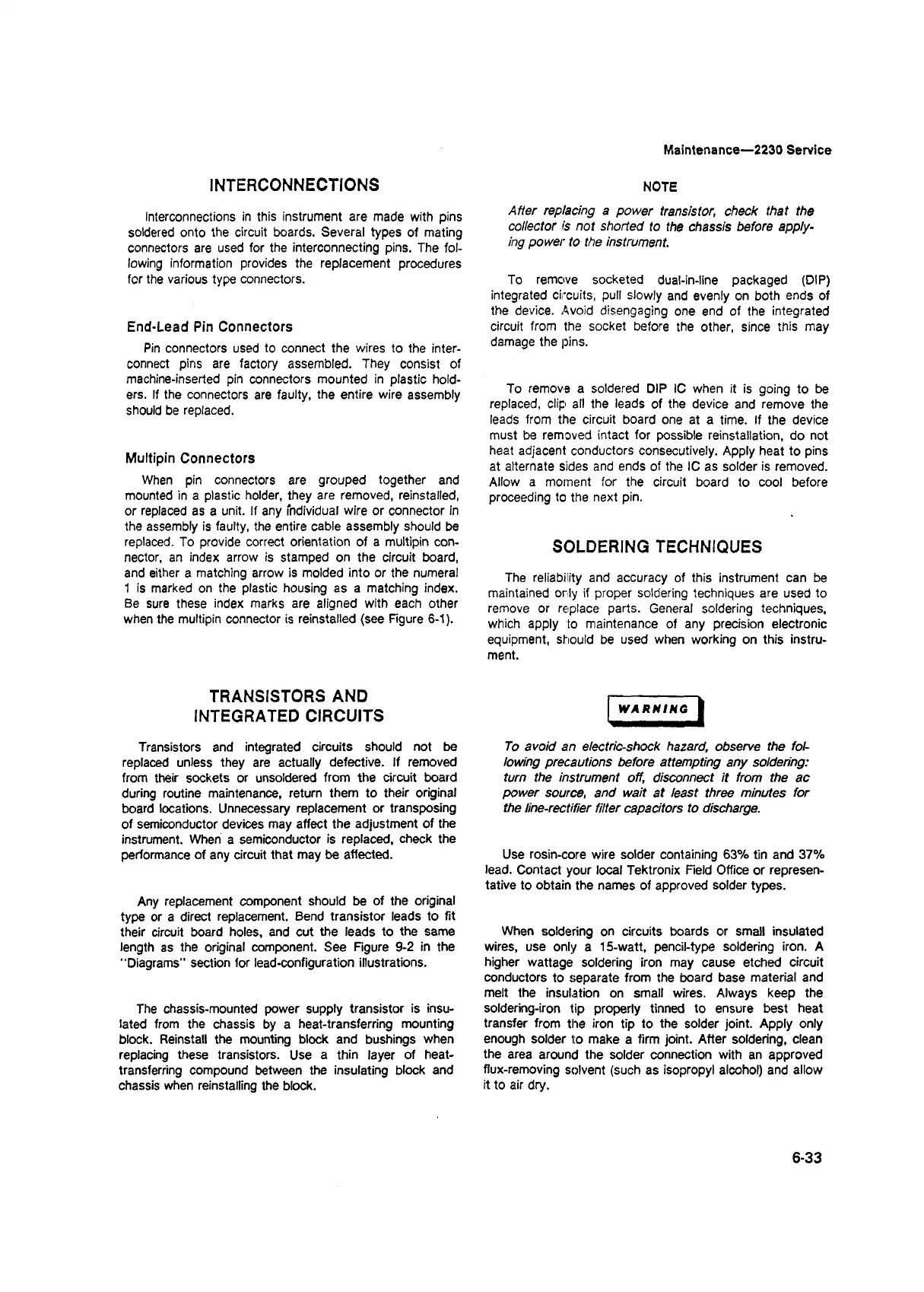

INTERCONNECTIONS
Interconnections in this instrument are made with pins
soldered onto the circuit boards. Several types of mating
connectors are used for the interconnecting pins. The fol
lowing information provides the replacement procedures
for the various type connectors.
End-Lead Pin Connectors
Pin connectors used to connect the wires to the inter
connect pins are factory assembled. They consist of
machine-inserted pin connectors mounted in plastic hold
ers. If the connectors are faulty, the entire wire assembly
should be replaced.
Multipin Connectors
When pin connectors are grouped together and
mounted in a plastic holder, they are removed, reinstalled,
or replaced as a unit. If any individual wire or connector in
the assembly is faulty, the entire cable assembly should be
replaced. To provide correct orientation of a multipin con
nector, an index arrow is stamped on the circuit board,
and either a matching arrow is molded into or the numeral
1 is marked on the plastic housing as a matching index.
Be sure these index marks are aligned with each other
when the multipin connector is reinstalled (see Figure 6-1).
TRANSISTORS AND
INTEGRATED CIRCUITS
Transistors and integrated circuits should not be
replaced unless they are actually defective. If removed
from their sockets or unsoldered from the circuit board
during routine maintenance, return them to their original
board locations. Unnecessary replacement or transposing
of semiconductor devices may affect the adjustment of the
instrument. When a semiconductor is replaced, check the
performance of any circuit that may be affected.
Any replacement component should be of the original
type or a direct replacement. Bend transistor leads to fit
their circuit board holes, and cut the leads to the same
length as the original component. See Figure 9-2 in the
"Diagrams" section for lead-configuration illustrations.
The chassis-mounted power supply transistor is insu
lated from the chassis by a heat-transferring mounting
block. Reinstall the mounting block and bushings when
replacing these transistors. Use a thin layer of heat
transferring compound between the insulating block and
chassis when reinstalling the block.
Maintenance—2230 Service
NOTE
After replacing a power transistor, check that the
collector is not shorted to the chassis before apply
ing power to the instrument.
To remove socketed dual-in-line packaged (DIP)
integrated circuits, pull slowly and evenly on both ends of
the device. Avoid disengaging one end of the integrated
circuit from the socket before the other, since this may
damage the pins.
To remove a soldered DIP 1C when it is going to be
replaced, clip all the leads of the device and remove the
leads from the circuit board one at a time. If the device
must be removed intact for possible reinstallation, do not
heat adjacent conductors consecutively. Apply heat to pins
at alternate sides and ends of the 1C as solder is removed.
Allow a moment for the circuit board to cool before
proceeding to the next pin.
SOLDERING TECHNIQUES
The reliability and accuracy of this instrument can be
maintained only if proper soldering techniques are used to
remove or replace parts. General soldering techniques,
which apply to maintenance of any precision electronic
equipment, should be used when working on this instru
ment.
WARMING I
To avoid an electric-shock hazard, observe the fol
lowing precautions before attempting any soldering:
turn the instrument off, disconnect it from the ac
power source, and wait at least three minutes for
the line-rectifier filter capacitors to discharge.
Use rosin-core wire solder containing 63% tin and 37%
lead. Contact your local Tektronix Field Office or represen
tative to obtain the names of approved solder types.
When soldering on circuits boards or small insulated
wires, use only a 15-watt, pencil-type soldering iron. A
higher wattage soldering iron may cause etched circuit
conductors to separate from the board base material and
melt the insulation on small wires. Always keep the
soldering-iron tip properly tinned to ensure best heat
transfer from the iron tip to the solder joint. Apply only
enough solder to make a firm joint. After soldering, clean
the area around the solder connection with an approved
flux-removing solvent (such as isopropyl alcohol) and allow
it to air dry.
6-33
