Maintenance— 2230 Service

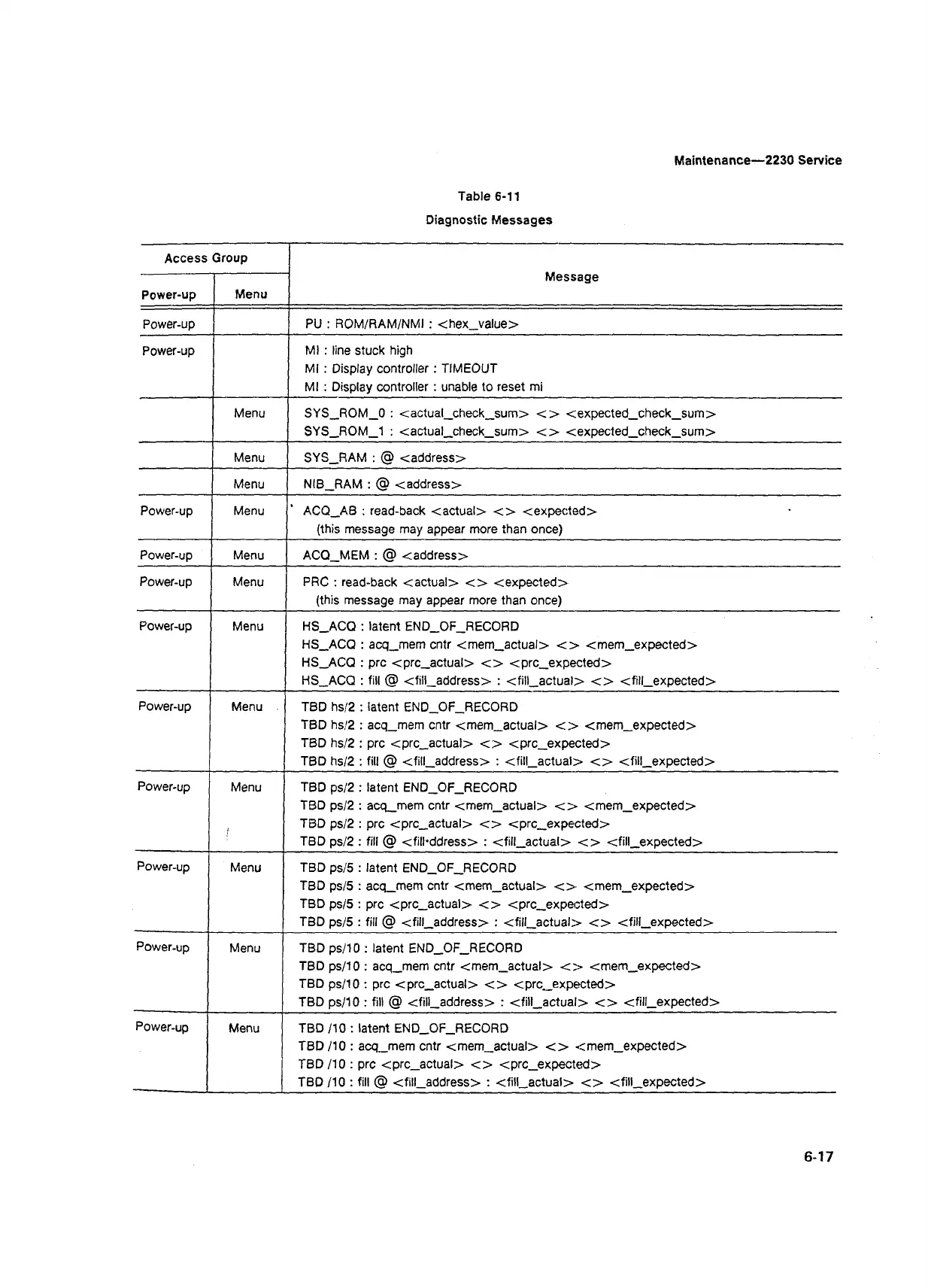

Table 6-11
Diagnostic Messages
Access Group
Power-up Menu
Message
Power-up PU : ROM/RAM/NMI : <hex_value>
Power-up
Ml : line stuck high
Ml : Display controller: TIMEOUT
Ml : Display controller: unable to reset mi
Menu SVS_ROM_0 : <actual_check_sum> < > <expected_check_sum>
SYS_ROM_1 : <actual_check_sum> < > <expected_check_sum>
Menu
SYS_RAM : @ <address>
Menu NIB_RAM : @ <address>
Power-up Menu ACQ_AB : read-back <actual> < > <expected>
(this message may appear more than once)
Power-up Menu ACQ_MEM : @ < address >
Power-up Menu PRC : read-back <actual> < > <expected>
(this message may appear more than once)
Power-up
Menu
HS_ACQ : latent END_OF_RECORD
HS_ACQ : acq_mem cntr <mem_actual> < > <mem_expected>
HS_ACQ : prc <prc_actual> < > <prc_expected>
HS_ACQ : fill @ <fill_address> : <fill_actual> < > <fi!l_expected>
Power-up Menu
TBD hs/2 : latent END_OF_RECORD
TBD hs/2 : acq_mem cntr <mem_actual> <:> <mem_expected>
TBD hs/2 : prc <prc_actual> < > <prc_expected>
TBD hs/2 : fill @ <fill_address> : <fill_actual> < > <fill_expected>
Power-up
Menu TBD ps/2 : latent END_OF_RECORD
TBD ps/2 : acq_mem cntr <mem_actual> < > <mem_expected>
TBD ps/2 : prc <prc_actual> < > <prc_expected>
TBD ps/2 : fill @ <fill*ddress> : <fill_actual> < > <fill_expected>
Power-up
Menu TBD ps/5 : latent END_OF_RECORD
TBD ps/5 : acq_mem cntr <mem_actual> < > <mem_expected>
TBD ps/5 : prc <prc_actual> < > <prc_expected>
TBD ps/5 : fill @ <fill_address> : <fill_actual> < > <fill_expected>
Power-up
Menu TBD ps/10 : latent END_OF_RECORD
TBD ps/10 : acq_mem cntr <mem_actual> < > <mem_expected>
TBD ps/10 : prc <prc_actual> < > <prc_expected>
TBD ps/10 : fill @ <fiil_address> : <fill_actual> < > <fill_expected>
Power-up
Menu TBD /10 : latent END_OF_RECORD
TBD /10 : acq_mem cntr <mem_actual> < > <mem_expected>
TBD/10 : prc <prc_actual> < > <prc_expected>
TBD /10 : fill @ <fill_address> : < fiII _ actua!> < > <fill_expected>
6-17
