Section 2—2230 Service
OPERATING INFORMATION
PREPARATION FOR USE
SAFETY
This part of the manual tells how to prepare for and to
proceed with the initial start-up of the instrument.
Refer to the Safety Summary at the front of this
manual for power source, grounding, and other safety con
siderations pertaining to the use of the instrument. Before
connecting the oscilloscope to a power source, read
entirely both this section and the Safety Summary.
LINE VOLTAGE
This instrument is capable of continuous operation with
input voltages that range from 90 V to 250 V with source
voltage frequencies from 48 Hz to 440 Hz.
POWER CORD
A detachable three-wire power cord with a three-
contact plug is provided with each instrument for connect
ing to both the power source and protective ground. The
power cord may be secured to the rear panel by a cord-
set-securing clamp (see Figure 2-1). The protective-ground
contact in the plug connects (through the protective-
ground conductor) to the accessible metal parts of the
Instrument. For electrical-shock protection, insert this plug
only into a power-source outlet that has a properly
grounded protective-ground contact.
Instruments are shipped with the power cord specified
by the customer. Available power-cord information is
presented in Figure 2-2, and part numbers are listed in
“Options and Accessories' (Section 7). Contact your
Tektronix representative or local Tektronix Field Office for
additional power-cord information.
CAUTION
to * CONTINUED FIRE PROTECTION
REPLACE ONLY WITH spt&m o
Trpr ano ratio fuse Disconnect
POWER INPUT BEfORE REPLACING FUSE
l ME V01TA6E RANGE FUSE 7S0V
90 ?S0V AC ?A SLOW
00 NOT REMOVE
COVER. REFER
SERVICING TO
OUALtflEO PERSONNEL
POWER
MAX WATTS |$
MAX VA ISO
FRIOUENCT
41-440 Hi
i i u
P'
CAUTION
to AVOID ELECTRIC
SHOCK THE POWER
C0R0 PROTECTIVE
GROUNDING CONOlfCTOR
MUST BE CONNECTED
TO GR0UN0.
EXT 2 AXIS INPUT
I0RO. POSITIVE COINS
INPUT DECREASES
INTENSITY.
$ VOLT P-P CAUSES
NOTICEABLE MODULA
TION AT NORMAL
intensity.
530V PEAK
TEKTRONIX. >NC.. BEAVERTON. OREGON. U.S.A.
i?
POWER CORD CLAMP
FLAT WASHER
SELF-TAPPING SCREW
4998-02

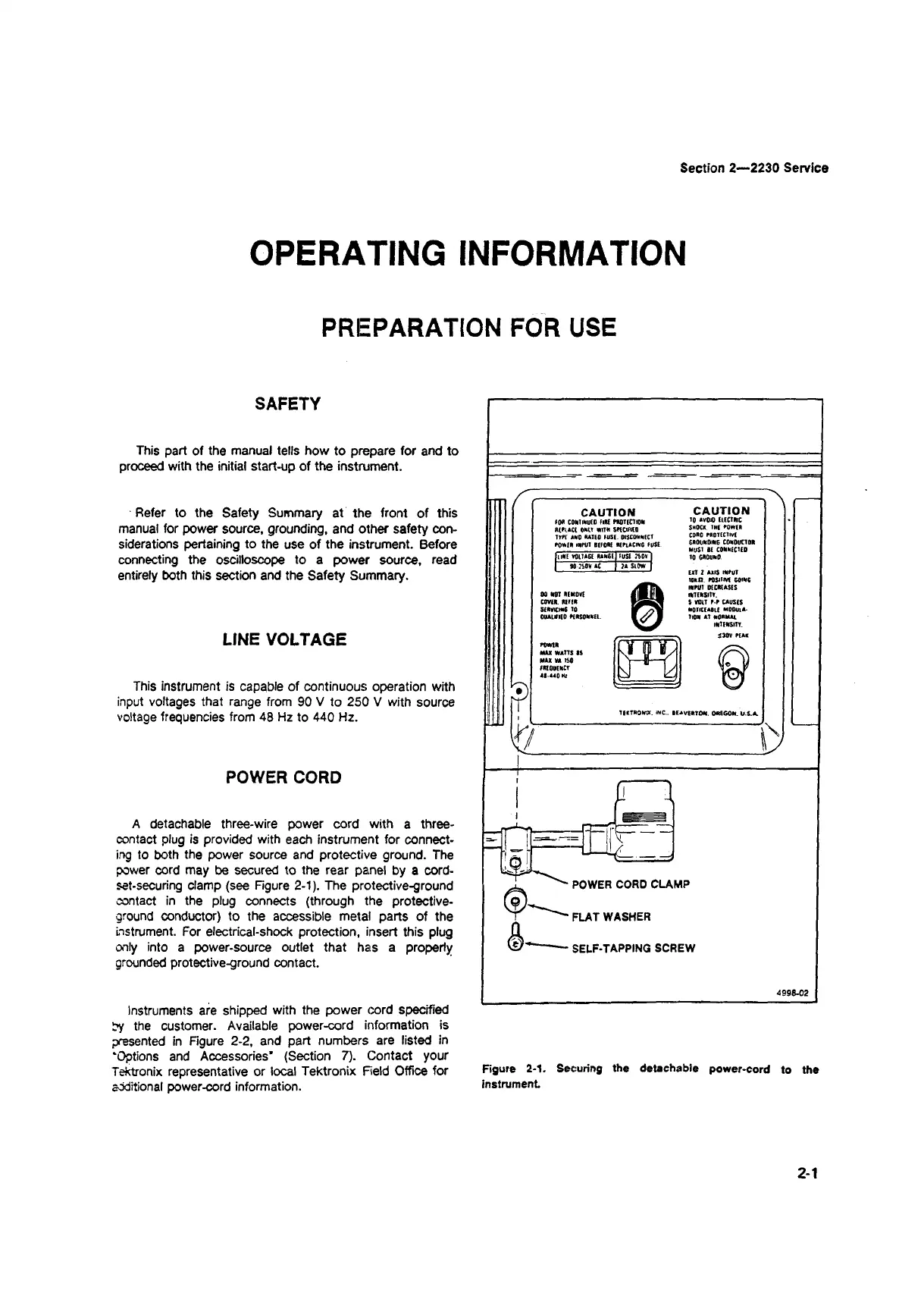

Figure 2-1. Securing the detachable power-cord to the
instrument
2-1
