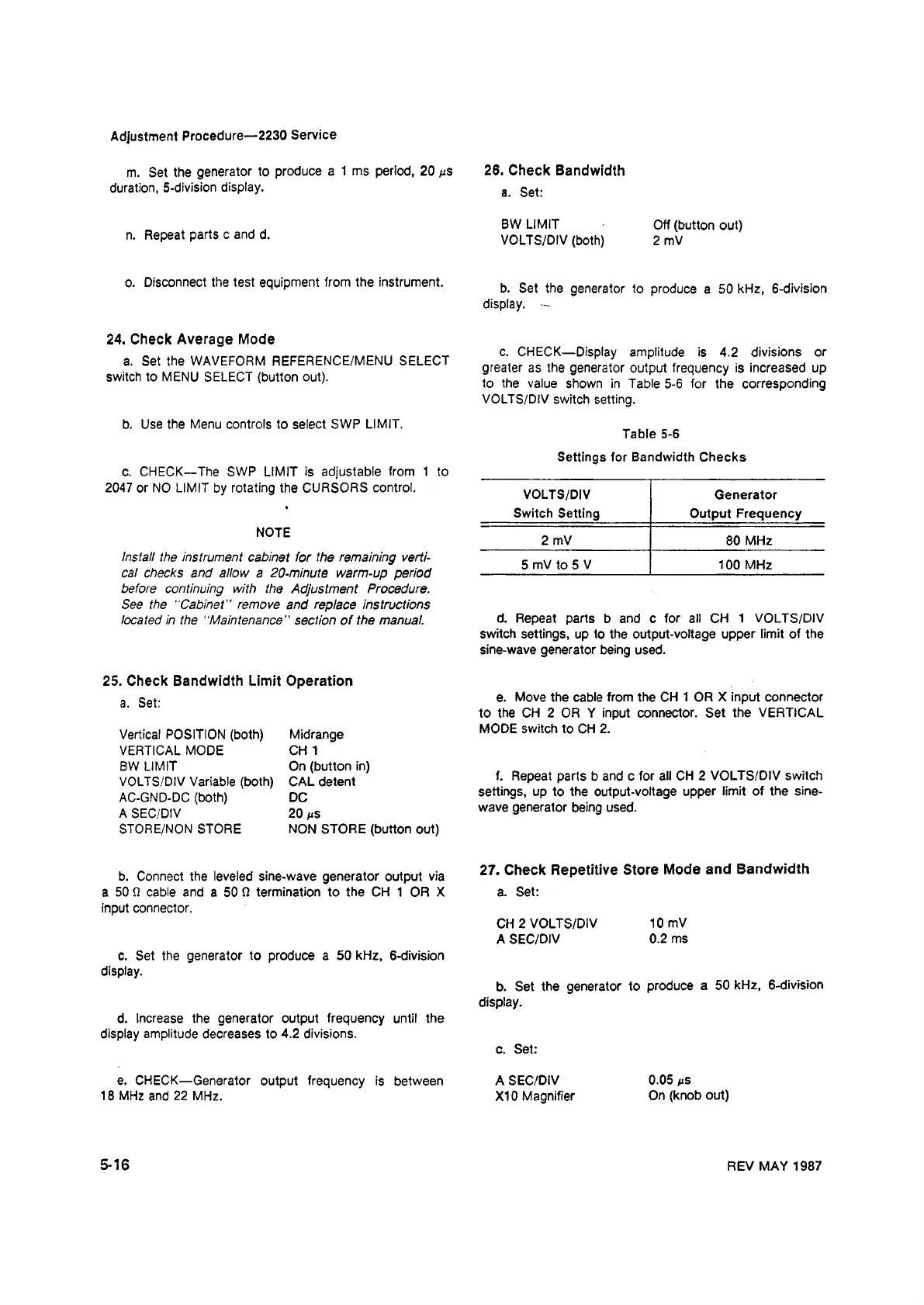

Adjustment Procedure—2230 Service
m. Set the generator to produce a 1 ms period, 20 /is 26. Check Bandwidth
duration, 5-division display. a gel;
. BW LIMIT Off (button out)
n. Repeat parts c and d. VOLTS/DIV (both) 2 mV
o. Disconnect the test equipment from the instrument. 5. Set the generator t0 produce a 50 kHz, 6-division
display. -
24. Check Average Mode
a. Set the WAVEFORM REFERENCE/MENU SELECT
switch to MENU SELECT (button out).
b. Use the Menu controls to select SWP LIMIT.
c. CHECK—The SWP LIMIT is adjustable from 1 to
2047 or NO LIMIT by rotating the CURSORS control.
NOTE
Install the instrument cabinet for the remaining verti
cal checks and allow a 20-minute warm-up period
before continuing with the Adjustment Procedure.
See the "Cabinet" remove and replace instructions
located in the "Maintenance" section of the manual.
c. CHECK—Display amplitude is 4.2 divisions or
greater as the generator output frequency is increased up
to the value shown in Table 5-6 for the corresponding
VOLTS/DIV switch setting.
Table 5-6
Settings for Bandwidth Checks
VOLTS/DIV Generator
Switch Setting Output Frequency
2 mV
80 MHz
5 mV to 5 V 100 MHz
d. Repeat parts b and c for all CH 1 VOLTS/DIV
switch settings, up to the output-voltage upper limit of the
sine-wave generator being used.
25. Check Bandwidth Limit Operation
a. Set:
Vertical POSITION (both)
VERTICAL MODE
BW LIMIT
VOLTS/DIV Variable (both)
AC-GND-DC (both)
A SEC/DIV
STORE/NON STORE
Midrange
CH 1
On (button in)
CAL detent
DC
20 /is
NON STORE (button out)
e. Move the cable from the CH 1 OR X input connector
to the CH 2 OR Y input connector. Set the VERTICAL
MODE switch to CH 2.
f. Repeat parts b and c for all CH 2 VOLTS/DIV switch
settings, up to the output-voltage upper limit of the sine-
wave generator being used.
b. Connect the leveled sine-wave generator output via 27■ Check Repetitive Store Mode and Bandwidth
a 50 0 cable and a 50 0 termination to the CH 1 OR X a. Set:
input connector.
CH 2 VOLTS/DIV 10 mV
A SEC/DIV 0.2 ms
c. Set the generator to produce a 50 kHz, 6-division
display.
b. Set the generator to produce a 50 kHz, 6-division
display.
d. Increase the generator output frequency until the
display amplitude decreases to 4.2 divisions.
c. Set:
e. CHECK—Generator output frequency is between
18 MHz and 22 MHz.
A SEC/DIV
XI0 Magnifier
0.05 £ts
On (knob out)
5-16
REV MAY 1987
