General Information—2230 Service

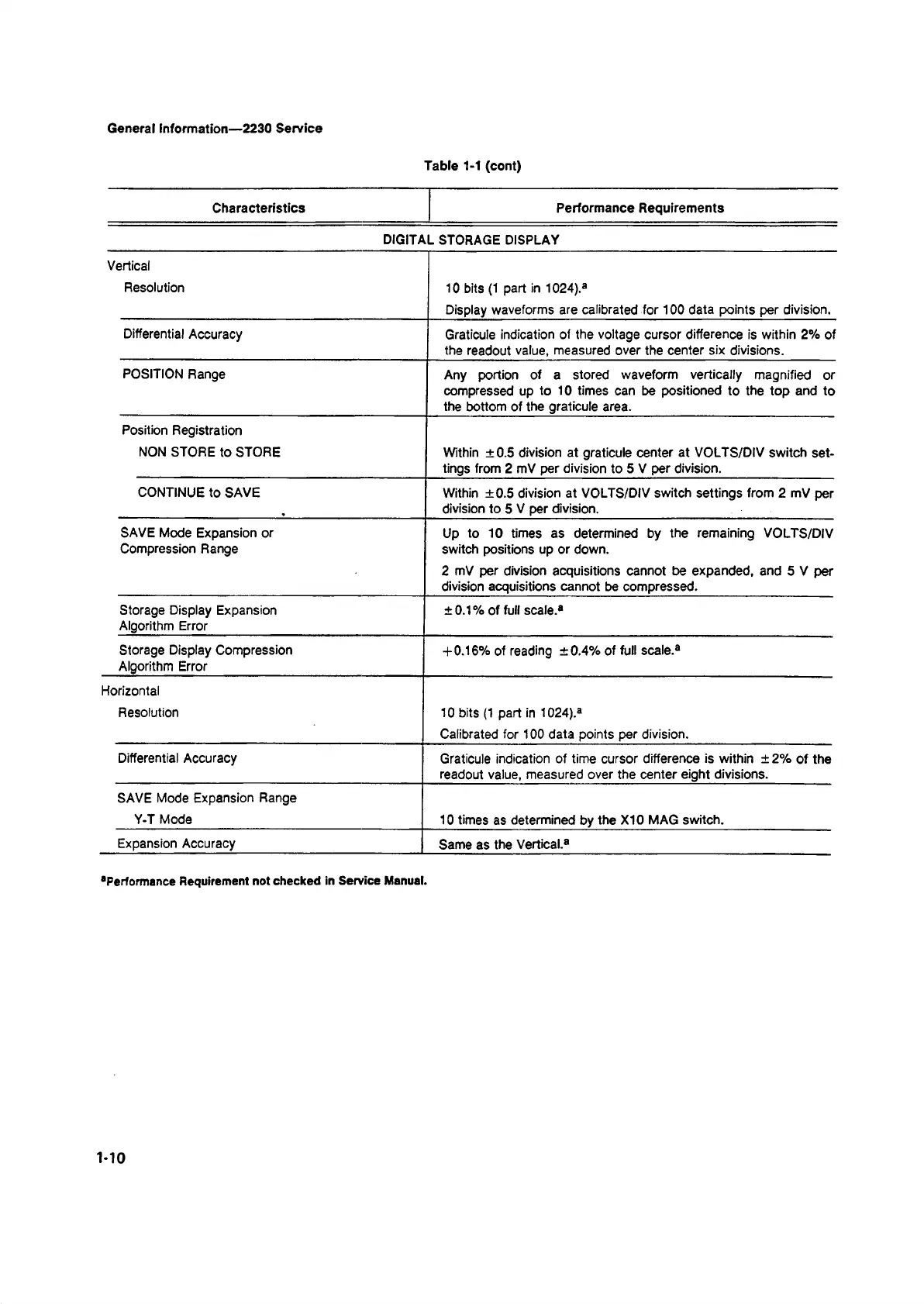

Table 1-1 (cont)
Characteristics Performance Requirements
DIGITAL STORAGE DISPLAY
Vertical
Resolution
10 bits (1 part in 1024).a
Display waveforms are calibrated for 100 data points per division.
Differential Accuracy
Graticule indication of the voltage cursor difference is within 2% of
the readout value, measured over the center six divisions.
POSITION Range
Any portion of a stored waveform vertically magnified or
compressed up to 10 times can be positioned to the top and to
the bottom of the graticule area.
Position Registration
NON STORE to STORE
Within ±0.5 division at graticule center at VOLTS/DIV switch set
tings from 2 mV per division to 5 V per division.
CONTINUE to SAVE
Within ±0.5 division at VOLTS/DIV switch settings from 2 mV per
division to 5 V per division.
SAVE Mode Expansion or
Compression Range
Up to 10 times as determined by the remaining VOLTS/DIV
switch positions up or down.
2 mV per division acquisitions cannot be expanded, and 5 V per
division acquisitions cannot be compressed.
Storage Display Expansion
Algorithm Error
±0.1% of full scale.8
Storage Display Compression
Algorithm Error
+0.16% of reading ±0.4% of full scale.8
Horizontal
Resolution
10 bits (1 part in 1024).8
Calibrated for 100 data points per division.
Differential Accuracy
Graticule indication of time cursor difference is within ± 2% of the
readout value, measured over the center eight divisions.
SAVE Mode Expansion Range
Y-T Mode
10 times as determined by the X I0 MAG switch.
Expansion Accuracy
Same as the Vertical.8
'Performance Requirement not checked in Service Manual.
