Tektronix 2230 Service Manual

Options— 2230 Service

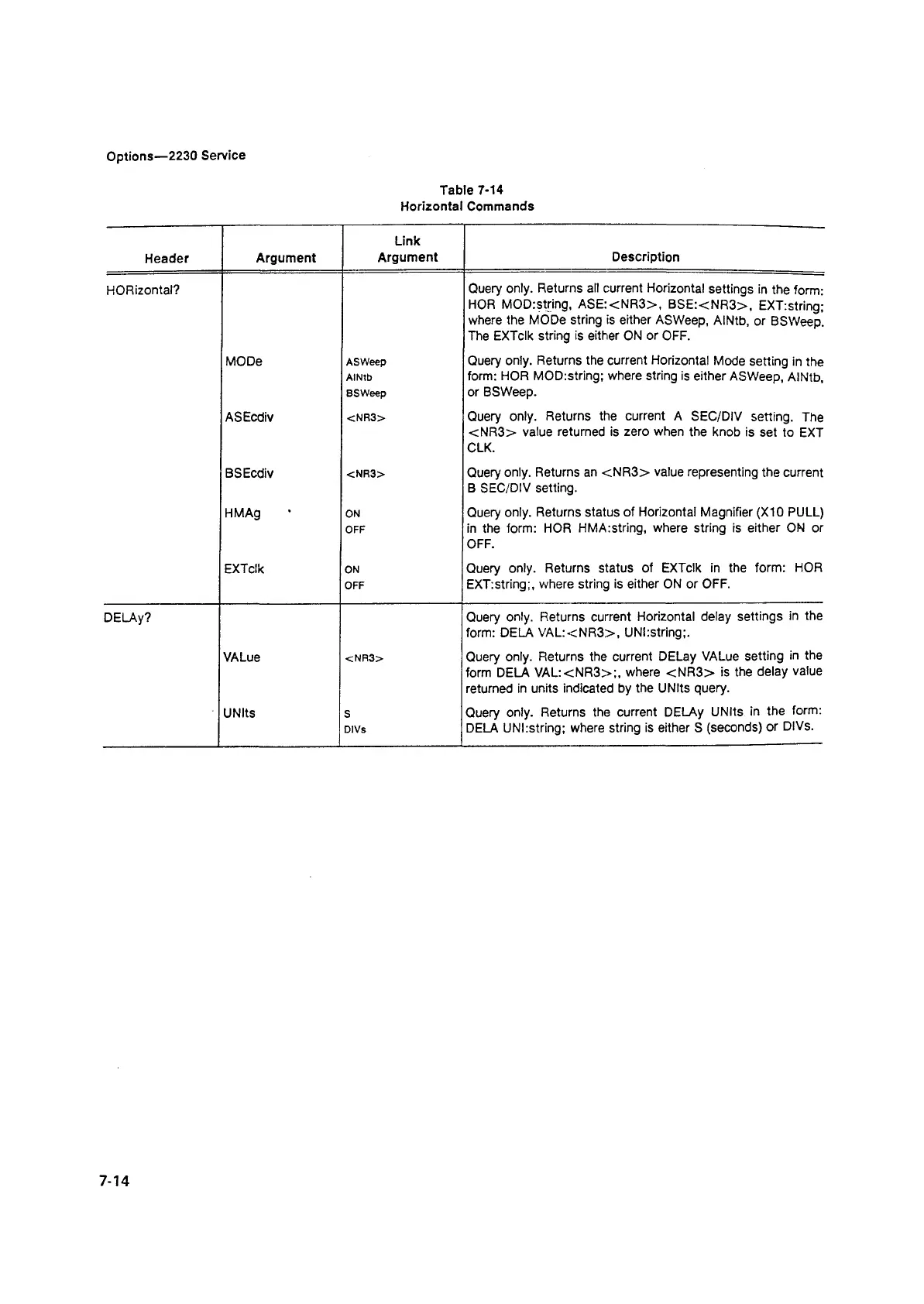

Table 7-14
Horizontal Commands
Header Argument
Link
Argument Description
HORizontal?
Query only. Returns all current Horizontal settings in the form:
HOR MOD:string, ASE:<NR3>, BSE:<NR3>, EXT:string;
where the MODe string is either ASWeep, AINtb, or BSWeep.
The EXTclk string is either ON or OFF.
MODe
A S W eep
AtN tb
B S W ee p
Query only. Returns the current Horizontal Mode setting in the
form: HOR MOD:string; where string is either ASWeep, AINtb,
or BSWeep.
ASEcdiv
< N R 3 >
Query only. Returns the current A SEC/DIV setting. The
<NR3> value returned is zero when the knob is set to EXT
CLK.
BSEcdiv
< N R 3 >
Query only. Returns an <NR3> value representing the current
B SEC/DIV setting.
HMAg
ON
O F F
Query only. Returns status of Horizontal Magnifier (XI0 PULL)
in the form: HOR HMA:string, where string is either ON or
OFF.
EXTclk
O N
O F F
Query only. Returns status of EXTclk in the form: HOR
EXT:string;, where string is either ON or OFF.
DELAy?
Query only. Returns current Horizontal delay settings in the
form: DELA VAL:<NR3>, UNkstring;.
VALue
< N R 3 >
Query only. Fieturns the current DELay VALue setting in the
form DELA VAL:<NR3>;, where <NR3> is the delay value
returned in units indicated by the UNIts query.
UNIts s
D IV s
Query only. Returns the current DELAy UNIts in the form:
DELA UNhstring; where string is either S (seconds) or DIVs.
7-14
