Options—2230 Service

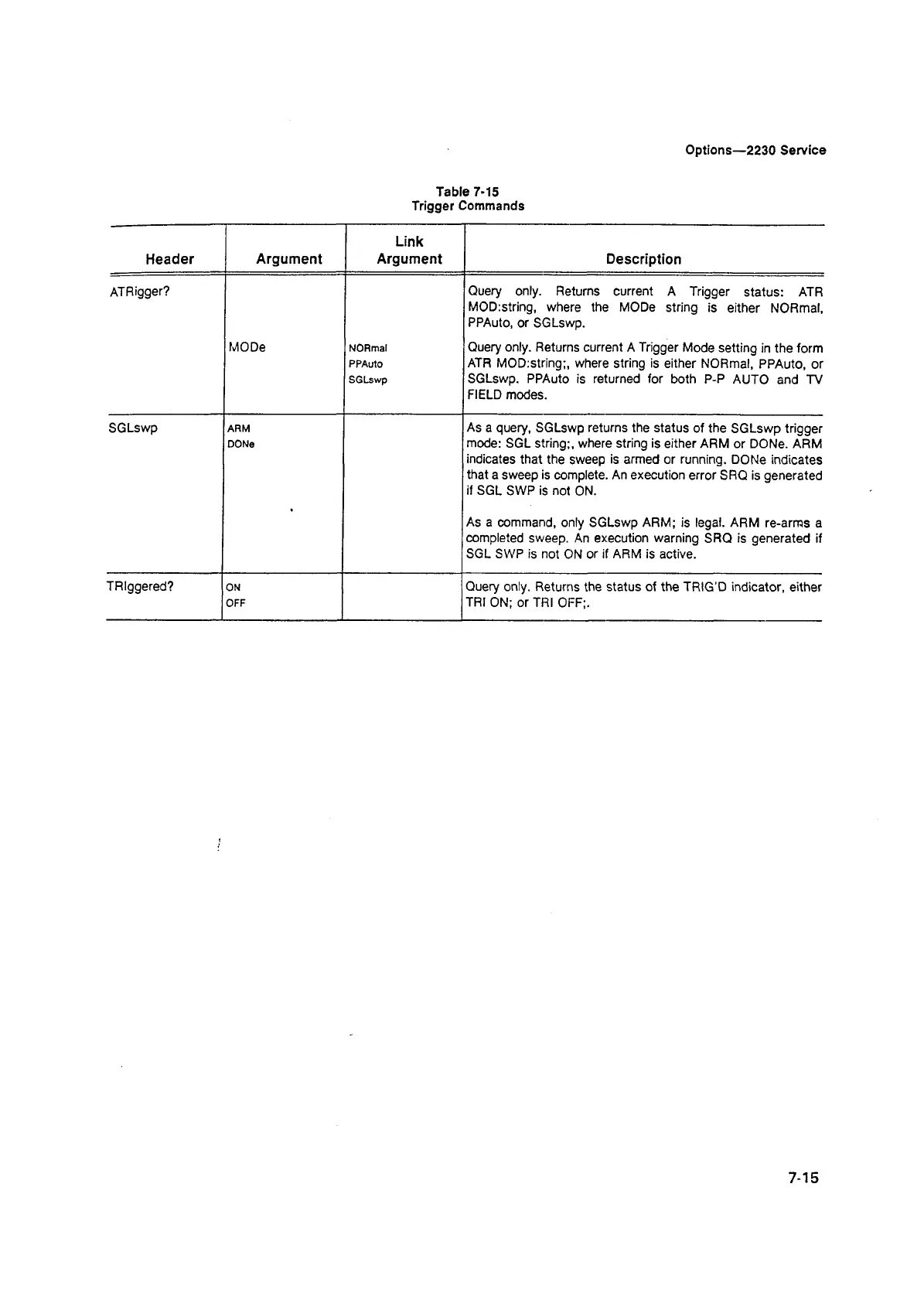

Table 7-15
Trigger Commands
Header Argument
Link
Argument
Description
ATRigger?
MODe
NO R m al
PP A uto
SG Lsw p
Query only. Returns current A Trigger status: ATR
MOD:string, where the MODe string is either NORmal,
PPAuto, or SGLswp.
Query only. Returns current A Trigger Mode setting in the form
ATR MOD:string;, where string is either NORmal, PPAuto, or
SGLswp. PPAuto is returned for both P-P AUTO and TV
FIELD modes.
SGLswp AR M
DO Ne
As a query, SGLswp returns the status of the SGLswp trigger
mode: SGL string;, where string is either ARM or DONe. ARM
indicates that the sweep is armed or running. DONe indicates
that a sweep is complete. An execution error SRQ is generated
if SGL SWP is not ON.
As a command, only SGLswp ARM; is legal. ARM re-arms a
completed sweep. An execution warning SRQ is generated if
SGL SWP is not ON or if ARM is active.
TRIggered? ON
OFF
Query only. Returns the status of the TRIG’D indicator, either
TRI ON; or TRI OFF;.
7-15
