Tektronix 2230

Options—2230 Service

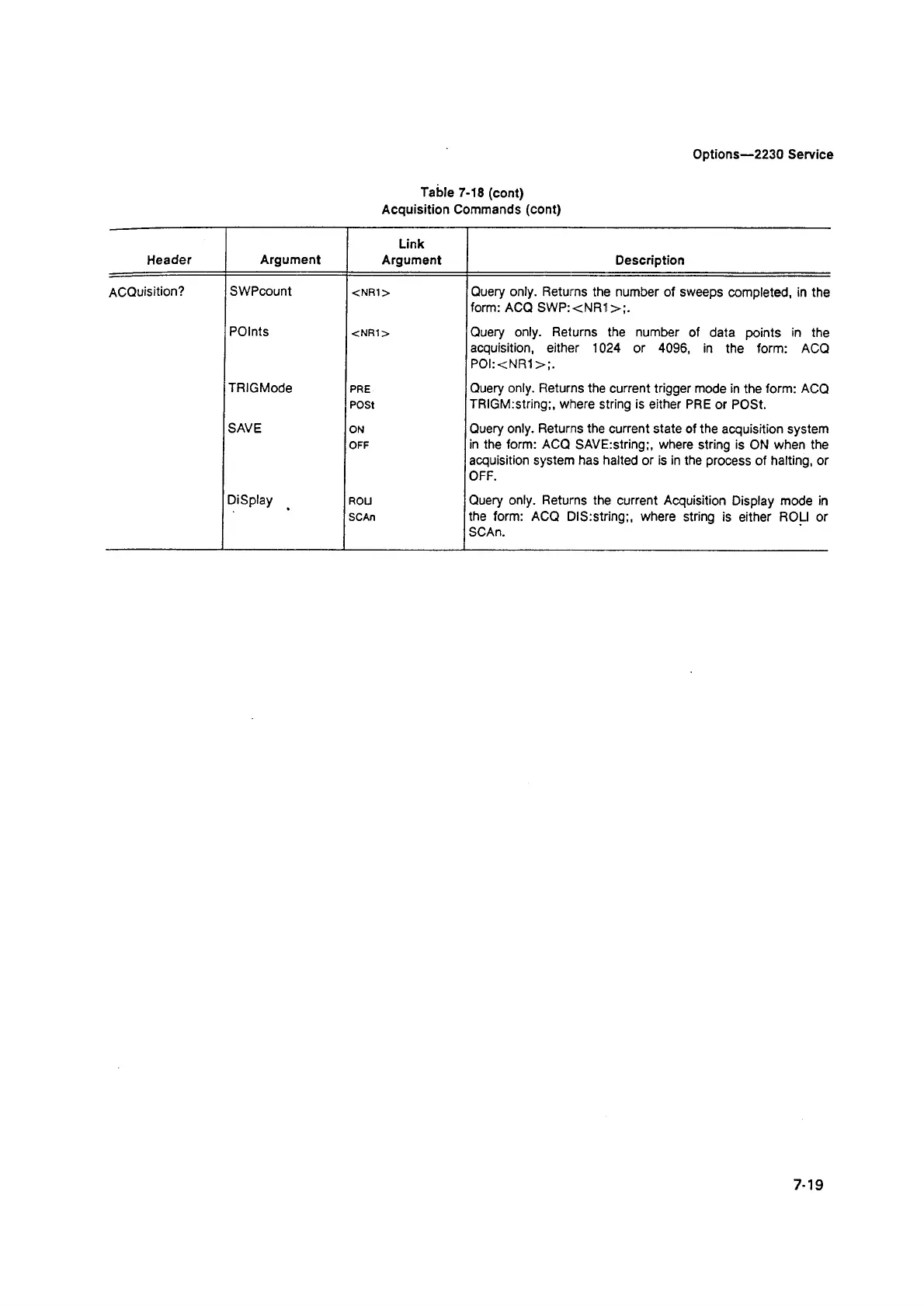

Table 7-18 (cont)
Acquisition Commands (cont)
Header Argument
Link
Argument Description
ACQuisition?
SWPcount
< N R 1 >
Query only. Returns the number of sweeps completed, in the
form: ACQ SWP:<NR1>;.
POInts < N R 1 >
Query only. Returns the number of data points in the
acquisition, either 1024 or 4096, in the form: ACQ
POI:<NR1>;.
TRIGMode P R E
post
Query only. Returns the current trigger mode in the form: ACQ
TRIGM:string;, where string is either PRE or POSt.
SAVE
O N
O F F
Query only. Returns the current state of the acquisition system
in the form: ACQ SAVE:string;, where string is ON when the
acquisition system has halted or is in the process of halting, or
OFF.
Display
R O U
SCAn
Query only. Returns the current Acquisition Display mode in
the form: ACQ DIS:string;, where string is either ROU or
SCAn.
7-19
