Tektronix 2230

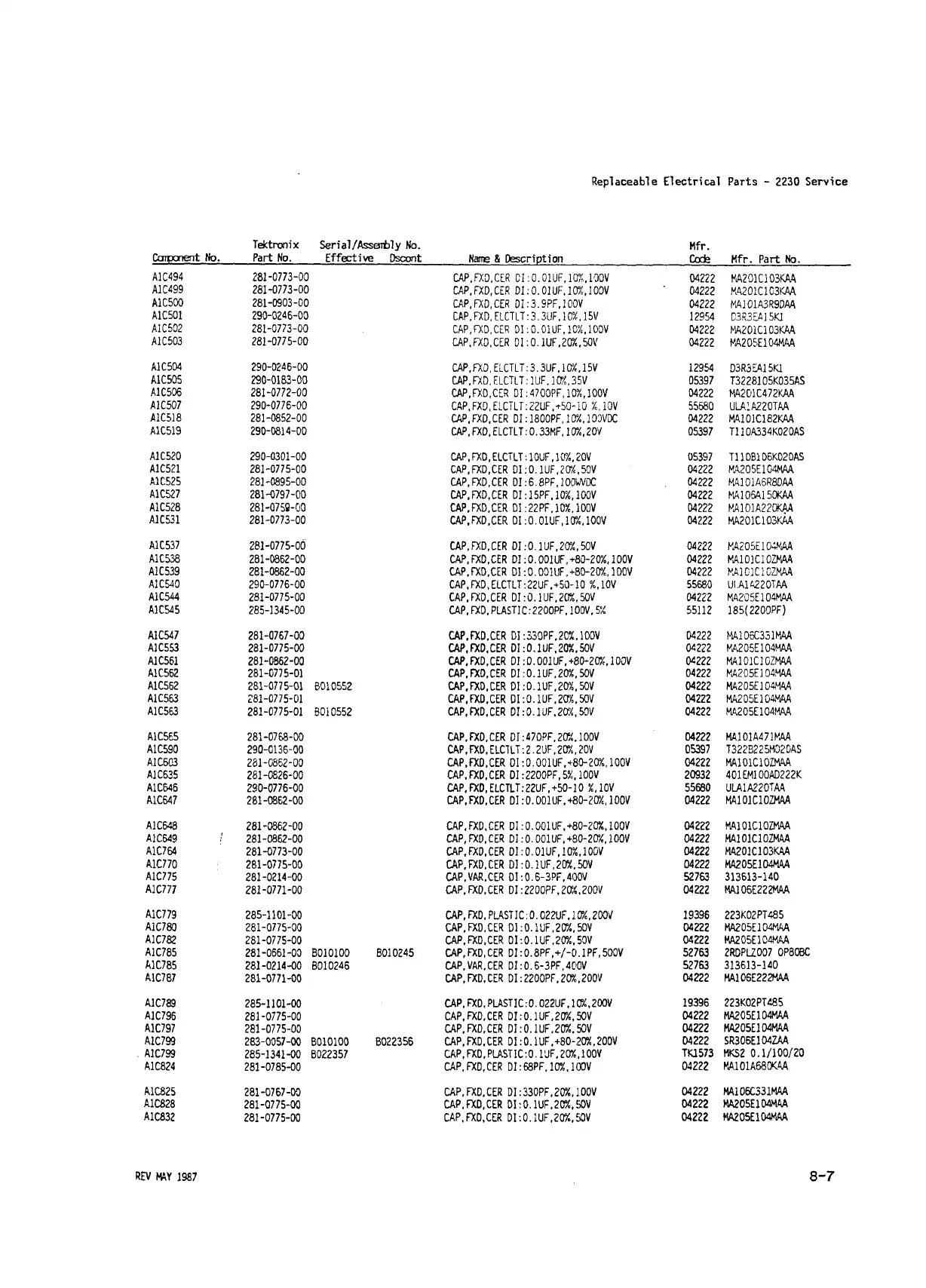

Replaceable Electrical Parts - 2230 Service
Tektronix Serial/Assarbly No. Mfr.
Ccnponent No.
Part No. E ffe c tiv e Dscont
Name & Description Cafe
M fr. P a rt No.
A1C494
281-0773-00
cap,fxd.cer C l:0 .01UF,10%,100V
04222
HA201C103KAA
A1C499
281-0773-00
CAP,FXD,CER DI:0.01UF.10%,100V
04222
MA201C103KAA
A1C500
281-0903-00
CAP, FXD.CER D I:3 .9PF, 100V
04222 MA101A3R9DAA
A1C501
290-0246-00
CAP,FXD,ELCTLT:3 .3UF,10%.15V
12954
D3R3EA15K1
A1C502 281-0773-00
CAP,TO,CER D I: 0.01UF,10%,100V
04222 MA201C103KAA
A1C503
281-0775-00
CAP,TO,CER DI :0.1UF,20%,50V
04222
MA205E104MAA
A1C504
290-0246-00
CAP,FXD,ELCTLT:3 .3UF,10%,15V 12954 D3R3E415K1
A1C505
290-0183-00
CAP.FXD,ELCTLT:1UF.10%,35V
05397
T3228105K035AS
A1C506
281-0772-00
CAP,TO,CER D I; 4700PF,10%,100V
04222
MA201C472KAA
A1C507
290-0776-00
CAP,FXD, ELCTLT: 22UF,+50-10 %, 10V 55680 ULAIA220TAA
A1C518
281-0852-00
CAP,TO,CER D I: 1800PF, 10%,103VDC 04222
MA101C182KAA
A1C519
290-0814-00
CAP,FXD,ELCTLT:0 .33MF,10%,20V 05397 T110A334K020AS
A1C520
290-0301-00
CAP.FXD,ELCTLT: 10UF,10%,20V 05397
T110B106K020AS
A1C521
281-0775-00
CAP,FXD.CER D I:0 .1UF,20%,50V
04222
MA205E104MAA
A1C525
281-0895-00
CAP,FXD,CER DI:6.8PF,100WVDC 04222
MA101A6R8DAA
A1C527
281-0797-00
CAP.FXD.CER D I: 15PF,10%,100V
04222
MAI 054150KAA
A1C528
281-0759-00
CAP,FXD,CER D I: 22PF,10%,100V 04222 MA101A220KAA
A1C531
281-0773-00
CAP.FXD,CER 01:Q.01UF,10%,100V
04222
MA201C103KAA
A1C537
281-0775-00
CAP,TO,CER DI:0.1UF,20%,50V
04222 KA205E104MAA
A1C538 281-0862-00
CAP,FXD.CER D I:0.001UF,+80-20%, 100V 04222 MA101C102MAA
A1C539
281-0862-00 CAP,TO,CER D I: 0.001UF,+80-20%, 100V 04222 KA101C10ZMAA
A1C540
290-0776-00
CAP,FXD,ELCTLT:22UF,+50-10 %,10V 55680
UI.A1A220TAA
A1C544
281-0775-00
CAP,FXD.CER D I:0 .1 UF,20%,50V
04222
MA205E104MAA
A1C545
285-1345-00 CAP.FXD,PLASTIC:2200PF,100V,5% 55112
185(2200PF)
A1C547
281-0767-00 CAP,FXD.CER DI:330PF,2CK,100V D4222 MA106C331MAA
A1C553
281-0775-00
CAP,FXD,CER DI:0.1UF,20%,50V
04222
MA205E104MAA
A1C561
281-0862-00
CAP. FXD,CER DI:D. 001UF,+80-20%,100V
04222
MA101C10ZMAA
A1C552 281-0775-01 CAP.FXD,CER DI:0.iUF,20%,50V 04222 MA205E104MAA
A1C562 281-0775-01 B010552 CAP.FXD,CER DI:0.1UF,20!%,50V
04222
MA205E104MAA
A1C563
281-0775-01
CAP.FXD,CER DI:0.1UF,20%,50V
04222
MA205E104MAA
A1C563
281-0775-01 8010552 CAP,FXD.CER DI:0.1UF,20%,50V
04222
MA205E104MAA
A1C565
281-0768-00 CAP.FXD,CER DI:470PF,20%,100V
04222
MA101A471KAA
A1C590
290-0136-00 CAP,TO,ELCTLT:2.2UF,20%,20V
05397
T322B225M02DAS
A1C603
281-0862-00
CAP,FXD,CER DI:0.001UF,+80-20%,100V
04222
KA101C10ZMAA
A1C635
281-0826-00
CAP.FXD,CER DI:2200PF,5%,100V 20932
401EM100AD222K
A1C546
290-0776-00
CAP,FXD,ELCTLT:22UF,+50-10 %,10V
55680 ULA1A220TAA
A1C647
281-0862-00
CAP,FXD,CER DI :0.001UF,+80-20%,100V
04222
MA101C10ZMAA
A1C648
281-0862-00
CAP,FXD,CER D I:0 .001UF,+80-20%,100V
04222
KA101C10ZMAA
A1C649 ;
281-0862-00 CAP,FXD,CER D I:0 .001UF,+80-20%,100V
04222 MA101C10ZMAA
A1C764
281-0773-00
CAP.FXD,CER DI:0.01UF,10%,100V
04222 MA201C103KAA
A1C770
281-0775-00 CAP,FXD,CER DI :0.1UF,20%,50V
04222 MA205E104MAA
A1C775
281-0214-00
CAP,VAR,CER DI:0.6-3PF,400V
52763
313613-140
A1C777
281-0771-00
CAP.FXD,CER DI:2200PF,20%,200V
04222
MA106E222MAA
A1C779
285-1101-00 CAP.FXD,PLASTIC:0 .022UF,10%,200V 19396
223K02PT485
A1C780
281-0775-00 UP,TO,CER D I:0 .1UF,20%, 50V
04222
MA205E104MAA
A1C782
281-0775-00
CAP.FXD,CER DI:0.1UF,20%,50V
04222
MA205E104HAA
A1C785
281-0661-00 B010100 B010245 CAP,FXD,CER DI:0.8PF,+/-0.1PF,500V 52763
2RDPLZ007 OP808C
A1C785
281-0214-00 B010246
CAP,VAR,CER DI:0.6-3PF,400V 52763
313613-140
A1C787
281-0771-00
CAP,FXD.CER D I:2200PF,20%.200V
04222
MA106E222MAA
A1C789
285-1101-00
CAP,FXD,PLASTIC:0.022UF,10%,200V
19396
223K02PT485
A1C796
281-0775-00
CAP,FXD.CER DI:0.1UF,20%,50V
04222
MA205E104MAA
A1C797
281-0775-00
CAP,FXD.CER DI:0.1UF,20%,50V
04222
MA205E104MAA
A1C799
283-0057-00 8010100 B022356
CAP,FXD.CER DI:0.1UF,+80-20%,200V
04222
SR305E104ZAA
A1C799
285-1341-00 B022357
CAP,TO,PLASTIC:0.1UF,20%,100V
TK1573 MKS2 0.1/100/20
A1C824
281-0785-00
CAP.FXD,CER DI:68PF,10%.100V
04222 MA101A680K4A
A1C825
281-0767-00
CAP,FXD.CER DI:330PF,20%,100V
04222 MA106C331MAA
A1C828
281-0775-00 CAP.FXD,CER D I:0 .1UF,20%,50V
04222 MA205E104MAA
A1C832
281-0775-00
CAP,FXD.CER DI:0.1UF,20%,50V
04222
MA205E104MAA
REV MAY 1987
8 -7
