Tektronix 2230

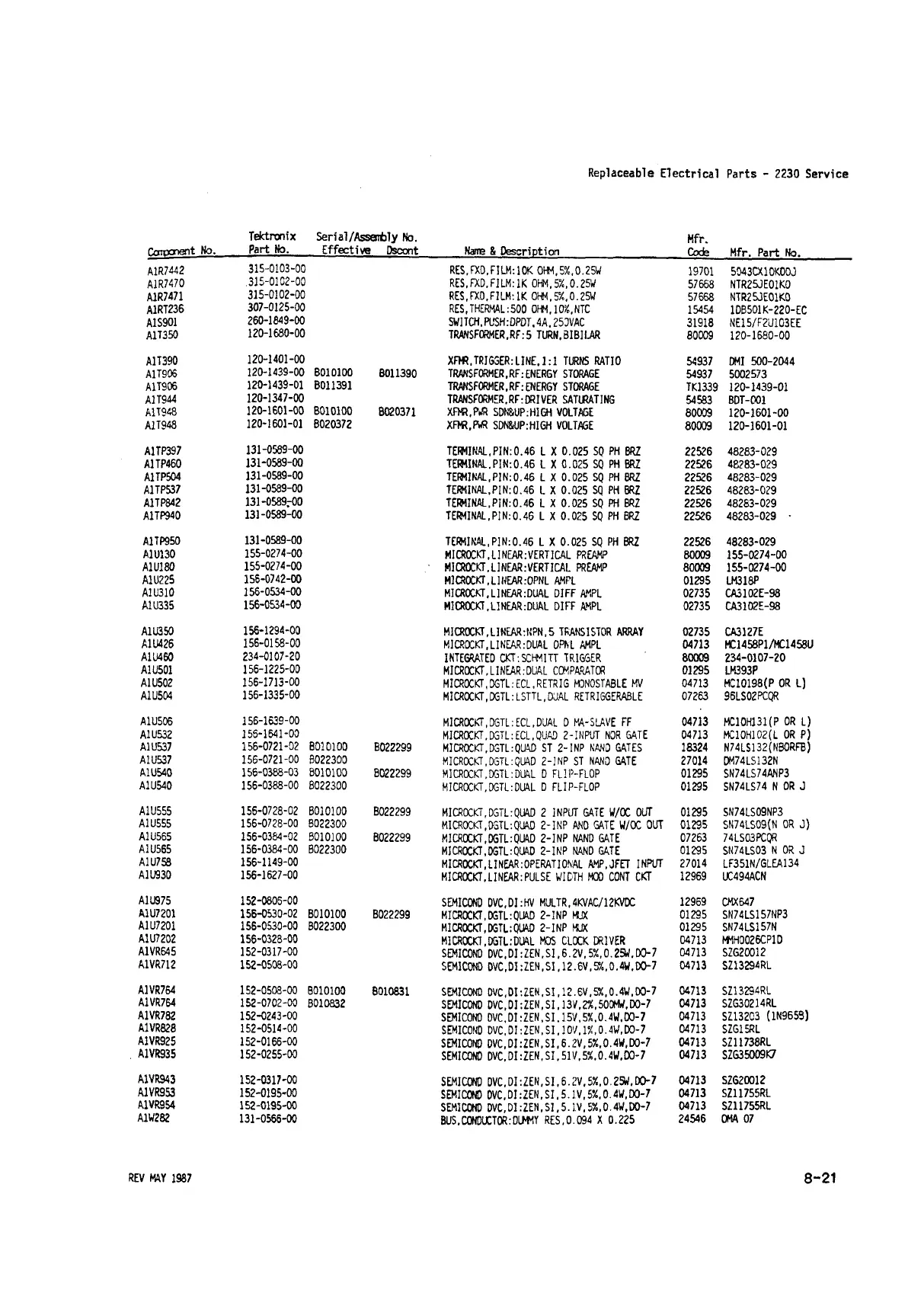

Replaceable Electrical Parts - 2230 Service
Te ktronix S erial/A ssen b ly No. Mfr,
Component No.
Part No. E ffe ctiv e
Dscont
Name & D escription
Code
M fr. P art No.
A1R7442
315-0103-00
RES.FXD.FILM: 10K 0HM,5”/,,0.25W
19701
5043CX10K00J
A1R7470
.315-0102-00
RES,RD.FILM:IK 0HM,5%,0.25W
57668
NTR25JE01KO
A1R7471
315-0102-00
RES,FX0,FILM:1K 0FM,5%,0.25W
57668 NTR25JE01K0
A1RT236
307-0125-00
RES,THERMAL:500 OHM.IOMTC
15454
1DB501K-220-EC
A1S901
260-1849-00
SWITCH, PUSH:DPDT,4A,250VAC
31918
NE15/F2UI03EE
A1T350
120-1680-00
TRANSFORMER,RF:5 TURN.6IBILAR
80009
120-1680-00
A1T390
120-1401-00
XFMR,TRJGGER:LINE,1:1 TURNS RATIO
54937 DMI 500-2044
A1T906
120-1439-00 8010100
6011390 TRANSFORMER.RF:ENERGY STORAGE
54937 5002573
A1T906
120-1439-01 8011391
TRANSFORMER.RF:ENERGY STORAGE
TK1339
120-1439-01
A1T944
120-1347-00
TRANSFORMER.RF:DRIVER SATURATING
54583
BDT-P01
A1T948
120-1601-00 8010100
8020371
XFHR.PWR SDN&UP:H1GH VOLTAGE
80009
120-1601-00
A1T948
120-1601-01 B020372
XFMR.PWR SDN&UP:HIGH VOLTAGE
80009 120-1601-01
A1TP397
131-0589-00
TERMINAL,PIN:0.46 L X 0.025 SO PH BRZ 22526
48283-029
A1TP460
131-0589-00
TERMINAL.PIN:0.46 L X 0.025 SQ PH BRZ 22526
48283-029
A1TP504
131-0589-00
TERMINAL,PIN:0.46 L X 0.025 SQ PH BRZ
22526 48283-029
A1TP537
131-0589-00
TERMINAL,PIN:0.46 L X 0.025 SQ PH BRZ 22526 48283-029
A1TP842
131-0589.-00
TEWINAL,PIN:0.46 L X 0.025 SQ PH BRZ 22526
48283-029
A1TP940
131-0589-00
TERMINAL,PIN:0.46 L X 0.025 SQ PH BRZ 22526
48283-029 •
A1TP950
131-0589-00
TEWINAL, PIN:0.46 L X 0.025 SQ PH BRZ
22526
48283-029
A1U130
155-0274-00
MICROCKT, LI NEAR: VERTICAL PREAMP
80009
155-0274-00
A1U180
155-0274-00
MICRXKT, LINEAR.-VERTICAI. PREAMP
80009
155-0274-00
A1U225
156-0742-00
Ml CROCK!, LI NEAR: OPNL AMPL
01295
LM318P
A1U310
156-0534-00
MICROCKT,L1NEAR:DUAL DIFF AMPL 02735
CA3102E-98
A1U335
156-0534-00
MICROCKT,LINEAR:DUAL DIFF AMPL
02735
CA3102E-98
A1U350
156-1294-00
MICROCKT,LINEAR:NPN,5 TRANSISTOR ARRAY 02735
CA3127E
A1U426
156-0158-00
MICRSXKT, LI NEAR: DUAL OPN L AMPL 04713
MC1458P1/MC1458U
A1U460
234-0107-20
INTEGRATED CKT-.SCHMITT TRIGGER
80009 234-0107-20
A1U501
156-1225-00
MICRXKT, LI NEAR: DUAL COMPARATOR
01295
LM393P
A1U502
156-1713-00
MICROCKT,DGTL:ECL,RETRIG MONOSTABLE MV
04713
MC10198(P OR L)
A111504
156-1335-00
MICRXKT,DGTL:LSTTL,DUAL RETRIGGERABLE
07263
96LS02PCQR
A1U506
156-1639-00
MlCRXKT, DGTL: ECL, DUAL D M4-SL4VE FF
04713
MC10H131(P OR L)
A1U532
155-1641-00
MICRXKT, DGTL: tCL,QUAD 2 -INPUT NOR GATE
04713 MC10H102(L OR P)
A1U537
156-0721-02 B010100
B022299
MI CRXKT, DGTL: QUAD ST 2-INP NANO GATES
18324 N74LS132(NBORFB)
A1U537
156-0721-00 B022300
MICRXKT,DGTL:QUAD 2-INP ST NANO GATE
27014 DM74LS132N
A1U540
156-0388-03 B010100
B022299
MICRXKT,DGTL:DUAL D FLIP-FLOP
01295
SN74LS74ANP3
A1U540
156-0388-00 8022300
MICRXKT,DGTL:DUAL D FLIP-FLOP
01295
SN74LS74 N OR J
A1U555
156-0728-02 B010100
B022299
MICRXKT,DGTL:QUAD 2 INPUT GATE W /X OUT
01295
SN74LS09NP3
A1U555
156-0728-00 8022300
MICRXKT,DGTL-.QUAD 2-INP AND GATE W /X OUT
01295 SN74LS09(N OR J)
A1U565 156-0384-02 B010100
B022299
MI CRXKT, DGTL: QUAD 2-INP NAND GATE
07263 74LS03PCQR
A1U565
156-0384-00 B022300
MI CRXKT, DGTL: QUAD 2-INP NAND GATE
01295 SN74LS03 N OR J
A1U758 156-1149-00
MICRXKT,LINEAR:OPERATIOMAL AMP.JFET INPUT
27014
LF351N/GLEA134
A1U930 156-1627-00
MICRXKT,LINEAR:PULSE WIDTH MX CONT CKT
12969 X494ACN
A1U975 152-0805-00
SEMICO® DVC.DI :HV MULTR, 4KVAC/12KVX
12969 CMX647
A1U7201 156-0530-02 B010100
B022299
MICRXKT,DGTL:QUAD 2-INP MUX
01295
SN74LS157NP3
A1U7201
156-0530-00 B022300
MICROCKT,DGTLiQUAD 2-INP MUX
01295
SN74LS157N
A1U7202
156-0328-00
MICROCKT,DGTL.’DUAL MOS CLXK DRIVER
04713 WM1026CP1D
A1VR645 152-0317-00
SEMICOND DVC,DI:ZEN,SI,6.2V,5%,0.25W.DO-7
04713 S2G2X12
A1VR712
152-0508-00
SEMICO® DVC.DI:ZEN,SI,12.6V,SX,0,4W,D0-7
04713
SZ13294RL
A1VR764
152-0508-00 B010100
B010831 SEMICO® DVC.DI:ZEN.SI ,12.6V,S%,0.4W,D0-7
04713 SZ13294RL
A1VR764
152-0702-00 B01O832
SEMICOND DVC,DI:ZEN,SI,13V,2%,500MW,DO-7
04713
SZG30214RL
A1VR782
152-0243-00
SEMICO® DVC.DI:ZEN,$I,15V,5%,0.4W,D0-7
04713
SZ13203 (1N9653)
A1VR828 152-0514-00
SEMICOND DVC.DI:ZEN,SI ,10V,lJ£,0.4W,DO-7
04713 SZG15RL
A1VR925 152-0166-00
SEMICO® DVC.DI:ZEN,SI,6.2V,5%,0.4W,DO-7
04713 SZ11738RL
A1VR935 152-0255-00
SEMICO® DVC.DI:ZEN,SI,51V,5%,0.4W,D0-7
04713
SZG35009K7
A1VR943
152-0317-00
SEMICO® DVC.DI:ZEN,SI,6 .2V,5%,0.257,DO-7
04713 SZG20012
A1VR953 152-0195-00
SEMICO® 0VC,DI:ZEN,SI,5.3.V,5%,0.4W,DO-7
04713 SZ11755RL
A1VR954 152-0195-00
SEMICO® DVC.DI :ZEN,SI ,5. IV,5%,0.4W,DQ-7
04713 SZ11755RL
A1W282
131-0566-00
BUS,COTOXTOR:DIMMY RES,0.094 X 0.225
24546 OMA 07
REV MAY 1987
8-21
