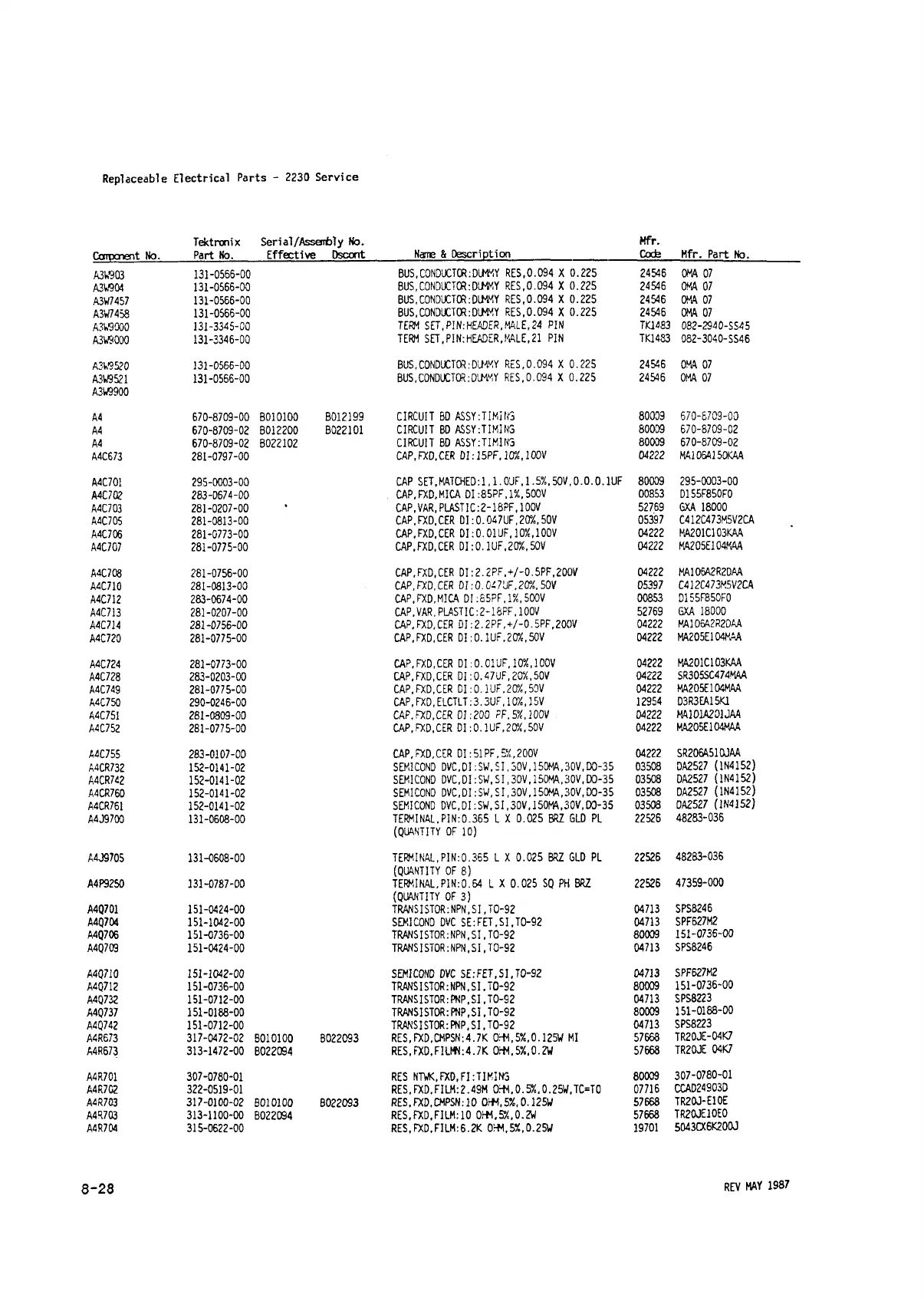

Replaceable Electrical Parts - 2230 Service
Tektronix Serial/Assenfcly No. Hfr.
Ccnoanent No.
Part No. E ffe c tiv e
Dscont
Name & D escrip tion
Code
M fr. Part No.
A3W903
131-0556-00
BUS,CONDUCTOR:DUMMY RES,0.094 X 0.225 24546 OMA 07
A3W904
131-0556-00
BUS,CONDUCTOR:DUMMY RES,0.094 X 0.225 24546
OKA 07
A3W7457
131-0565-00
BUS,CONDUCTOR:DUMMY RES,0.094 X 0.225 24546
OKA 07
A3W7458
131-0565-00
BUS,CONDUCTOR:DUMMY RES,0.094 X 0.225 24546
OKA 07
A3W9000
131-3345-00
TERM SET,PIN:HEADER,MALE,24 PIN
TK1483
082-2940-SS45
A3W9000
131-3346-00
TERM SET,PIN:HEADER,MALE,21 PIN
TK1483
082-3040-SS46
A3W9S20
131-0565-00
BUS,CONDUCTOR:DUMMY RES,0.094 X 0.225 24546
OKA 07
A3VS521
A3W9900
131-0555-00
BUS,CONDUCTOR:DUMMY RES,0.094 X 0.225 24546 OKA 07
A4
670-8709-00 B010100
B012199
CIRCUIT BO ASSY:TIM I113
80009
670-8709-00
A4 670-8709-02 B012200
B022101
CIRCUIT BO ASSY:TIMIN3
80009
670-8709-02
A4 670-8709-02 B022102
CIRCUIT BO ASSY: TIM IN3
80009 670-8709-02
A4C673
281-0797-00
CAP.FXD.CER DI:15PF,10%100V
04222
MAI 0641SOKAA
A4C701 295-0003-00
CAP SET,KATCHED:1,1.OUF,1.5%,50V.0.0.0.1UF
80009
295-0003-00
A4C702
283-0674-00
CAP,FXD,MICA DI :85PF,rX, 500V
00853
D155F850F0
A4C703
281-0207-00
CAP,VAR,PLASTIC:2 -18PF.100V 52769 6XA 18000
A4C705
281-0813-00
CAP.FXD.CER DI:0.047UF,20%,50V
05397 C412C473M5V2CA
A4C706
281-0773-00
CAP.FXD.CER D I:0 .01UF,10%,100V
04222
MA201C103KAA
A4C707
281-0775-00
CAP.FXD.CER D I:0.1U F,20%,50V 04222
K4205E104K4A
A4C708
281-0756-00
CAP.FXD.CER DI:2.2PF,+/-0.5PF,200V
04222 HA106A2R2DAA
A4C710 281-0813-00
CAP.FXD.CER DI:0.047UF,20%,50V
05397
C412C473M5V2CA
A4C712
283-0674-00
CAP,FXD,MICA DI:S5PF,1%,500V
00853 D155F850F0
A4C713
281-0207-00
CAP,VAR,PLASTIC:2 -1SPF,100V 52769
GXA 18000
A4C714 281-0755-00
CAP. FXD,CER D I: 2 .2PF,+ /- 0 .5PF,200V
04222
MA10642R2DAA
A4C720
281-0775-00
CAP.FXD.CER D I:0 .1 UF.20%,50V
04222
MA205E104K4A
A4C724 281-0773-00
CAP.FXD.CER D I:0 .01UF,10%,100V
04222
MA201C103KAA
A4C728
283-0203-00
CAP.FXD.CER DI:0.47UF,20%,50V
04222
SR305SC474KAA
A4C749 281-0775-00
CAP.FXD.CER D I:0 .iU F ,20%,50V 04222
KA205E104MAA
A4C750 290-0246-00
CAP, FXD, ELCTLT :3 .3UF,10%,15V
12954 D3R3EA15K1
A4C751
281-0809-00
CAP.FXD.CER 01:200 FF,5%,100V 04222
MA101A201JAA
A4C752
281-0775-00
CAP.FXD.CER 0 1:0 .1UF,20%,50V
04222
MA205E104HAA
A4C755 283-0107-00
CAP.FXD.CER 01:51PF,5%,200V
04222
SR206A510JAA
A4CR732
152-0141-02
SEMI COND DVC, D I:SW, S1,30V,150MA,30V,DO-35
03508
DA2527 (1N4152)
A4CR742
152-0141-02
SEMICOND DVC,DI:SW, SI,30V,150MA,30V,DO-35 03508
DA2527 (1N4152)
A4CR760 152-0141-02
SEMICOND DVC,D I: SW, S1,30V,150MA,30V,DO-35 03508
DA2527 (1N4152)
A4CR761
152-0141-02
SEMICOND DVC,DI:SW,SI,30V,150MA,30V,DO-35
03508
DA2527 (1N4152)
A4J9700 131-0608-00
TERMINAL,P1N:0.365 L X 0.025 BRZ GLD PL
(QUANTITY OF 10)
22526
48283-035
A4J9705 131-0608-00
TERMINAL,P!N:0.365 L X 0.025 BRZ GLD PL
(QUANTITY OF 8)
22526
48283-036
A4P92S0 131-0787-00
TERM,INAL,PIN:0.64 L X 0.025 SQ PH BRZ
(QUANTITY OF 3)
22526
47359-000
A4Q701
151-0424-00 TRANSISTOR:NPN,SI,T0-92
04713
SPS8246
A4Q704
151-1042-00
SEMICOND DVC SE:FET.SI,T0-92
04713
SPF627M2
A4Q706 151-0736-00 TRANSISTOR:NPN, S I, TO-92
80009
151-0736-00
A4Q709
151-0424-00
TRANSISTOR:NPN,SI .TO-92
04713
SPS8246
A4Q710 151-1042-00
SEMICOND DVC SE.-FET,SI,TO-92
04713
SPF627M2
A4Q712
151-0736-00 TRANSISTOR:NPN,SI.TO-92
80009
151-0736-00
A4Q732
151-0712-00 TRANSISTOR:PNP,SI,TO-92
04713
SPS8223
A4Q737
151-0188-00
TRANSISTOR:PNP,SI,TO-92
80009
151-0188-00
A4Q742
151-0712-00
TRANSISTOR:PNP,SI,TO-92
04713
SPS8223
A4R673
317-0472-02 B010100 B022093
RES,FXD,CMPSN:4.7K OFM,5%,0.125W MI
57568
TR20JE-04K7
A4R673
313-1472-00 B022094 RES,FXD,FILMN:4. 7K OrM,5%,0.2W
57668
TR20JE 04K7
A4R701 307-0780-01 RES NTWK,FX0,FI:TIM1N3
80009
307-0780-01
A4R702 322-0519-01
RES,FXD,FILM:2.49M O*t,0.5%,0.25W,TC=T0
07716
CCAD24903D
A4R703 317-0100-02 B010100
B022093
RES,FXD,CMPSN:10 OHM,5%,0.125W 57668
TR20J-E10E
A4R703 313-1100-00 B022094
RES,FXD,FILM:10 OhM.5%,0.2W
57688
TR20JE10E0
A4R704
315-0622-00
RES,FXD,FILM:6.2K 0:-W,5%,0.25W
19701
5043CX6K200J
8-28
REV MAY 1387
