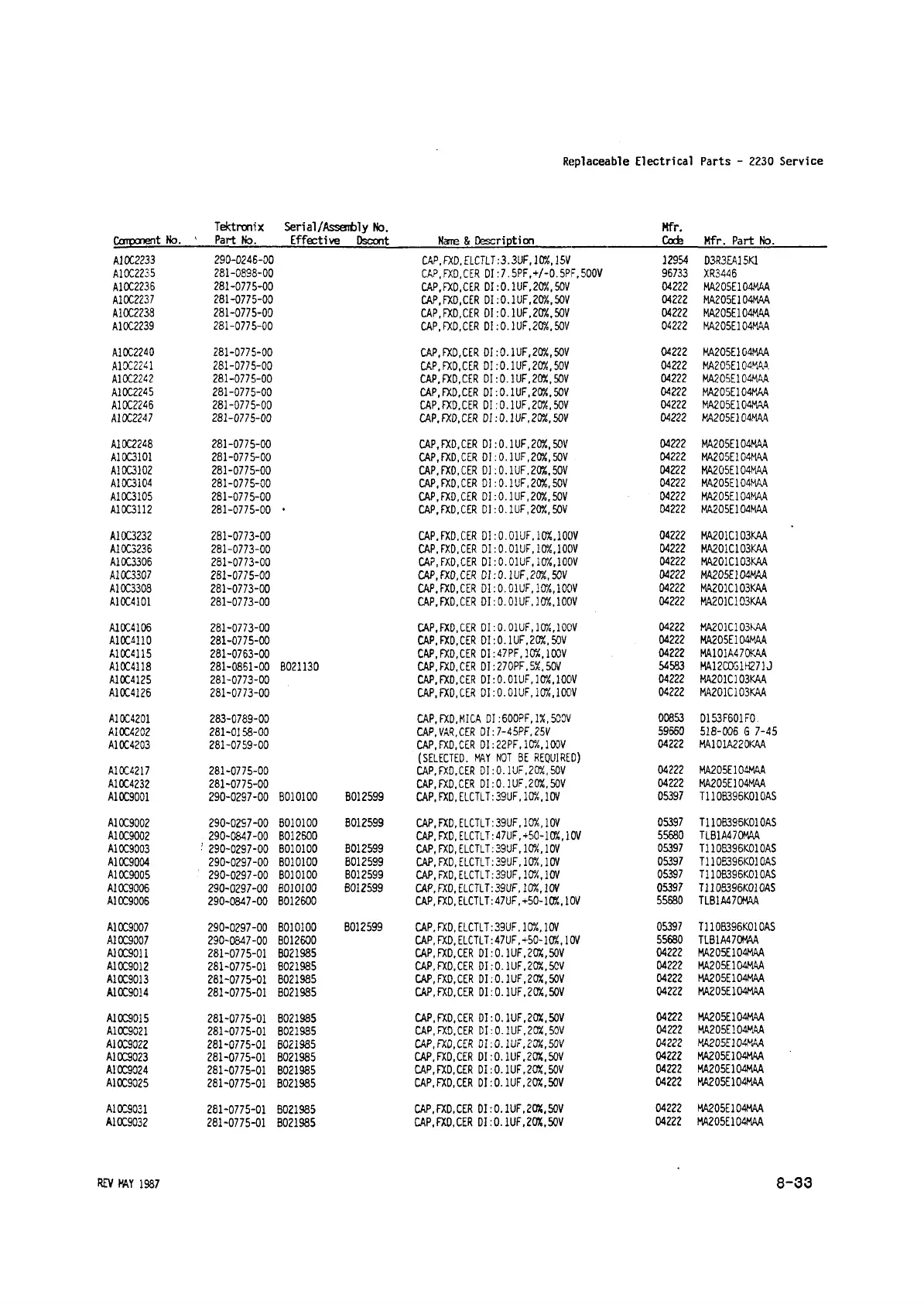

Tektronix 2230 - Page 306

Replaceable Electrical Parts - 2230 Service
Tektronix Serial/Asssibly No. Hfr.
Canxnent No. ' Part No. E ffe c tiv e
Dscont
Name & D escrip tion
Code
K fr. Part No.
A10C2233
290-0246-00 CAP, FX D ,E LC T LT :3.3U F,10%,15V
12954
D3R3EA15K1
A10C2235
281-0898-00 CAP,FXD,CER D I:7 .5PF.+/-0.5PF,500V 96733 XR3446
A10C2236 281-0775-00
CAP,FXD, CER D I:0.1 UF,20%,50V
04222 MA205E104MAA
A10C2237
281-0775-00 CAP,FXD,CER DI:0.1UF,20%,50V
04222
HA205E104MAA
A10C2238 281-0775-00 CAP,FXD,CER 0 1:0 .1UF,20%,50V
04222
MA205E104MAA
A10C2239 281-0775-00 CAP,FXD,CER DI:0.1UF,20%,50V
04222
MA205E104MAA
A10C2240 281-0775-00 CAP,FXD,CER DI:0.1UF,20%,50V
04222
HA205E104MAA
A10C2241
281-0775-00
CAP,FXD,CER D I:0.1U F,20%,50V
04222
MA205E104HAA
A10C2242
281-0775-00 CAP,FXD,CER D I:0 .1 UF,20%,50V
04222 HA205E104MAA
A10C2245
281-0775-00 CAP,FXD,CER D I:0 .1UF,20%.50V
04222 MA205E104MAA
A10C2246
281-0775-00 CAP,FXD,CER D I:0 .1UF,20%,50V
04222
MA205E104MAA
A10C2247
2 8 1 -0 7 7 5 -0 0
CAP.FXD,CER DI:0.1UF,20%,50V
04222
MA205E104MAA
A10C2248 281-0775-00 CAP,FXD,CER D I:0 .1 UF,20%,50V
04222
MA205E104MAA
A10C3101
281-0775-00
CAP,FXD,CER D I:0 .1UF,20%,50V
04222
MA205E104M4A
A10C3102 281-0775-00
CAP,FXD,CER D I: 0.1UF,20%,50V
04222
KA205E104K4A
A10C3104
281-0775-00
CAP,FXD,CER D I:0 .1UF,20%,50V
04222
MA205E104MAA
A10C3105
281-0775-00
CAP,FXD,CER D I:0.1U F,20%,50V
04222 MA205E104MAA
A10C3112
281-0775-00 •
CAP,FXD,CER DI:0.1UF,20%,50V
04222 MA205E104MAA
A10C3232
281-0773-00
CAP,FXD,CER D I: 0 .01UF,10%,10DV 04222 KA201C103KAA
A10C3236
281-0773-00
CAP,FXD,CER D I: 0 .01UF,10%,10DV
04222 MA201C103KAA
A10C3306
281-0773-00
CAP,FXD,CER D I:0 .01UF,10%,100V
04222
MA201C103KAA
A10C3307
281-0775-00
CAP,FXD,CER DI;0.1UF,20%,50V
04222
MA205E104MAA
A10C3308
281-0773-00
CAP,FXD,CER D I:0 .01UF,10%,100V
04222 MA201C103KAA
A10C4101
281-0773-00
CAP,FXD,CER D I: 0.01 UF, 10%, 10CIV 04222 MA201C103KAA
A10C4106 281-0773-00
CAP,FXD,CER D I:0 .01UF,10%,100V
04222
MA201C103KAA
A1X4110 281-0775-00
CAP,FXD,CER D I:0 .1UF,20%,50V
04222
HA205E104MAA
A10C4U5
281-0763-00
CAP,FXD,CER D I:47PF,10%,100V
04222
MA101A470KAA
A10C4118
281-0851-00 B021130
CAP,FXD,CER D I:27OPF,55£,50V
54583 MA12COG1H271J
A1X4125 281-0773-00
CAP.FXD.CER 01:0 .01UF,10%.100V
04222
HA201C103KAA
A1X4126 281-0773-00
CAP,FXD,CER D I:0 .01UF,10%,100V
04222
MA201C103KAA
A1X4201
283-0789-00
CAP,FXD,MICA DI:600PF,1%,500V
00853
D153F601FO-
A1X4202 281-0158-00
CAP,VAR,CER D1:7-45PF,25V
59550
518-006 G 7-45
A1X4203 281-0759-00
CAP.FXD.CER D I:22PF,10%.100V
(SELECTED. MAY NOT BE REQUIRED)
04222
MA101A220KAA
A1X4217 281-0775-00
CAP.FXD.CER D I:0 .1UF,20%,50V
04222 MA205E104MAA
A1X4232 281-0775-00
CAP.FXD.CER DI:0.IUF.20%,50V
04222 HA205E104MAA
A1X9001 290-0297-00 B010100
B012599
CAP,FXD,ELCTLT:39UF,10%,10V
05397
T110B396K010AS
A1X9002 290-0297-00 B010100
B012599 CAP,FXD,ELCTLT: 39UF,10%,10V
05397
T110B395K010AS
A10C9002
290-0847-00 B012600 CAP,FXD,ELCTLT:47UF,+50-10%,10V
55680 TLB1A470MAA
A1X9003 ■ 290-0297-00 B010100
B012599 CAP, FXD,ELCTLT:39UF,10%,10V
05397
T110B396K010AS
A1X9004 290-0297-00 B010100
B012599 CAP, FXD,ELCTLT:39UF,10%,10V
05397
Til0B396K01OAS
A1X9005 290-0297-00 B010100
B012599 CAP, FXD,ELCTLT:39UF,10%,10V
05397
Til0B395K01OAS
A10C9006 290-0297-00 B010100
8012599 CAP, FXD,ELCTLT:39UF,10%,10V
05397
T110B396K010AS
A1X900S 290-0847-00 B012600
CAP, FXD,ELCTLT:47UF,+50-10%,10V
55680 TLB1A470MAA
A10C9007
290-0297-00 B010100
B012599 CAP, FXD,ELCTLT:39UF,10%,1OV
05397
T110B396K010AS
A10C9007
290-0847-00 B012600
CAP,FXD,ELCTLT:47UF,+50-10%,10V
55680 TLB1A470HAA
A10C9011
281-0775-01 B021985
CAP.FXD.CER DI:0.1UF,20%,50V
04222
HA205E104MAA
A10C9012 281-0775-01 B021985
CAP.FXD.CER DI:0.1UF,20%.5CV
D4222 MA205E104MAA
A1X9013 281-0775-01 B021985
CAP.FXD.CER D I:0 .1UF,20%,50V
04222
MA205E104MAA
A1X9014
281-0775-01 B021985
CAP.FXD.CER D I:0 .1UF,20%,50V
04222
MA205E104MAA
A10C9015 281-0775-01 B021985
CAP.FXD.CER D I:0 .1UF,20%,50V
04222 HA205E104MAA
A1X9021
281-0775-01 B021985
CAP.FXD.CER D I:0 .1UF,20%,50V
04222
MA205E104MAA
A1X9022 281-0775-01 B021985
CAP,FXD,CER 0 1 :0 .1UF,20%,50V
04222 KA205E104MAA
A1X9023 281-0775-01 B021985
CAP.FXD.CER D I:0 .1UF,20%,50V
04222
HA205E104HAA
A10C9024
281-0775-01 B021985
CAP.FXD.CER DI:0.1UF,20%,50V
04222
HA205E104MAA
A1X9025
281-0775-01 B021985
CAP.FXD.CER DI:0.1UF,20%,50V
04222
HA205E104HAA
A10C9031 281-0775-01 B021985
CAP.FXD.CER DI:0.1UF,20%,50V
04222
MA205E104MAA
A1X9032
281-0775-01 B021985
CAP.FXO.CER DI:0.1UF,20%,50V
04222
MA205E104MAA
