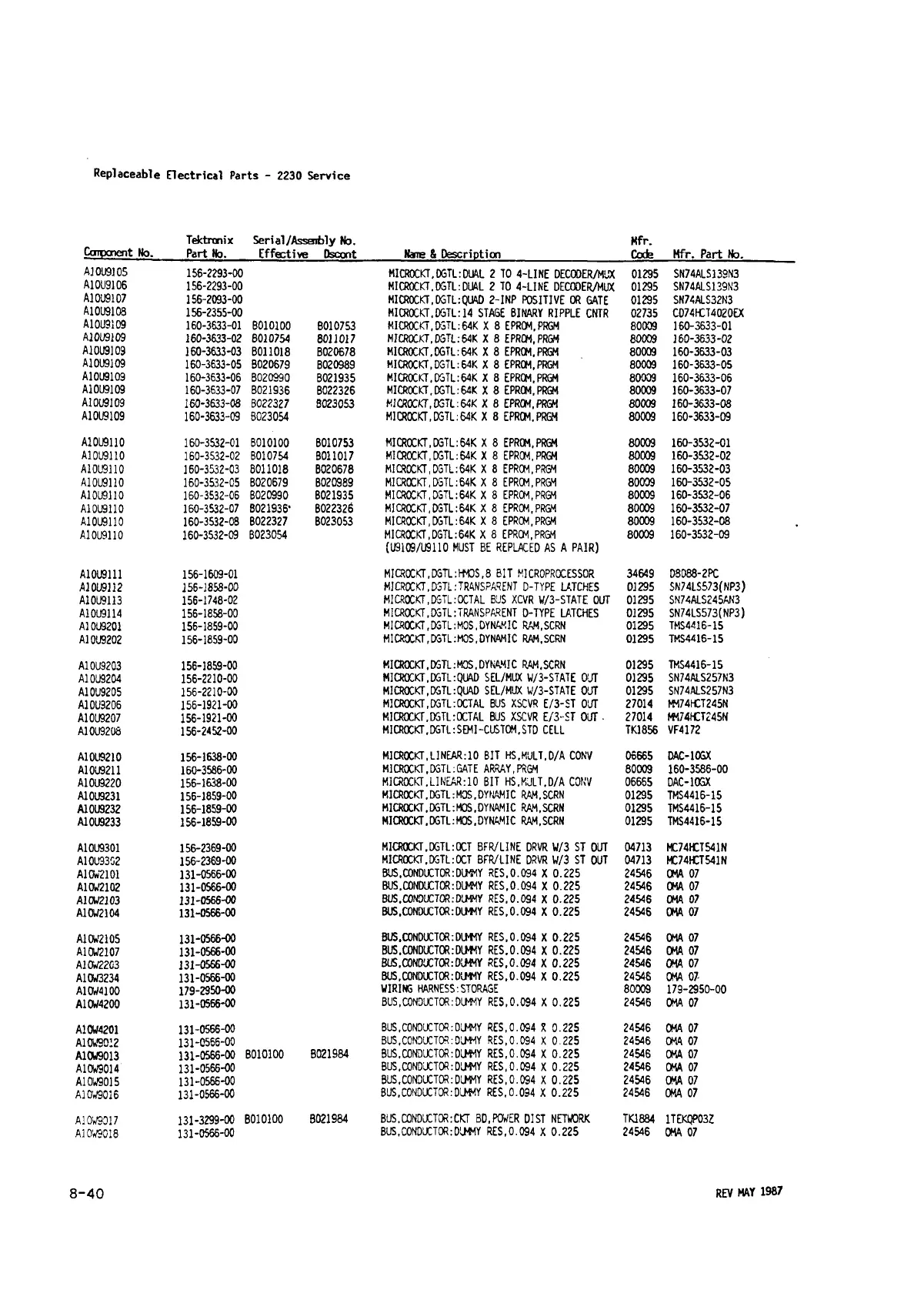

Replaceable Electrical Parts - 2230 Service
Ccnconent No.
Tektronix
Serial/Assaifaly No.
H fr.
Part No.
E ffective
Dscont Name & Description Code H fr. Part No.
A] 0119] OS
156-2293-00
MICROCKT,DGTL: DUAL 2 TO 4-LINE DECODER/MUX 01295
SN74ALS139N3
A10U9106
156-2293-00
MICROCKT,DGTL:DUAL 2 TO 4-LINE DECODER/MUX 01295 SN74ALS139N3
A10L8107
156-2093-00
MICROCKT,DGTL:QUAD 2-INP POSITIVE OR GATE
01295 SN74ALS32N3
A10U9108
156-2355-00
MICROCKT.OGTL:14 STA6E BINARY RIPPLE CNTR
02735
CD74HGT4020EX
A10US109
160-3633-01
8010100
B010753 KICROCKT,DSTL:64K X 8 EPROM.PRGM 80009 160-3633-01
A10U9109
160-3633-02 B010754
8011017
MICROCKT,DSTL:64K X 8 EPROM,PRGM
80009 160-3633-02
A10U9109
160-3633-03
B011018 B020678
MICROCKT,DGTL:64K X 8 EPROM,PRGM 80009
160-3633-03
A10U9109
160-3633-05 B020679
B020989
MICROCKT, DGTL:64K X 8 EPROM,PRGM 80009 160-3633-05
A10U9109
160-3633-06
B020990
B021935
KICROCKT,DGTL:64K X 8 EPROM.PRGM 80009
160-3633-06
A10U9109 160-3633-07
B021936 B022326
HICR0CKT,DGTL:64K X 8 EPROM,PRGM
80009 160-3633-07
A10U9109
160-3633-08
B022327
B023053
KICR0CKT,D5TL:64K X 8 EPROM.PRGM
80009 160-3633-08
A101S109
160-3633-09 B023054 MICRXKT, DSTL :64K X 8 EPROM.PRGM
80009
160-3633-09
A10U9110 160-3532-01
B010100 B010753
KICROCKT,DGTL:64K X 8 EPROM.PRGM
80009
160-3532-01
A10U9110 160-3532-02 B010754
B0U 017
MICR0CKT,DSTL:64K X 8 EPROM,PRGM 80009
160-3532-02
A10U9110
160-3532-03
8011018
B020678
MICROCKT,DGTL:64K X 8 EPROM,PRGM 80009
160-3532-03
A10U9110
160-3532-05
B020679
B020989
MICRXKT, DGTL :64K X 8 EPROM,PRGM 80009
160-3532-05
A10U9110 160-3532-06 B020990 B021935
MICROCKT,DGTL:64K X 8 EPROM,PRGM
80009
160-3532-06
A10U9110
160-3532-07
B021936’
B022326
MICROCKT,DGTL:64K X 8 EPROM,PRGM
80009
160-3532-07
A10U91I0
160-3532-08 B022327 B023053
MICRXKT, DGTL :64K X 8 EPROM, PRGM 80009 160-3532-08
A10U9110 160-3532-09 B023054
MICRXKT,DGTL:64K X 8 EPROM,PRGM
(U9109/U9110 MUST BE REPLACED AS A PAIR)
80009 160-3532-09
A10U9111
156-1609-01
MICRXKT,DGTL:HM3S,8 BIT MICROPRXESSOR
34649 D8088-2PC
A10U9I12
156-1858-00
MJCRXKT,DGTL:TRANSPARENT D-TYPE LATCHES
01295
$N74LS573(NP3)
A10U9113
156-1748-02 MICRXKT,D3TL:XTAL BUS XCVR W/3-STATE OUT 01295
SN74ALS245AN3
A10U9114 156-1858-00
MICRXKT, DGTL TRANSPARENT D-TYPE LATCHES
01295
SN74LS573(NP3)
A10U9201
156-1859-00
MICRXKT,DGTL:MOS, DYNAMIC RAM.SCRN
01295
TMS4416-15
A10U9202
156-1859-00
M1CRXKT,DGTL:M0S,DYNAMIC RAM.SCRN
01295
TMS4416-15
A101)9203
156-1859-00
MICRXKT,DGTL:MOS,DYNAMIC RAM.SCRN
01295
TKS4416-15
A10U9204 156-2210-00
MICRXKT,DGTL:QUAD SEL/MUX W/3-STATE OUT
01295
SN74ALS257N3
A10U9205
156-2210-00
MICRXKT,DGTL:QUAD SEL/MUX W/3-STATE OUT 01295
SN74ALS257N3
A101)9206
156-1921-00
MICRXKT, DGTL:XTAL BUS XSCVR E/3-ST OUT
27014
MM74HCT245N
A10U9207 156-1921-00
KICRXKT,DGTL:XTAL BUS XSCVR E/3-ST OUT •
27014
MM74tCT245N
A10U9208
156-2452-00
MICRXKT. DGTL: SEMI-CUSTOM. STD CELL
TK1856
VF4172
A10U9210
156-1638-00
MICRXKT,LINEAR:10 BIT HS.MULT.D/A CONV
06665
DAC-10GX
A10U9211
160-3586-00
MICRXKT,DSTL:G4TE ARRAY,PRGM
80009 160-3586-00
A10U9220
156-1638-00
MICRXKT,LINEARrlO BIT HS.KULT.D/A CONV
06665
DAC-10GX
A10U9231
156-1859-00
MICRXKT. DGTL:MOS.DYNAMIC RAM.SCRN
01295
TMS4416-15
A10U9232 156-1859-00
MICRXKT.DGTL:MOS.DYNAMIC RAM.SCRN
01295
TMS4416-15
A10U9233
156-1859-00
MICRXKT,DGTL:M0S.DYNAMIC RAM.SCRN
01295
TMS4416-15
A10U9301
156-2369-00
MICRXKT.DGTL:XT BFR/LINE DRVR W/3 ST OUT
04713
MC74HCTS41N
A10U3302
156-2369-00
MICRXKT.DGTL:XT BFR/LINE DRVR W/3 ST OUT
04713
MC74HCT541N
A10W2101
131-0566-00
BUS.CONDXTOR:DUMMY RES,0.094 X 0.225
24546 OMA 07
A10W2102
131-0566-00
BUS.CONDXTOR: DIMMY RES.0.094 X 0.225
24546 OMA 07
A10W2103
131-0566-00
BUS.CONDXTOR:DUMMY RES,0.094 X 0.225
24546 OMA 07
A10W2104
131-0566-00
BUS.CONDXTOR :DIM1Y RES.0.094 X 0.225
24546 OMA 07
A10W2105
131-0566-00
BUS.CONDXTOR:DUMMY RES.0.094 X 0.225
24546 OMA 07
A10W2107
131-0566-00
BUS,CONDXTOR:DUMMY RES.0.094 X 0.225
24546 OMA 07
A10W2203
131-0566-00
BUS,GONDXTOR:DUMMY RES.0.094 X 0.225
24546 OMA 07
A10W3234
131-0566-00
BUS,CONDXTOR:DUMMY RES.0.094 X 0.225
24546 OMA 07
A10W4100
179-2950-00
WIRING HARNESS'.STORAGE
80009
179-2950-00
A10W4200
131-0566-00
BUS,CONDXTOR:DUMMY RES,0.094 X 0.225
24546 OMA 07
A10W4201
131-0566-00
BUS,CONDXTOR:DUMMY RES,0.094 X 0.225
24 546 OMA 07
A10W9012
131-0566-00
BUS,CONDXTOR:DUMMY RES,0.094 X 0.225
24 546
OMA 07
A10W9013
131-0566-00
B010100
B021984
BUS, CONDXT OR: DUMMY RES,0.094 X 0.225
24 546
OMA 07
A10W9014
131-0566-00
BUS,CONDXTOR:DUMMY RES,0.094 X 0.225
24546
OMA 07
A10W9015
131-0566-00
BUS.CONDXTOR:DUMMY RES,0.094 X 0.225
24 546
OMA 07
A10W9016
131-0566-00
BUS,CONDXTOR:DUMMY RES,0.094 X 0.225
24546
OMA 07
A10W9017
131-3299-00
B010100
B021984 BUS,CONDXTOR:CKT BD,POWER DIST NETWORK
TK1884
1TEKQP03Z
A10,79018
131-0566-00
BUS,CONDXTOR:DUhMY RES,0.094 X 0.225
24546
OMA 07
8-40
REV MAY 1987
