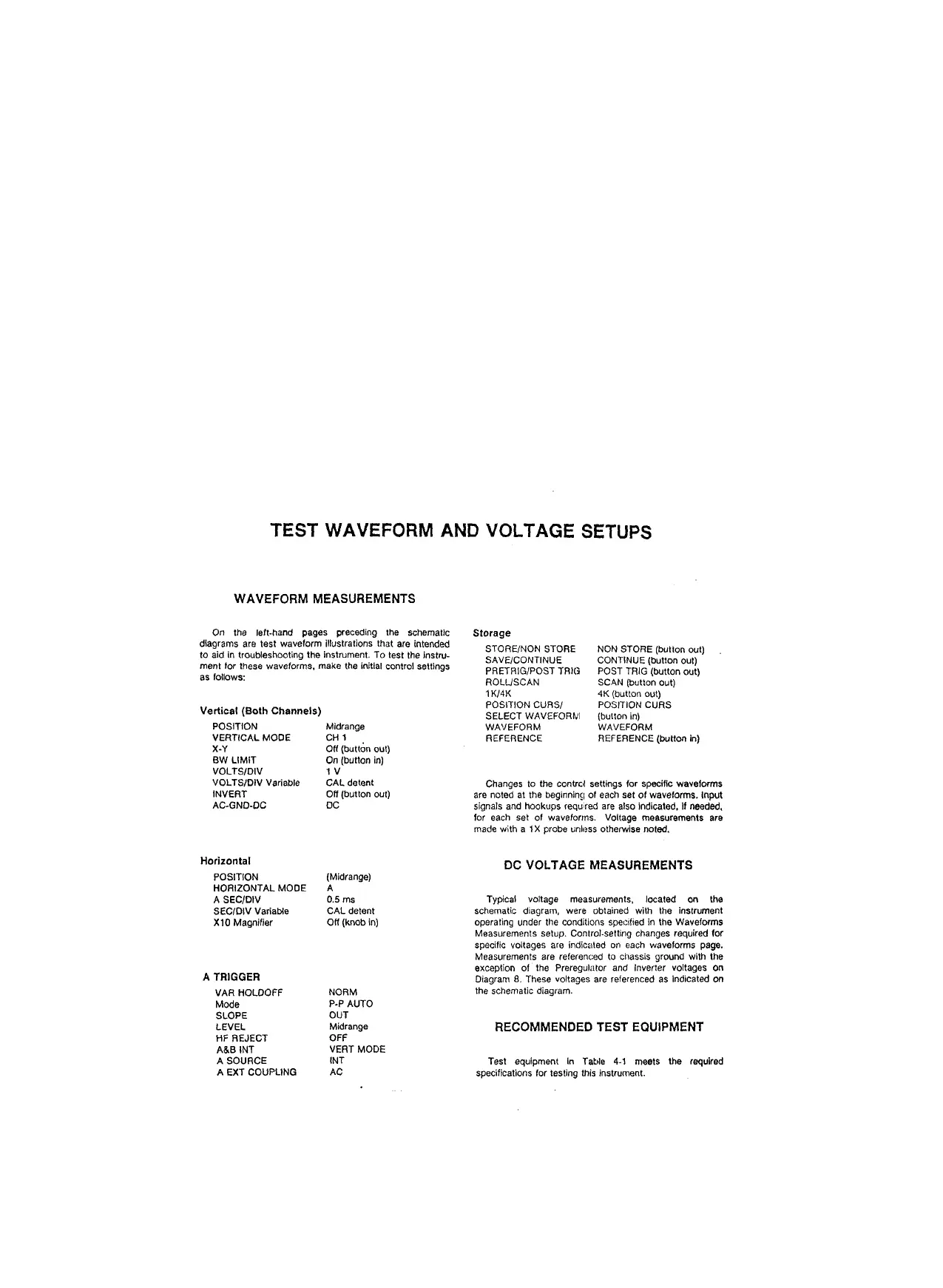

TEST WAVEFORM AND VOLTAGE SETUPS
WAVEFORM MEASUREMENTS
On the left-hand pages preceding the schematic
diagram s are test waveform illustrations that are intended
to aid in troubleshooting the instrument. To test the instru
ment for these waveform s, make the initial control settings
as follows:
Vertical (Both Channels)
P O SIT IO N
V E R TIC A L M OD E
X-Y
BW L IM IT
V O LT S /D IV
V O LT S /D IV Variable
IN V E R T
A C -G ND -D C
Midrange
CH 1
Off (button out)
On (button in)
1 V
CAL detent
Off (button out)
DC
Storage
STO R E /N O N STOR E
SA V E /C O N TIN U E
P R E T R IG /P O S T TRIG
RO L L /S C AN
1K /4K
PO S IT IO N C U R S /
SE L E C T W AVEFO R M
W AVEFO R M
REFERENCE
NON S TO R E (button out)
CO NTIN U E (button out)
PO ST TRIG (button out)
SCAN (button out)
4K (button out)
PO S ITIO N C U R S
(button in)
W AV EFO R M
REFE R E N C E (button in)
Changes to the control settings for specific waveforms
are noted at the beginning of each set of w aveform s. Input
signals and hookups required are also indicated, If needed,
for each set of waveforms. Voltage m easurements are
made with a IX probe unless otherwise noted.
Horizontal
P O SIT IO N (Midrange)
H O RIZ O NT A L M O D E A
A S E C /D IV 0.5 ms
S E C/D IV Variable C A L detent
X I 0 Magnifier Off (knob In)
A TRIGGER
VA R HOLD O FF
Mode
SLO P E
LEVEL
HF RE JECT
A&B I NT
A S O U R C E
A E XT CO UP LIN G
NO R M
P-P A U TO
OUT
Midrange
OFF
VE R T M O D E
INT
AC
DC VOLTAGE MEASUREMENTS
Typical voltage measurements, located on the
schematic diagram, w ere obtained with the instrument
operating under the conditions specified in the W aveform s
Measurem ents setup. Control-setting changes required for
specific voltages are indicated on each waveforms page.
Measurements are referenced to chassis ground w ith the
exception of the Preregulator and Inverter voltages on
Diagram 8. These voltages are referenced as Indicated on
the schematic diagram.
RECOMMENDED TEST EQUIPMENT
Test equipment in Table 4-1 m eets the required
specifications for testing this instrument.
