Tektronix 2230

A3—FRONT PANEL BOARD
2230 Service
4999-09

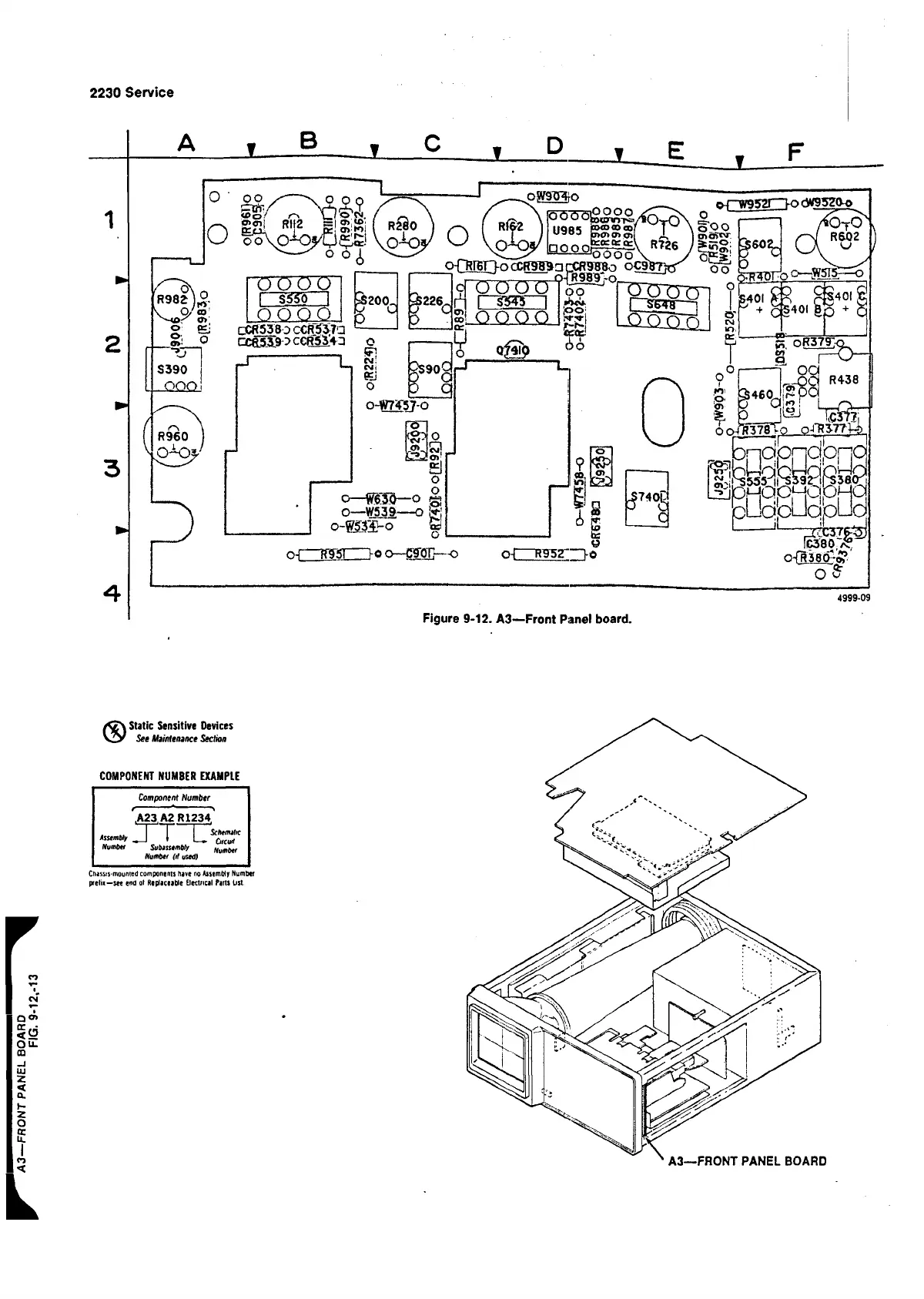

Figure 9-12. A3—Front Panel board.
Static Sensitive Devices
See Maintenance Section
COMPONENT NUMBER EXAMPLE
C o m p on en t N u m be r
,A23. A2 R1234
Assembly
Number
I T T
Subissembly
Number (if used)
Schemt*
Circuit
Number
Chissts-mounted components have no Assembly Number
prefix— see end ot Replaceable Electrical Parts List.
