Tektronix 2230

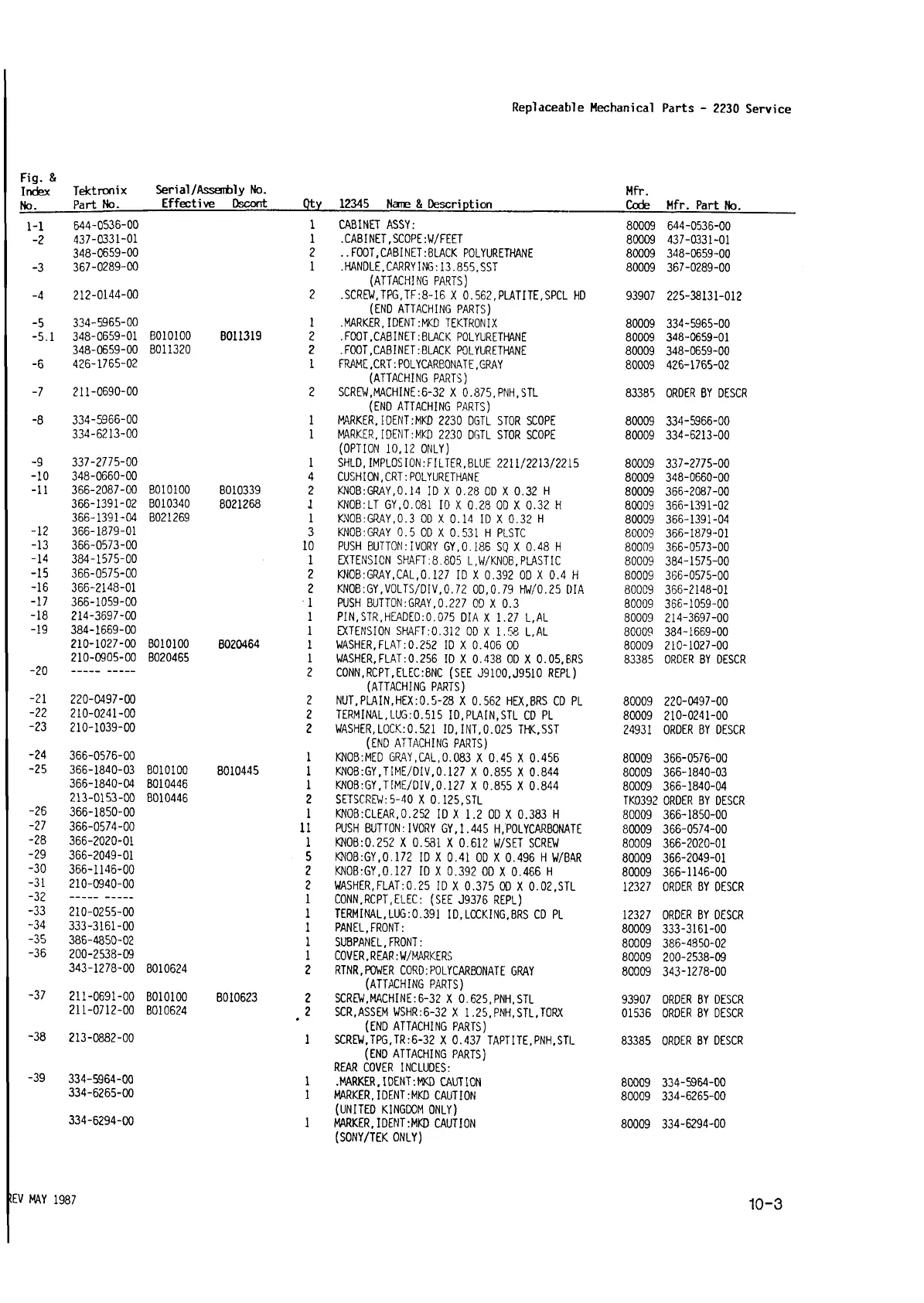

Replaceable Mechanical Parts - 2230 Service
F ig . &
Index
No.
T e k tro n ix
P a rt No.
S e ria l/A ss e m bly No.
E ffe c tiv e Dscont
___ S ix .
12345 Name & D e sc rip tio n
M fr.
Code
M fr. P a rt No.
1-1
644-0536-00 i CABINET ASSY:
80009
644-0536-00
-2
437-0331-01 i
.CAB I NET, SCOPE:W/FEET
80009 437-0331-01
348-0659-00 2
. . FOOT,CABINET:8LACK POLYURETHANE
80009
348-0659-00
-3
367-0289-00
1
.HANDLE. CARRY IN 6:1 3 .8 5 5,SST
80009 367-0289-00
(ATTACHING PARTS)
-4
212-0144-00
2
.SCREW,TPG,TF:8-16 X 0.562,PLATITE,SPCL HD
93907
225-38131-012
(END ATTACHING PARTS)
-5
334-5965-00
1
.MARKER,IDENT:MKD TEKTRONIX
80009 334-5965-00
-5 .1
348-0659-01
E010100
B011319 2
.FOOT,CABINET: BLACK POLYURETHANE
80009 348-0659-01
348-0659-00 B011320
2
,FOOT,CABINET:BLACK POLYURETHANE
80009
348-0659-00
-6
426-1765-02
1
FRAME,CRT: POLYCARBONATE.GRAY
80009 426-1765-02
(ATTACHING PARTS)
-7
211-0690-00
2
SCREW,MACHINE:6-32 X 0 .8 7 5 ,PNH,STL
83385 ORDER BY DESCR
(END ATTACHING PARTS)
-8
334-5966-00
1
MARKER.IDENT:MKD 2230 DGTL STOR SCOPE
80009 334-5966-00
334-6213-00
1
MARKER,I DENT:MKD 2230 DGTL STOR SCOPE
80009 334-6213-00
(OPTION 10,12 ONLY)
-9
337-2775-00
1
SHLD,IMPLOSION:FILTER,BLUE 2211/2213/2215
80009 337-2775-00
-10
348-0660-00
4
CUSHION, CRT: POLYURETHAN E
80009
348-0660-00
-11
366-2087-00 8010100
B010339
2
KN08:GRAY,0.14 ID X 0.2 8 OD X 0.32 H
80009
366-2087-00
366-1391-02 B010340
B021268
1
KNOB: LT GY,0.081 ID X 0.28 00 X 0 .32 H
80009
366-1391-02
366-1391-04
B021269
1
KNOB:GRAY,0 .3 OD X 0.14 ID X 0.32 H
80009 366-1391-04
-12
366-1879-01
3
KNOB:GRAY 0 .5 OD X 0.531 H PLSTC
80009 366-1879-01
-13 366-0573-00
10
PUSH BUTTON:IVORY G Y ,0 .186 SQ X 0.48 H
80009
366-0573-00
-14
384-1575-00
1
EXTENSION SHAFT:8.805 L,W/KN0B,PLASTIC
80009 384-1575-00
-15
366-0575-00
2
KN0B:GRAY,CAL,0.127 ID X 0.392 OD X 0 .4 H
80009 366-0575-00
-16 366-2148-01
2
KN0B:GY,V0LTS/DIV,0.72 0D .0.79 HW/0.25 DIA
80009
366-2148-01
-17
366-1059-00
1
PUSH BUTTON:GRAY,0.227 OD X 0 .3
80009
366-1059-00
-18 214-3697-00
1
PIN.STR,HEADED:0.075 DIA X 1.27 L,AL
80009 214-3697-00
-19
384-1669-00
1
EXTENSION SHAFT:0.312 OD X 1.58 L,AL
80009 384-1669-00
210-1027-00
B010100 B020464
1
WASHER,FLAT:0.252 ID X 0.406 OD
80009 210-1027-00
210-0905-00
B020465
1
WASHER,FLAT:0.256 ID X 0 .438 OD X 0.05.BRS
83385
ORDER BY DESCR
-20
2
CONN,RCPT,ELEC:BNC (SEE J9100.J9510 REPL)
(ATTACHING PARTS)
-21
220-0497-00
2
NUT,PLAIN,HEX:0.5-28 X 0.562 HEX.BRS CD PL
80009 220-0497-00
-22
210-0241-00
2
TERMINAL,LUG:0.515 ID,PLAIN,STL CD PL
80009 210-0241-00
-23
210-1039-00
2
WASHER,LOCK:0.521 ID ,IN T ,0.025 THK.SST
24931
ORDER BY DESCR
(END ATTACHING PARTS)
-24
366-0576-00
1
KNOB:MED GRAY,CAL,0.083 X 0.45 X 0.456
80009
366-0576-00
-25
366-1840-03
B010100
B010445
1
KNOB:GY,TIM E/DIV,0.127 X 0.855 X 0.844
80009 366-1840-03
366-1840-04
B010446
1
KNOB:GY,TIME/DIV,0.127 X 0.855 X 0.844
80009 366-1840-04
213-0153-00
B010446
2
SETSCREW:5-40 X 0 .1 2 5 ,STL
TK0392
ORDER BY DESCR
-26
366-1850-00
1
KN08:CLEAR,0.252 ID X 1.2 00 X 0.383 H
80009 366-1850-00
-27
366-0574-00
11
PUSH BUTTON:IVORY GY,1.445 H,POLYCARBONATE
80009 366-0574-00
-28
366-2020-01
1
KNOB:0.252 X 0.581 X 0.612 W/SET SCREW
80009 366-2020-01
-29
366-2049-01
5
KNOB:GY,0 .172 ID X 0.41 OD X 0.496 H W/BAR
80009
366-2049-01
-30
366-1146-00
2
KNOB:GY,0 .127 ID X 0.392 00 X 0.466 H
80009 366-1146-00
-31
210-0940-00
2
WASHER,FLAT:0 .25 ID X 0.375 OD X 0 .0 2 ,STL
12327 ORDER BY DESCR
-32
1
CONN,RCPT,ELEC: (SEE J9376 REPL)
-33
210-0255-00
1
TERMINAL,LUG:0.391 ID,LOCKING,BRS CD PL
12327
ORDER BY DESCR
-34
333-3161-00
1
PANEL,FRONT:
80009
333-3161-00
-35
386-4850-02
1
SUBPANEL,FRONT:
80009 386-4850-02
-36
200-2538-09
1
COVER.REAR:W/MARKERS
80009 200-2538-09
343-1278-00
B010624
2
RTNR,POWER CORD:POLYCARBONATE GRAY
80009 343-1278-00
(ATTACHING PARTS)
-37
211-0691-00
B010100
B010623
2
SCREW,MACHINE:6-32 X 0 .6 2 5 ,PNH,STL
93907 ORDER BY DESCR
211-0712-00
B010624
2
SCR,ASSEM WSHR:6-32 X 1 .2 5 ,PNH.STL.TORX
01536 ORDER BY DESCR
(END ATTACHING PARTS)
-38
213-0882-00
1
SCREW.TPG,TR:6-32 X 0.437 TAPTITE,PNH,STL
83385
ORDER BY DESCR
(END ATTACHING PARTS)
REAR COVER INCLUDES:
-39
334-5964-00
1
•MARKER, IDENT-.MKD CAUTION
80009
334-5964-00
334-6265-00
1
MARKER,IDENT:MKD CAUTION
80009
334-6265-00
(UNITED KINGDOM ONLY)
334-6294-00
1
MARKER,IDENT:MKD CAUTION
80009
334-6294-00
(SONY/TEK ONLY)
!EV MAY 1987
1 0 - 3
