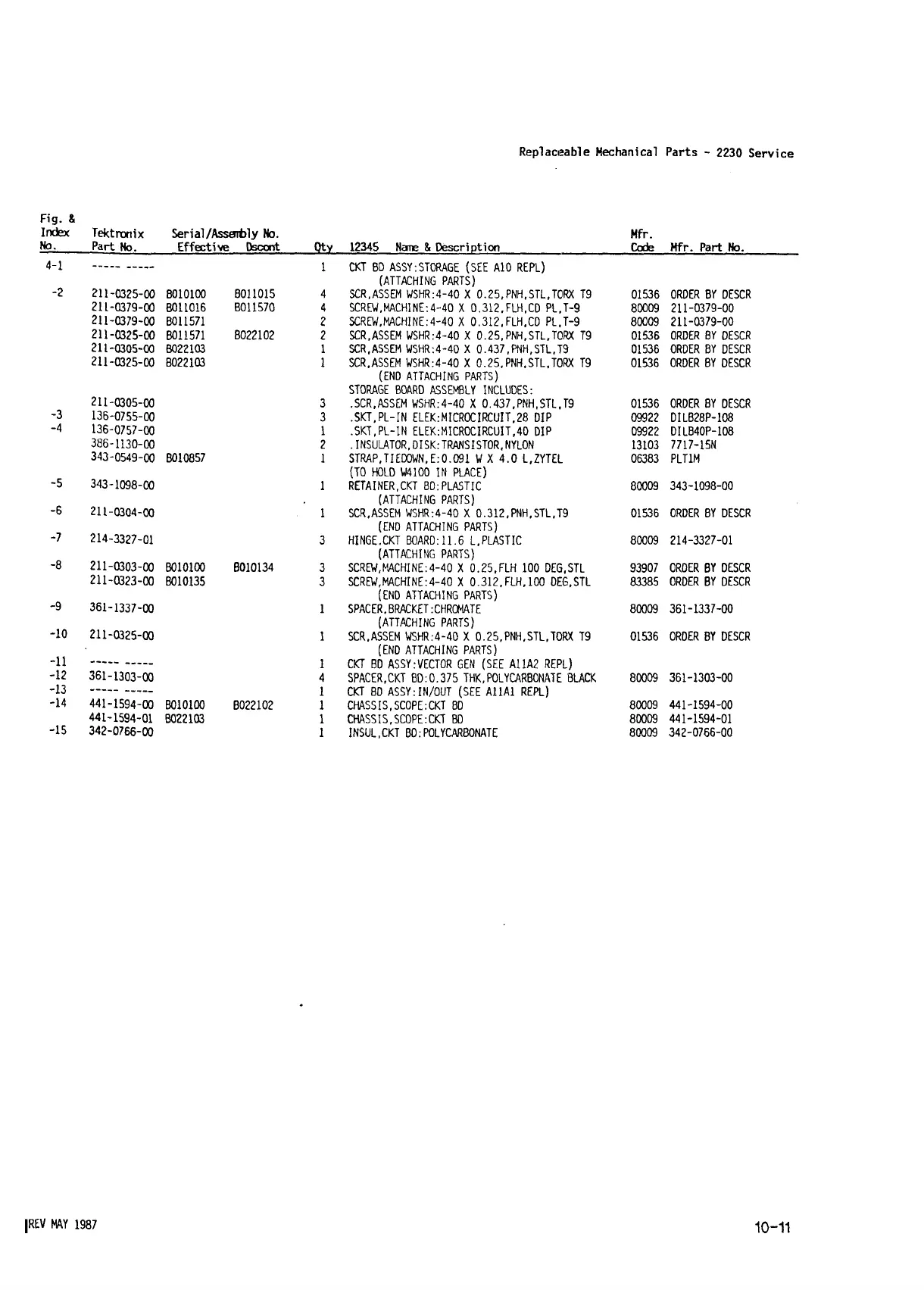

Replaceable Mechanical Parts - 2230 Service
F ig . &
Index
No.
T e ktro n ix
P a rt No.
S e ria l/A s s a ito ly No.
E ffe c tiv e Dscont
O tv
12345 Name & D e s c rip tio n
M fr.
Code M fr. P a rt No.
4-1
1
CKT BD ASSY: STORAGE (SEE A10 REPL)
(ATTACHING PARTS)
-2
311-0325-00
8010100 B011015 4
SCR.ASSEM WSHR:4-40 X 0.25,PNH,STL,T0RX T9
01536 ORDER BY DESCR
211-0379-00 BQ11016
B011570 4
SCREW,MACHINE:4-40 X 0.312,FIH ,C D PL.T-9 80009
211-0379-00
211-0379-00
B011571
2 SCREW,MACHINE:4-40 X 0 .3 1 2 ,FLH.CD PL.T-9 80009 211-0379-00
211-0325-00
B011571
B022102 2 SCR.ASSEM WSHR:4-40 X 0.25,PNH,STL,T0RX T9 01536 ORDER BY DESCR
211-0305-00 B022103 1
SCR.ASSEM WSHR:4-40 X 0.437,PNH,STL,T9 01536 ORDER BY DESCR
211-0325-00
B022103
1 SCR.ASSEM WSHR:4-40 X 0.25,PNH,STL,TORX T9 01536
ORDER BY DESCR
(END ATTACHING PARTS)
STORAGE BOARD ASSEMBLY INCLUDES:
211-0305-00 3
.SCR.ASSEM WSHR:4-40 X 0.437.P N H .S TL.T9 01536 ORDER 8Y DESCR
-3
136-0755-00 3 .SKT.PL-IN ELEK:MICR0CIRCUIT,28 DIP
09922 DILB28P-108
-4
136-0757-00 1
.SKT.PL-IN ELEK:MICROCIRCUIT,40 DIP
09922
DILB40P-108
386-1130-00 2
. INSULATOR, DISK:TRANS ISTOR, NYLON 13103
7717-15N
343-0549-00
B010857
1
STRAP,TIEDOWN.E:0.091 W X 4 .0 L.ZYTEL 06383
PLT1M
(TO HOLD W4100 IN PLACE)
-5
343-1098-00
1 RETAINER,CKT BD:PLASTIC 80009 343-1098-00
(ATTACHING PARTS)
-6
211-0304-00
1 SCR.ASSEM WSHR:4-40 X 0.312,PNH,STL.T9 01536 ORDER BY DESCR
(END ATTACHING PARTS)
-7
214-3327-01
3 HINGE.CKT BOARD:11.6 L.PLASTIC 80009 214-3327-01
(ATTACHING PARTS)
-8
211-0303-00 B010100
B010134
3
SCREW,MACHINE:4-40 X 0.25.FLH 100 DEG,STL 93907 ORDER BY DESCR
211-0323-00
B010135 3 SCREW,MACHINE:4-40 X 0 .3 1 2 ,FLH,100 DEG,STL 83385
ORDER BY DESCR
(END ATTACHING PARTS)
-9
361-1337-00 1 SPACER.BRACKET:CHROMATE 80009 361-1337-00
(ATTACHING PARTS)
-10
211-0325-00
1 SCR.ASSEM WSHR:4-40 X 0.2S,PNH,STL,T0RX T9 01536 ORDER BY DESCR
(END ATTACHING PARTS)
-11
1 CKT BD ASSY .-VECTOR GEN (SEE A11A2 REPL)
-12
361-1303-00
4
SPACER,CKT 0 0 :0 .3 7 5 THK,POLYCARBONATE BUCK
80009 361-1303-00
-13
1 CKT BD ASSY:IN/OUT (SEE A11A1 REPL)
-14
441-1594-00
B010100 B022102
1
CHASSIS,SC0PE:CKT BD
80009
441-1594-00
441-1594-01
B022103
1 CHASSIS,SCOPE:CKT BD
80009
441-1594-01
-15
342-0766-00
1
INSUL,CKT BO:POLYCARBONATE
80009
342-0766-00
|REV MAY 1987
10-11
