AIR
FORCE T033A1-13-496-1
NAVELEX
0969-LP-170-0010
Maintenance Instructions
CABLE
COAXIAL
CONNECTOR
BNC
CABLE
lock
connector
WHEN REMOVING
OR INSERTING
COAXIAL
CABLE END INTO CABLE
CONNECTOR.

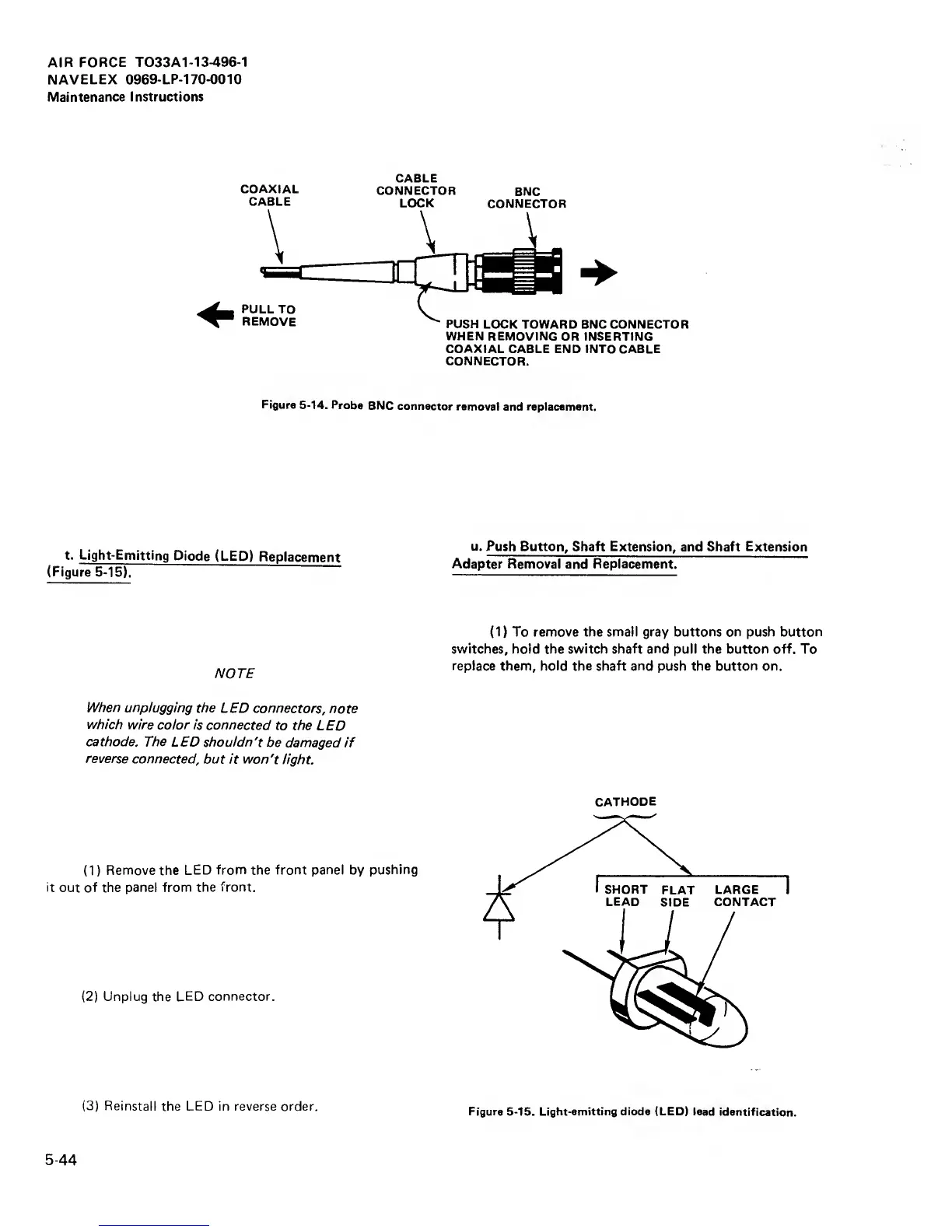

Figure
5-14.
Probe
BNC
connector
removal
and
replacement.
t. Light-Emitting
Diode (LED)
Replacement
(Figure
5-15).
NOTE
When unplugging
the
LED connectors,
note
which
wire color is connected
to the
LED
cathode. The
LED shouldn't
be damaged
if
reverse
connected,
but it won't
light.
(
1 )
Remove the
LED from the front
panel
by
pushing
it
out of the panel from
the
front.
(2)
Unplug the LED
connector.
u. Push
Button, Shaft Extension,
and Shaft
Extension
Adapter Removal
and
Replacement.
(1)
To remove the small gray buttons on push button
switches, hold the switch
shaft and
pull the button off. To
replace them, hold the shaft and
push
the button
on.
CATHODE
(3)
Reinstall
the
LED
in reverse order.
5.,5
Light-emitting diode (LED) lead
identification.
5-44
