AIR
FORCE
T033A1
-13-496-1
NAVELEX
0969-LP-1
70-0010
Maintenance
Instructions

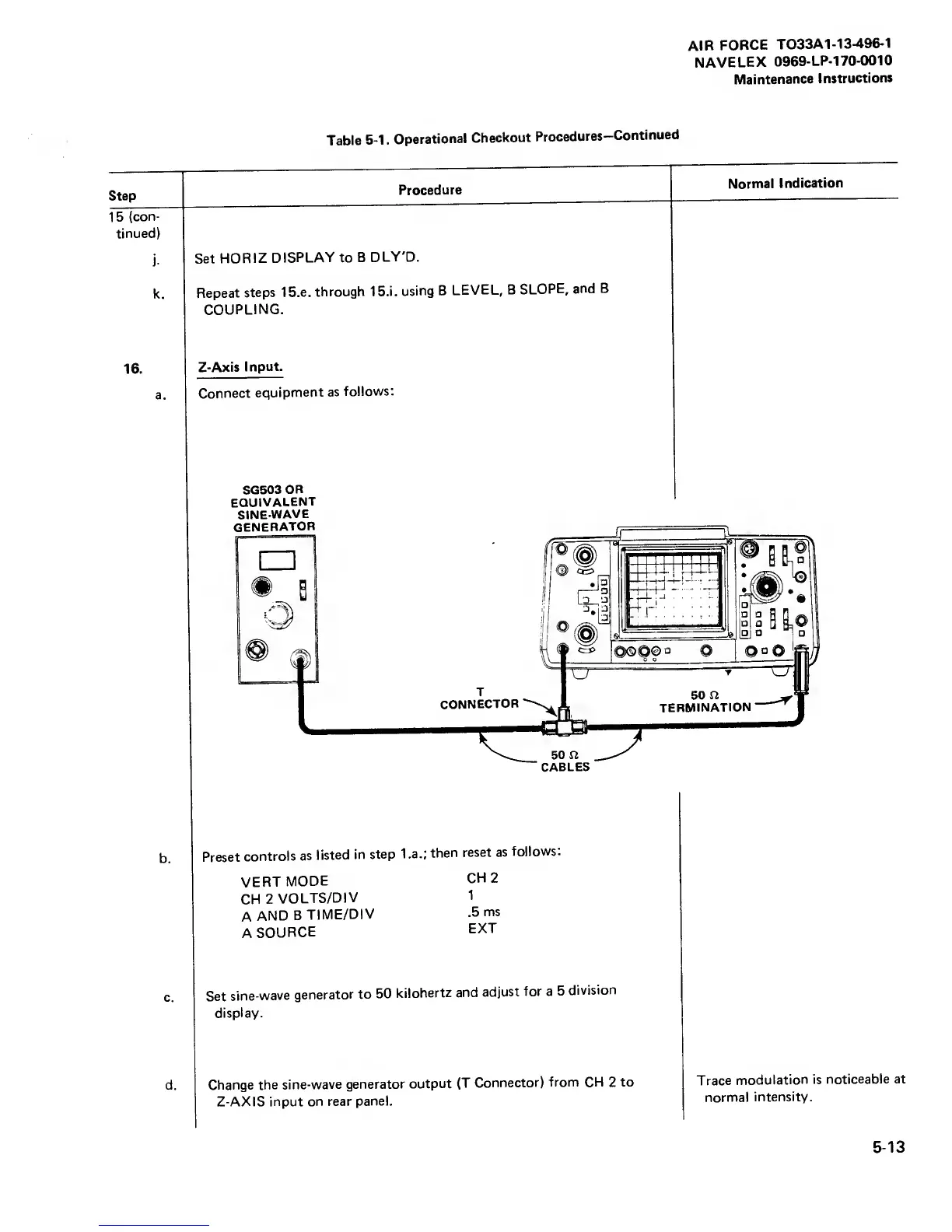

Table
5-1
.
Operational
Checkout
Procedures—
Continued
Step
1
5
(con-
tinued)
Procedure
Normal
Indication
j.
k.
Set
HORIZ
DISPLAY to
B
DLY'D.
Repeat
steps
15.e.
through
15.i.
using B
LEVEL,
B
SLOPE,
and B
COUPLING.
16.
a.
Z-Axis
Input.
Connect
equipment
as
follows:
SGS03
OR
EQUIVALENT
SINE-WAVE
b.
Preset
controls
as
listed
in
step
1 .a.;
then
reset
as
follows;
VERT
MODE
CH 2
CH2VOLTS/DIV
1
A
AND
B
TIME/DIV
.5
ms
A
SOURCE
ext
Set
sine-wave
generator
to
50
kilohertz
and
adjust
for a
5
division
display.
d. Change the
sine-wave
generator
output
(T
Connector)
from
CH 2
to
Z-AXIS
input on rear
panel.
Trace
modulation
is
noticeable at
normal
intensity.
5-13
