AIR
FORCE T033A1-13-496-1
NAVELEX
0969-LP-170-0010
Maintenance
Instructions

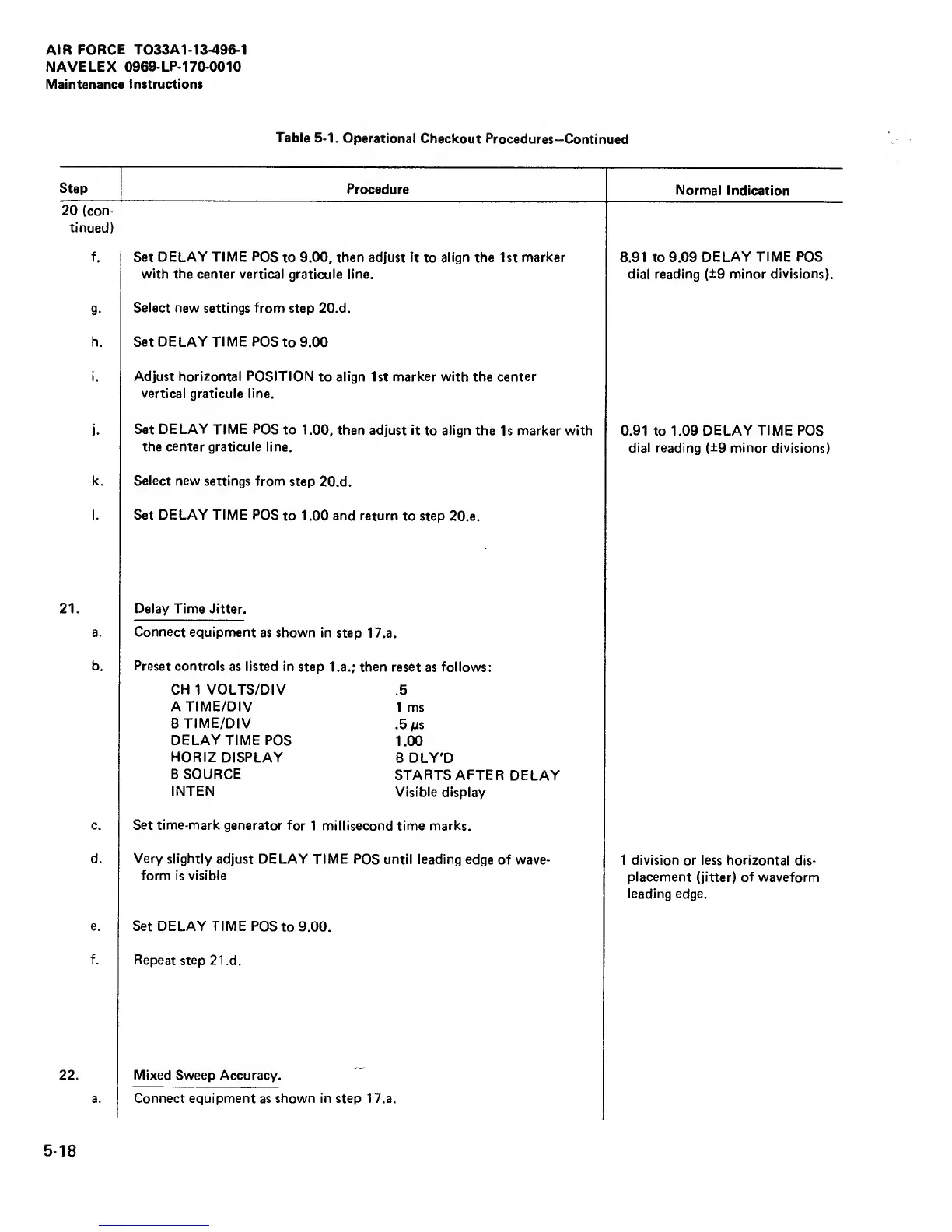

Table
5-1.
Operational
Checkout
Procedures—
Continued
Step
Procedure
Normal Indication
20
(con-
tinued)
f. Set DELAY TIME
POS
to
9.00,
then adjust it
to
align the 1st marker
with the
center vertical graticule line.
8.91 to 9.09
DELAY TIME POS
dial reading (±9 minor
divisions).
9-
Select new
settings from step 20.d.
h. Set DELAY TIME
POS to 9.00
i. Adjust horizontal POSITION
to
align
1st
marker
with the
center
vertical
graticule
line.
j.
Set
DELAY
TIME POS
to 1
.00,
then adjust it
to
align
the Is marker with
the
center
graticule line.
0.91
to 1.09
DELAY TIME POS
dial reading
(±9
minor
divisions)
k. Select new
settings from
step
20.d.
1 . Set
DELAY
TIME POS
to 1 .00
and
return
to
step 20.e.
21.
Delay
Time Jitter.
a.
Connect
equipment
as shown in step
17.a.
b. Preset controls
as listed in step
l.a.; then reset
as
follows;
CH
1 VOLTS/DIV
.5
ATIME/DIV
1ms
BTIME/DIV
.5/iS
DELAY
TIME POS
1.00
HORIZ DISPLAY
B DLY'D
B SOURCE
STARTS AFTER
DELAY
INTEN
Visible display
c. Set time-mark
generator for
1 millisecond time marks.
d. Very slightly
adjust DELAY TIME
POS until leading edge
of wave-
form is visible
1 division or less horizontal
dis-
placement (jitter) of
waveform
leading edge.
e.
Set DELAY TIME
POS
to 9.00.
f.
Repeat step
21.d.
22.
Mixed
Sweep Accuracy.
a. Connect equipment as shown in step 17.
a.
5-18
