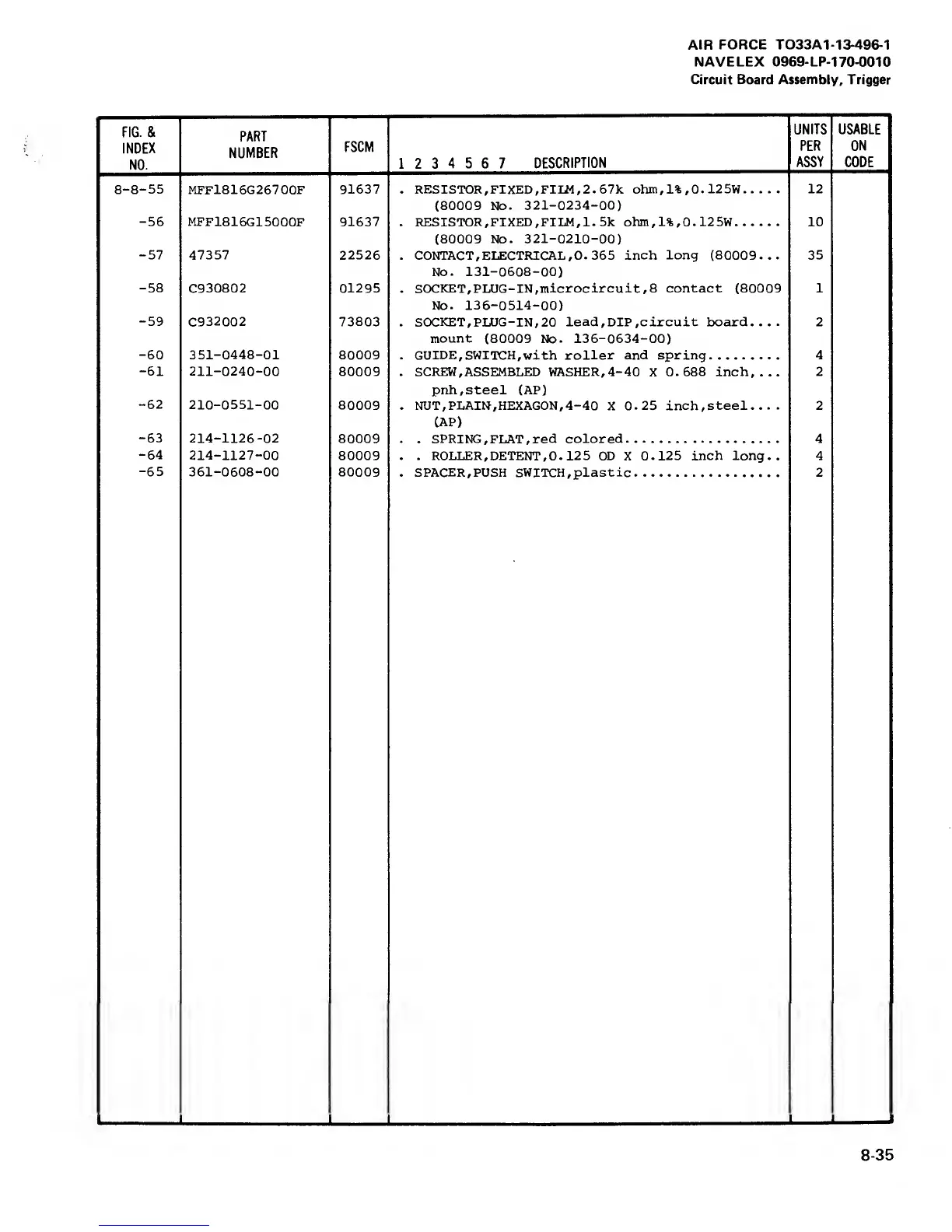

Tektronix 465M User Manual

AIR FORCE T033A1-13-496-1
NAVELEX 0969-LP-170-0010
Circuit Board
Assembly,
Trigger
FIG. &
INDEX
NO.
PART
NUMBER
FSCM
8-8-55
MFF1816G26700F
91637
-56
MFF1816G15000F 91637
-57
47357 22526
-58
C930802
01295
-59
C932002
73803
-60
351-0448-01
80009
-61
211-0240-00
80009
-62
210-0551-00
80009
-63
214-1126-02
80009
-64
214-1127-00
80009
-65
361-0608-00
80009
1 2 3
4 5 6 7
DESCRIPTION
I
UNITS
I
PER
ASSY
USABLE
ON
CODE
RESISTOR, FIXED, FILM,
2.
67k
ohm,
1%
,
0.
125W
(80009 No.
321-0234-00)
RESISTOR,FIXED,FILM,l.
5k
ohm,
1%
,0.
125W
(80009 No.
321-0210-00)
CONTACT,ELECTRICAL,0. 365
inch long
(80009...
NO.
131-0608-00)
SOCKET,
PLUG-IN,
microcircuit, 8 contact
(80009
No.
136-0514-00)
SOCKET, PLUG-IN,
20
lead
,
DIP , circuit board....
mount
(80009 No.
136-0634-00)
GUIDE, SWITCH,
with
roller and spring
SCREW, ASSEMBLED WASHER,
4-40
X
0.688
inch,...
pnh, steel (AP)
NUT, PLAIN-,HEXAGON,
4-40
X
0.25 inch
,
steel
... .
(AP)
.
SPRING,
FLAT,
red colored
. R0LLER,DETENT,0. 125
OD X
0.125 inch long..
SPACER,
PUSH SWITCH,
plastic
12
10
35
1
2
4
2
8-35
