Tektronix 465M User Manual

AIR FORCE
T033A1-13-496-1
NAVELEX
0969
LP-170-0010
Maintenance
Instructions
Table
5-1.
Operational
Checkout
Procedures-Continued
Step
14
(con-
tinued)
q.
Set
HORIZ
DISPLAY
to A.
Procedure
Normal
Indication
Repeat
step
14.j.
using
A LEVEL,
A
COUPLING,
and
A
SOURCE.

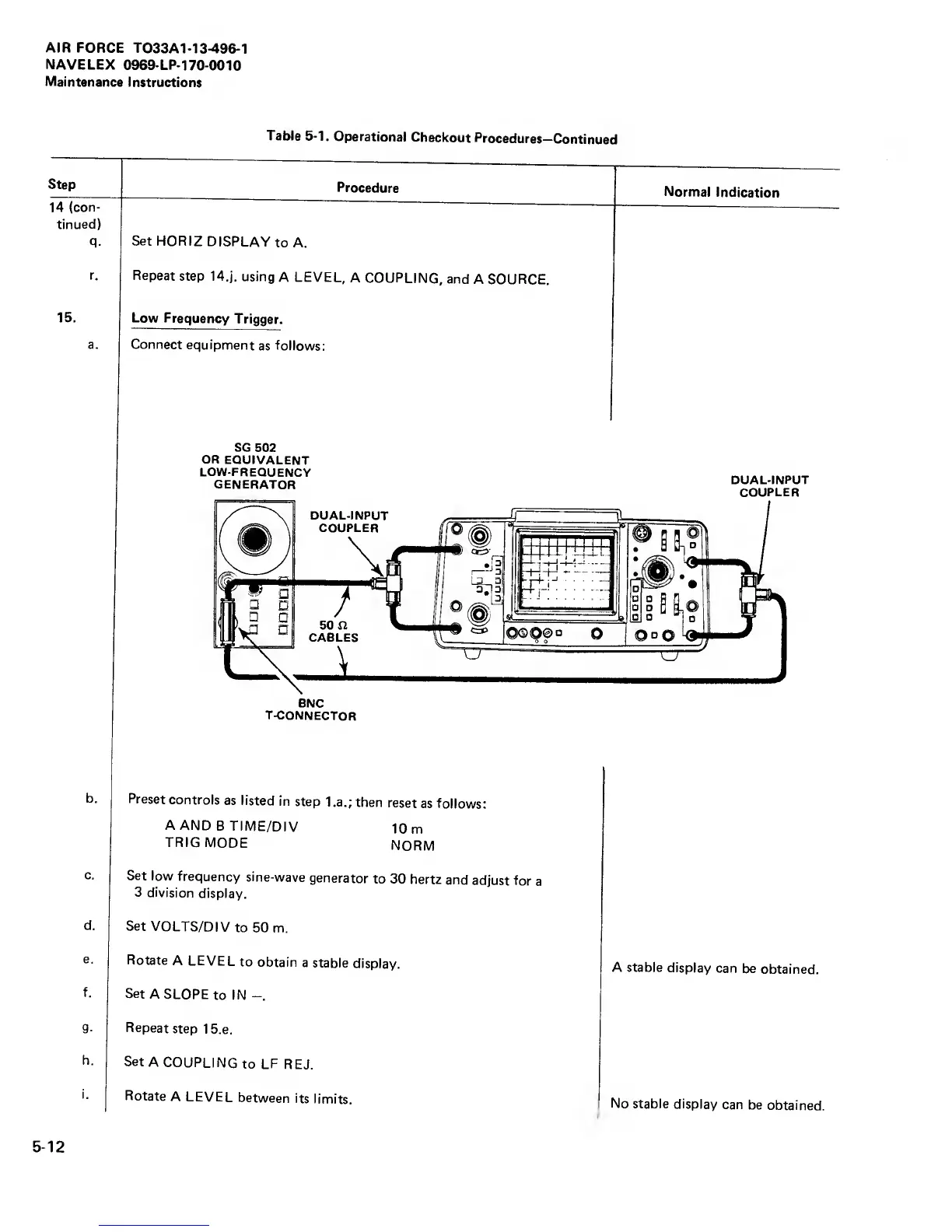

15. Low
Frequency
Trigger.
Connect
equipment
as follows:
SG
502
OR
EQUIVALENT
LOW-FREQUENCY
GENERATOR
DUAL-INPUT
COUPLER
T-CONNECTOR
Preset
controls
as listed
in
step
l.a.;
then
reset
as
follows:
A
AND
B
TIME/DIV
10
m
TRIG
MODE
NORM
Set
low
frequency
sine-wave
generator
to 30
hertz
and
adjust
for
a
3
division
display.
d.
Set
VOLTS/DIV
to
50 m.
Rotate
A
LEVEL
to
obtain
a
stable
display.
f.
Set
ASLOPEto
IN
-.
9
-
Repeat
step
1
5.e.
A
stable
display
can
be
obtained.
h.
Set
A
COUPLING
to LF
REJ.
Rotate
A
LEVEL
between
its
limits.
No
stable
display
can
be
obtained.
5-12
