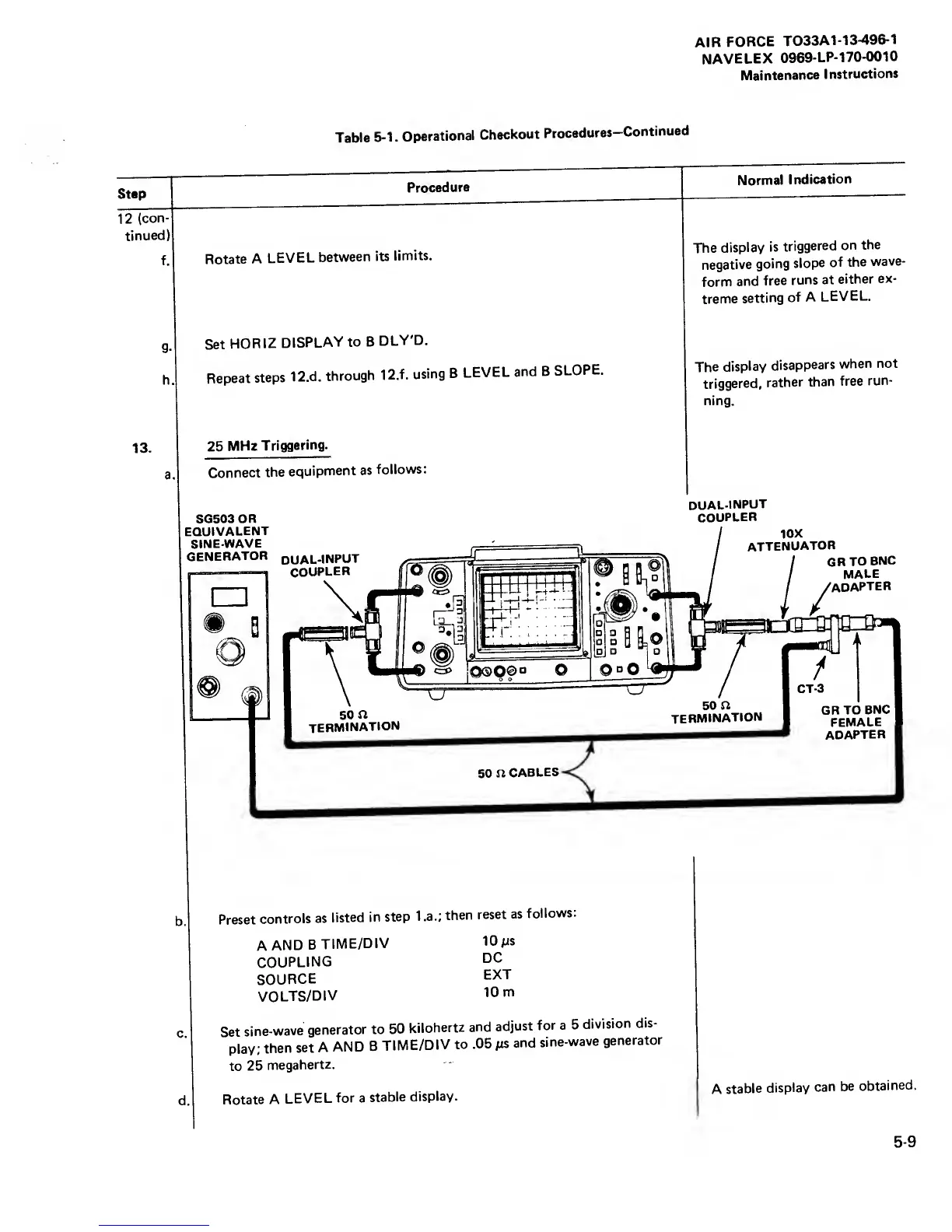

Tektronix 465M User Manual

AIR
FORCE
T033A1
-13-496-1
NAVELEX
0969-LP-170-0010
Maintenance
Instructions
Table
5-1.
Operational
Checkout
Procedures-Continued
Step
12
(con-
tinued)
Procedure
f.
Rotate
A
LEVEL
between
its
limits.
Normal
Indication
The
display
is
triggered
on
the
negative
going
slope
of
the
wave-
form
and
free
runs
at
either
ex-
treme
setting
of
A
LEVEL.
Set
HORIZ
DISPLAY
to B
DLY'D.
Repeat
steps
12.d.
through
12.f.
using
B
LEVEL
and
B
SLOPE.
The
display
disappears
when
not
triggered,
rather
than
free
run-
ning.
13.
25
MHz
Triggering.
Connect
the
equipment
as
follows:
SG503
OR
EQUIVALENT
SINE-WAVE
GENERATOR
DUAL-INPUT
COUPLER
10X
ATTENUATOR
GR
TO
BNC
MALE
adapter
b.
Preset
controls
as
listed
in
step
l.a.;
then
reset
as
follows:
A
AND
BTIME/DIV
COUPLING
SOURCE
VOLTS/D
IV
10
MS
DC
EXT
10m
Set
sine-wave
generator
to
50
kilohertz
and
adjust
for a
5
division
dis-
play;
then
set A
AND
B
TIME/DIV
to .05
ms
and
sine-wave
generator
to
25
megahertz.
d.
Rotate
A
LEVEL
for a
stable
display.
A
stable
display
can
be
obtained.
5-9
