AIR
FORCE
T033A1-13-496-1
NAVELEX
0969-LP-170-0010
Maintenance
Instructions

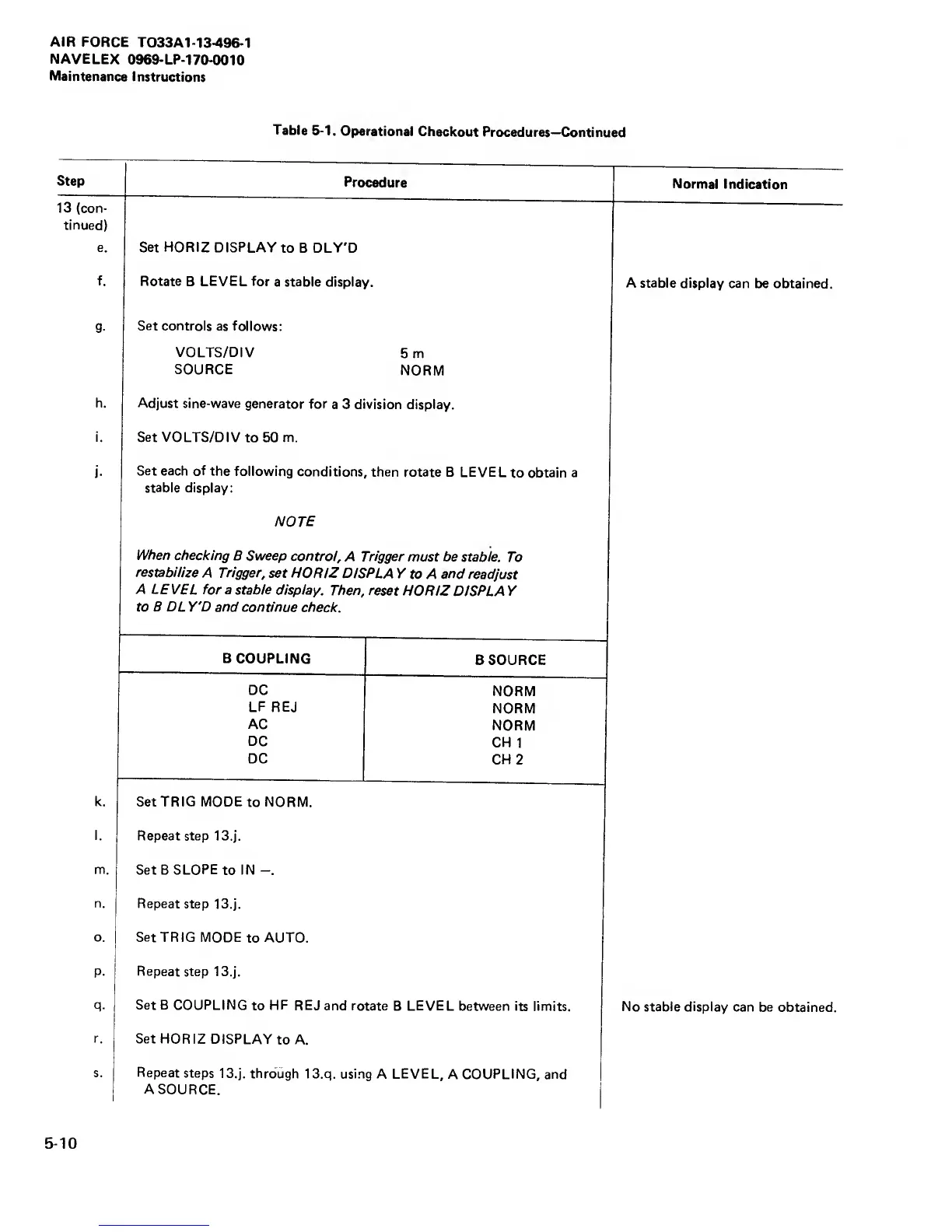

Table
5-1.
Operational
Checkout
Procedures—
Continued
Step
Procedure
Normal
Indication
13
(con-
tinued)
e. Set HORIZ
DISPLAY
to B
DLY'D
f.
Rotate
B
LEVEL for
a stable display.
A stable display
can be obtained.
g-
Set
controls
as follows:
VOLTS/D
IV
5 m
SOURCE
NORM
h. Adjust
sine-wave
generator for
a 3
division
display.
i-
Set VOLTS/DIVto50m.
j-
Set
each of the following
conditions,
then
rotate B LEVEL
to
obtain
a
stable display:
NOTE
When
checking
B Sweep control,
A Trigger
must be stable.
To
restabilize
A
Trigger,
set
HORIZ
DISPLA Y
to
A
and readjust
A LEVEL for a
stable display.
Then, reset
HORIZ DISPLAY
to B DL Y'D and
continue
check.
B
COUPLING
B SOURCE
DC
NORM
LF
REJ
NORM
AC
NORM
DC
CH
1
DC
CH2
k.
Set TRIG MODE
to
NORM.
1
. Repeat step
13.].
m.
Set B
SLOPE
to
IN
n.
Repeat
step
13.j.
0.
Set TRIG MODE
to
AUTO.
p-
Repeat step
13.].
q-
Set B COUPLING
to
HF
REJ
and rotate
B
LEVEL
between its limits.
No stable
display can be
obtained.
r.
Set HORIZ
DISPLAY
to A.
s. Repeat
steps
13.].
through
13. q.
using
A
LEVEL,
A
COUPLING, and
A
SOURCE.
5-10
