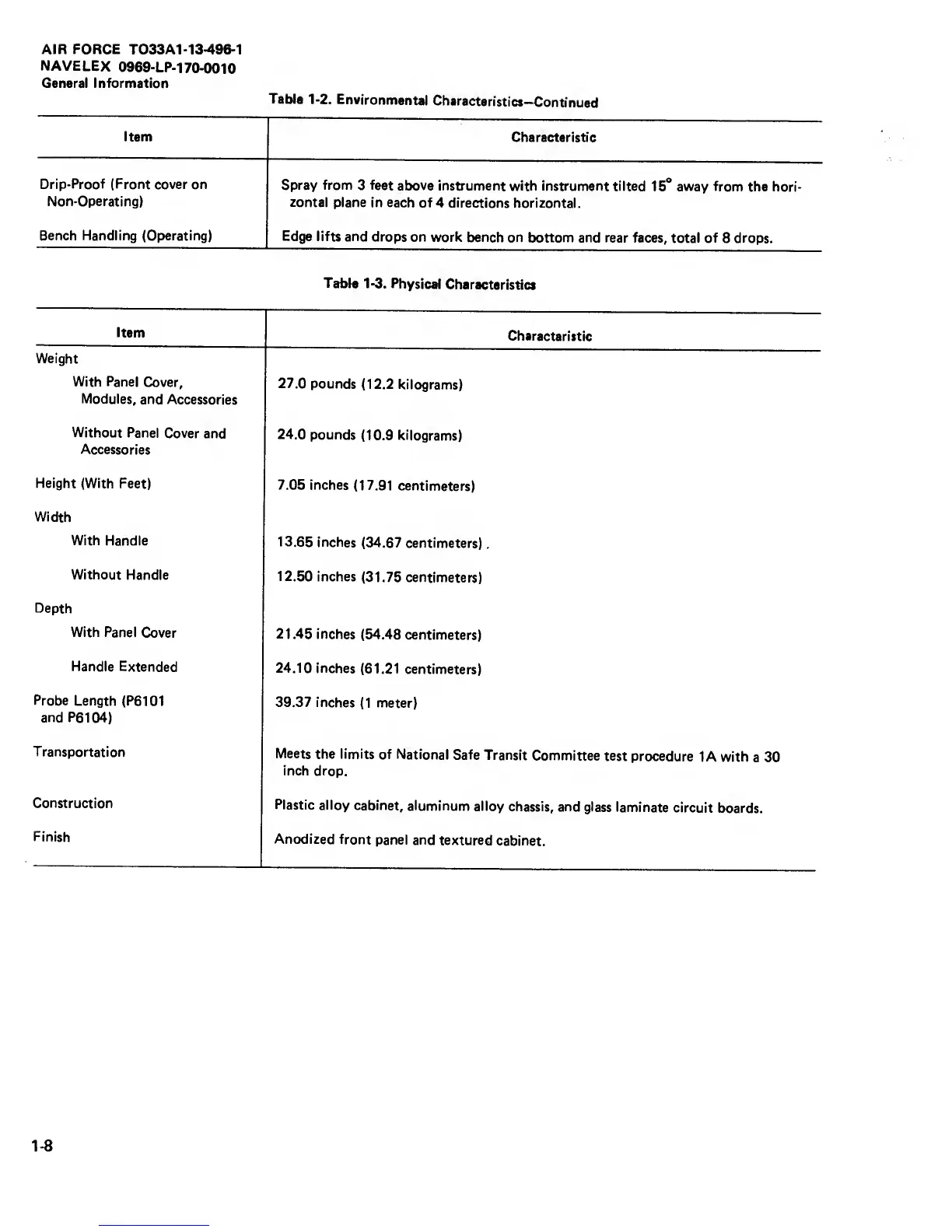

General Information
Table 1-2.
Environmental
Characteristics-Continued
Item
Characteristic
Drip-Proof (Front cover on
Non-Operating)
Spray from
3 feet above
instrument
with
instrument
tilted
15“
away
from the
hori-
zontal
plane in each
of 4
directions horizontal.
Bench Handling (Operating)
Edge lifts and
drops
on work
bench on bottom and rear
faces, totai of
8 drops.
Table
1-3.
Physical
Characteristics
Item
Characteristic
Weight
With Panel
Cover,
Modules,
and
Accessories
27.0 pounds
(12.2 kilograms)
Without
Panel
Cover
and
Accessories
24.0 pounds
(10.9 kilograms)
Height (With
Feet)
7.05
inches
(17.91 centimeters)
Width
With
Handle
13.65 inches
(34.67 centimeters)
,
Without
Handle
12.50
inches
(31.75 centimeters)
Depth
With
Panel
Cover
21.45 inches
(54.48 centimeters)
Handle
Extended
24.10
inches
(61.21 centimeters)
Probe
Length (P6101
and P6104)
39.37 inches
(1
meter)
Transportation
Meets
the limits
of
National Safe
Transit
Committee test
procedure
1 A with
a 30
inch
drop.
Construction
Plastic
alloy
cabinet,
aluminum
alloy
chassis, and
glass
laminate
circuit
boards.
Finish
Anodized
front
panel and
textured
cabinet.
1-8
